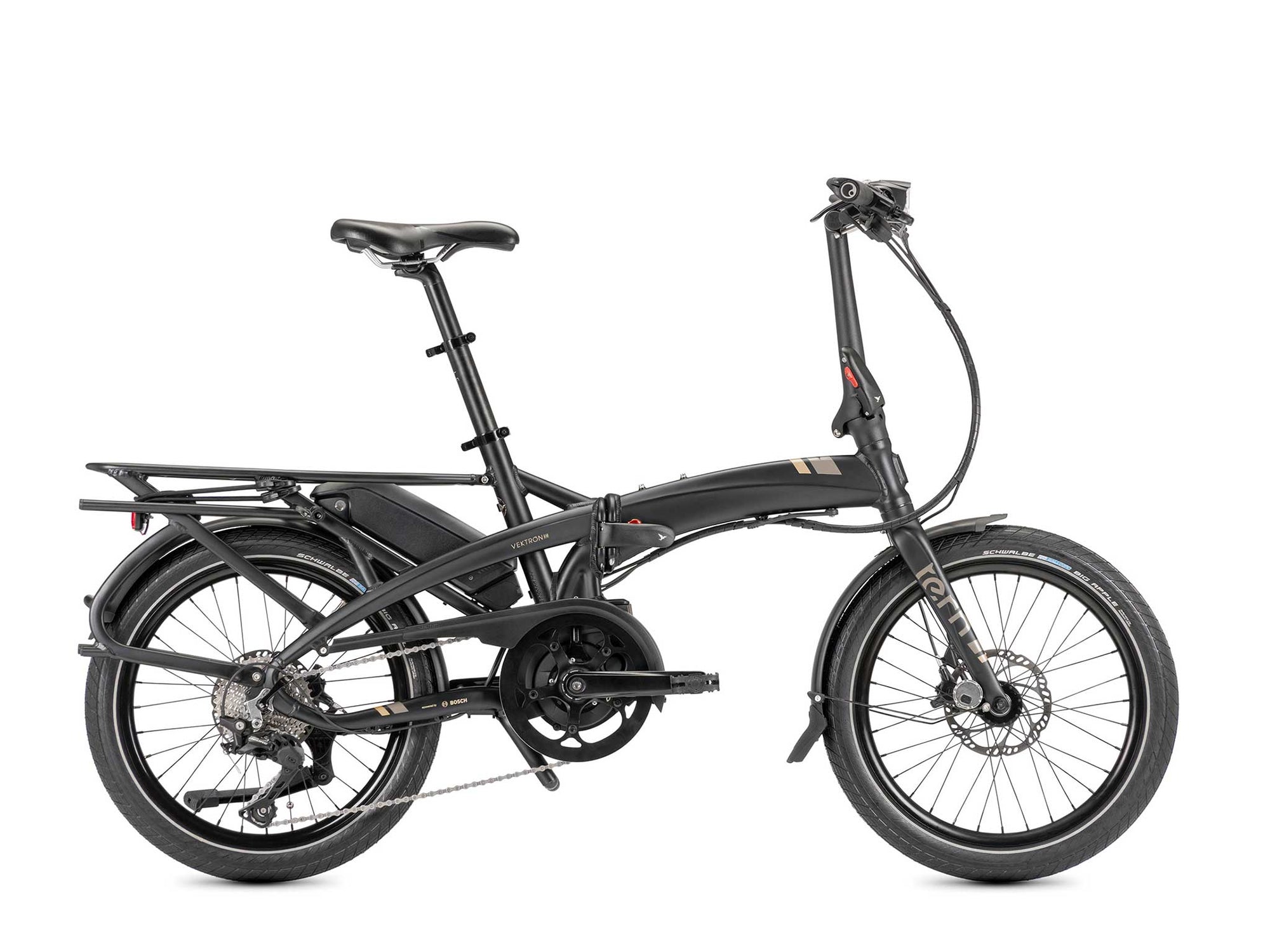

Vektron S10

Designed as a folding bike that rides like a non-folding bike, The Vectron's mid mounted Bosch motor ensures that you can climb hills and ride against strong headwinds without any issues. The luggage rack carries up to 27 Kg and is compatible with a wide range of panniers and child seats.

• Powerful Bosch Performance motor provides up to 65 Nm of torque and 300% support
• Bosch Purion display with clear info and easy control at your thumb
• PowerPack 400Wh battery lets you ride up to 50 miles on a single charge


General Info
Speeds:
1 x 10
Weight:
22.1 kg (48.7 lb)
Gear Inches:
30" - 97" (2.36 - 7.72 m)
Frame Sizes:
One size

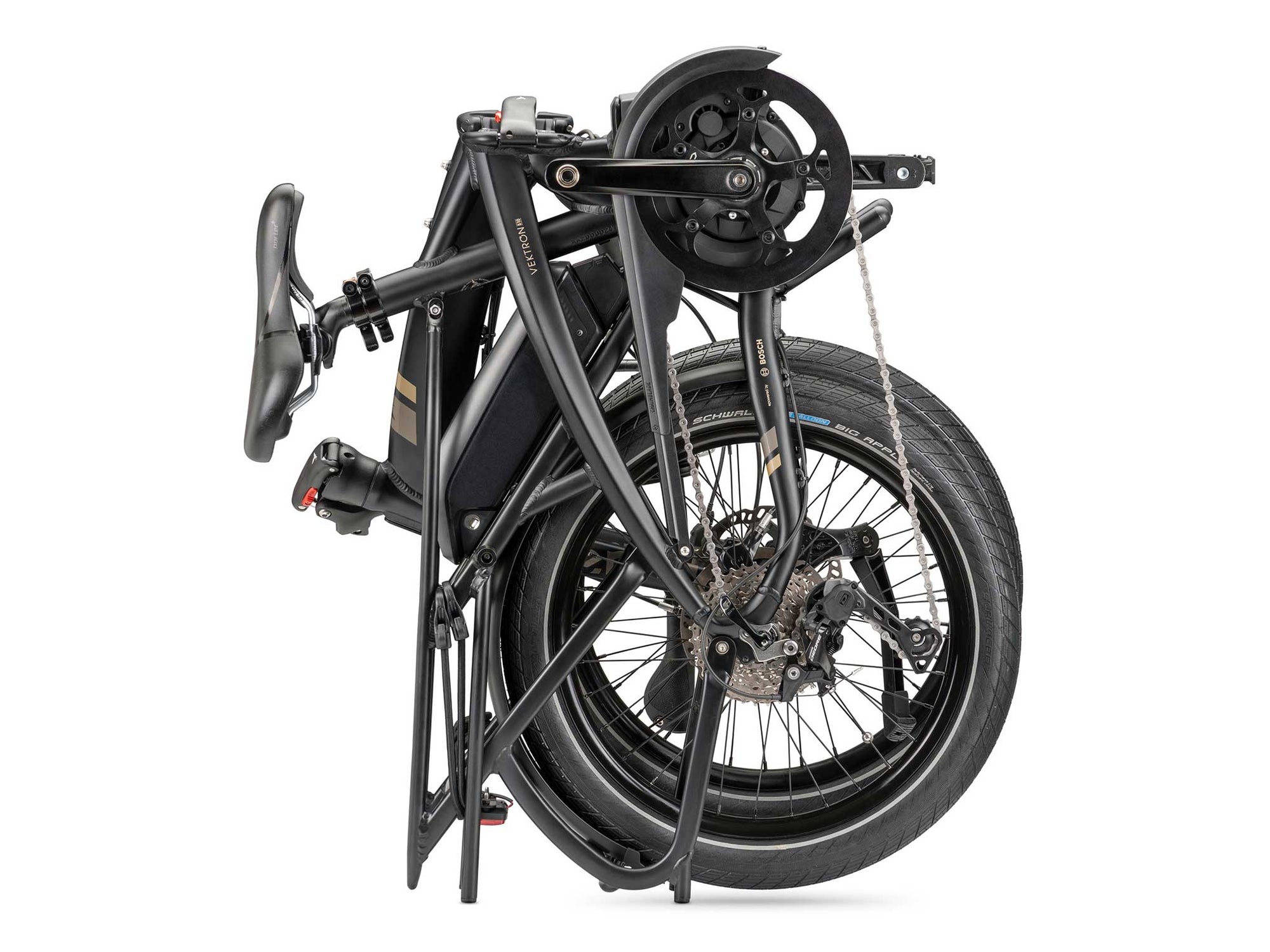

Folding Size:
40 × 85.5 × 67.5 cm (15.7 × 33.7 × 26.6 in)
Folding Time:
10 sec
Distance: Seatpost to Handlebar:
62 - 69 cm (24.4 - 27.2 in)
Distance: Saddle to Pedal:
67 - 110 cm (26.4 - 43.3 in)
Suggested Rider Height:
147 - 195 cm (57.9 - 76.8 in)
Max Gross Vehicle Weight:
125 kg (275.6 lb)
Max Rider Weight:
105 kg (231.5 lb)

Frame:
Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Fork:
Tern Tarsus, 6061-Al, hydroformed
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Flux Pro, angular contact bearings, Physis integrated
Handlebar:
Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern Porter+, patented GripPad design, PrimeGel padding
Seatpost:
Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp:
Tern Collar, 6061-AL, 2pc

Brakes
Front Brake:
Magura MT4, hydraulic disc
Rear Brake:
Magura MT4, hydraulic disc
Brake Levers:
Magura, hydraulic disc
Brake Cable & Housing:
Magura, hydraulic disc

Wheels
Front Hub:
Novatec, sealed cartridge bearing, disc
Rear Hub:
Novatec, sealed cartridge bearing, disc
Spokes & Nipples:
Stainless steel, double-butted
Rims:
Kinetix Comp, for disc
Tyres:
Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex

Transmission
Shifter:
Shimano Deore, 1 x 10 spd
Rear Derailleur:
Shimano Deore Shadow+
Crankset:
Vektron custom, forged 6061-AL crankarm
Cassette/Freewheel:
Shimano 11-36T, 10 spd
Bottom Bracket:
Motor integrated
Chain:
10 spd, DHT for eBike, GST corrosion resistant coating
Pedals:
MKS EZY
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules

E-System
Motor:
Bosch Performance, 300% Assist, 65 Nm Torque, max assisted speed 25 kph
Battery:
Bosch PowerPack 400 Wh
Display:
Bosch Purion, 4 mode selectable, walk assist
Range:
400 Wh: 53 -106 km (34-68 mi)
Charger:
220V, 4A

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
