General Info
Speeds:
1 x 14
Weight:
38.77 kg (85.5 lb)
Gear Inches:
18" - 96" (1.45 - 7.64 m)
Frame Sizes:
One size
Bike Size:
192 × 68 × 118 cm (75.6 × 26.8 × 46.5 in)
Wheelbase:
136 cm (53.5 in)
Standover Height:
49 cm (19.3 in)

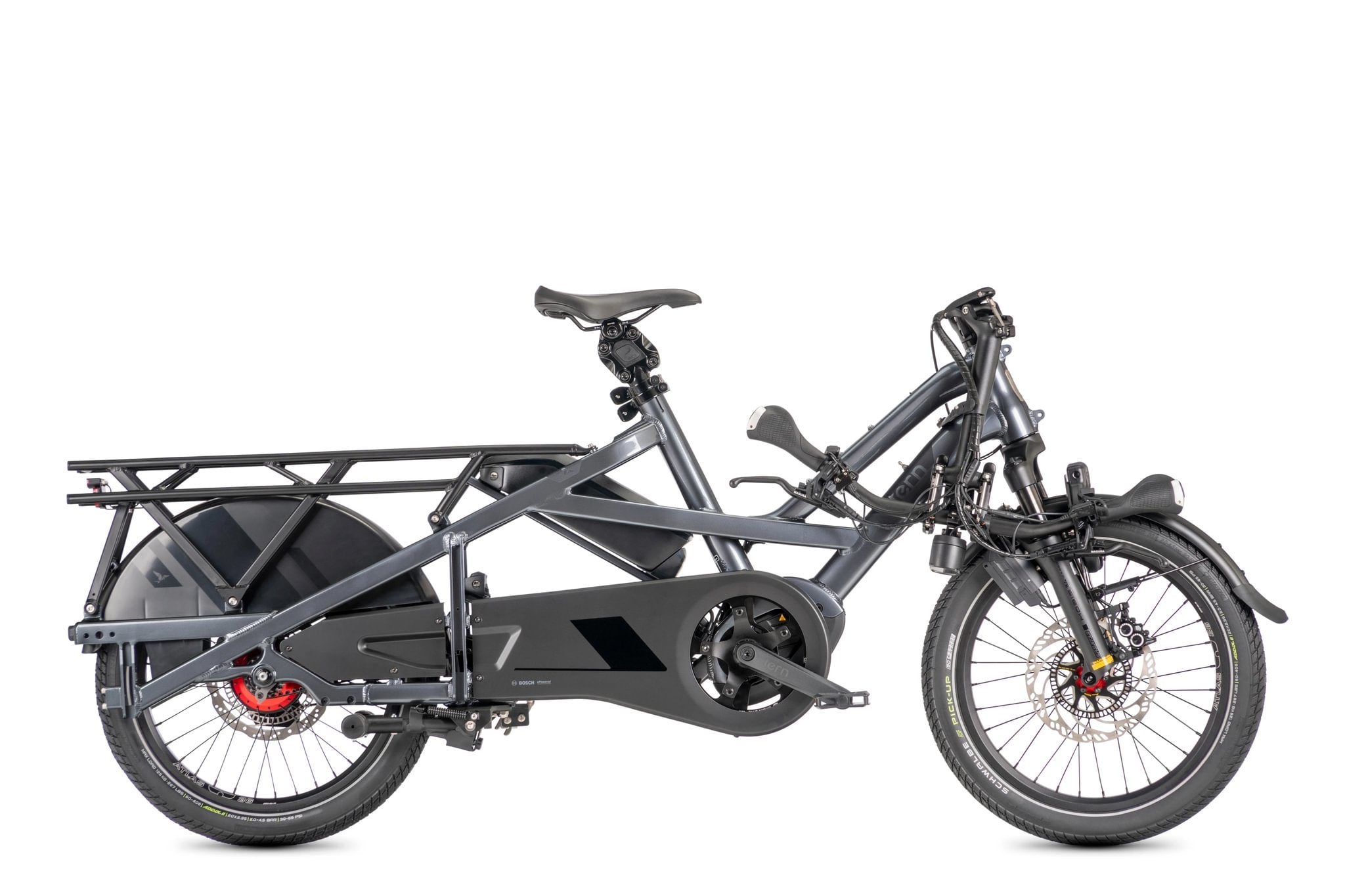

Folding Size:
185 × 46 × 88 cm (72.8 × 18.1 × 34.6 in)
Folding Time:
5 seconds
Distance: Seatpost to Handlebar:
49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal:
69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height:
153 - 200 cm (60.2 - 78.7 in)
Max Gross Vehicle Weight:
210 kg (463 lb)
Max Load Weight:
210 kg (463 lb)
Max Rider Weight:
130 kg (286.6 lb)
Frame
Frame:
Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Fork:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern GSD by Velo
Seatpost:
Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Rear Brake:
Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor
Brake Levers:
Magura MT-C e-stop, hydraulic, with brake light sensor
Brake Cable & Housing:
Magura ABS, hydraulic
Wheels
Front Wheel:
Tern Atlas, heavy duty cargo wheel
Rear Wheel:
Tern Atlas, heavy duty cargo wheel
Front Hub:
Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub:
Rohloff E14, 526% range, Boost
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires:
Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex
Transmission
Shifter(s):
Rohloff E14, e-shift 14 spd
Crankset:
Tern GSD, Gates CDX CNC machined beltring
Cassette/Freewheel:
Gates CDX, precision CNC machined cog
Bottom Bracket:
Motor integrated
Chain:
Gates Carbon Drive CDX belt
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Rohloff E14, e-shift
E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch 800 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity
Display:
Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Android app, electronic bike lock, Rohloff integrated shifting w/ auto downshift
Range:
800 Wh: 67-144 km (42-89 mi); 1600 Wh: 134-288 km (83-179 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Connect Module:
Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation
Anti-Lock Braking System:
Bosch Anti-Lock Braking System, Gen 2
Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern GSD, full chain cover
Kickstand:
Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket:
Combo Mount
Front Light:
Ignis Headlight, Hi/Lo beams, 700 lumens
Rear Light:
RearStop Brake Light, Always on
Fenders:
F: Aluminum R: GSD wheel guard
Rack(s):
Atlas G, 100 kg (220 lb) capacity
Frame Lock:
ABUS or AXA, keyed-alike with Bosch battery
On-board Charging:
USB-C, 5V/2.4A, 12W max
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
