General Info
Speeds:
1 x 10
Weight:
34.64 kg (76.4 lb)
Gear Inches:
26" - 98" (2.04 - 7.80 m)
Frame Sizes:
One size
Bike Size:
191 × 68 × 116 cm (75.2 × 26.8 × 45.7 in)
Wheelbase:
135 cm (53.1 in)
Standover Height:
49 cm (19.3 in)

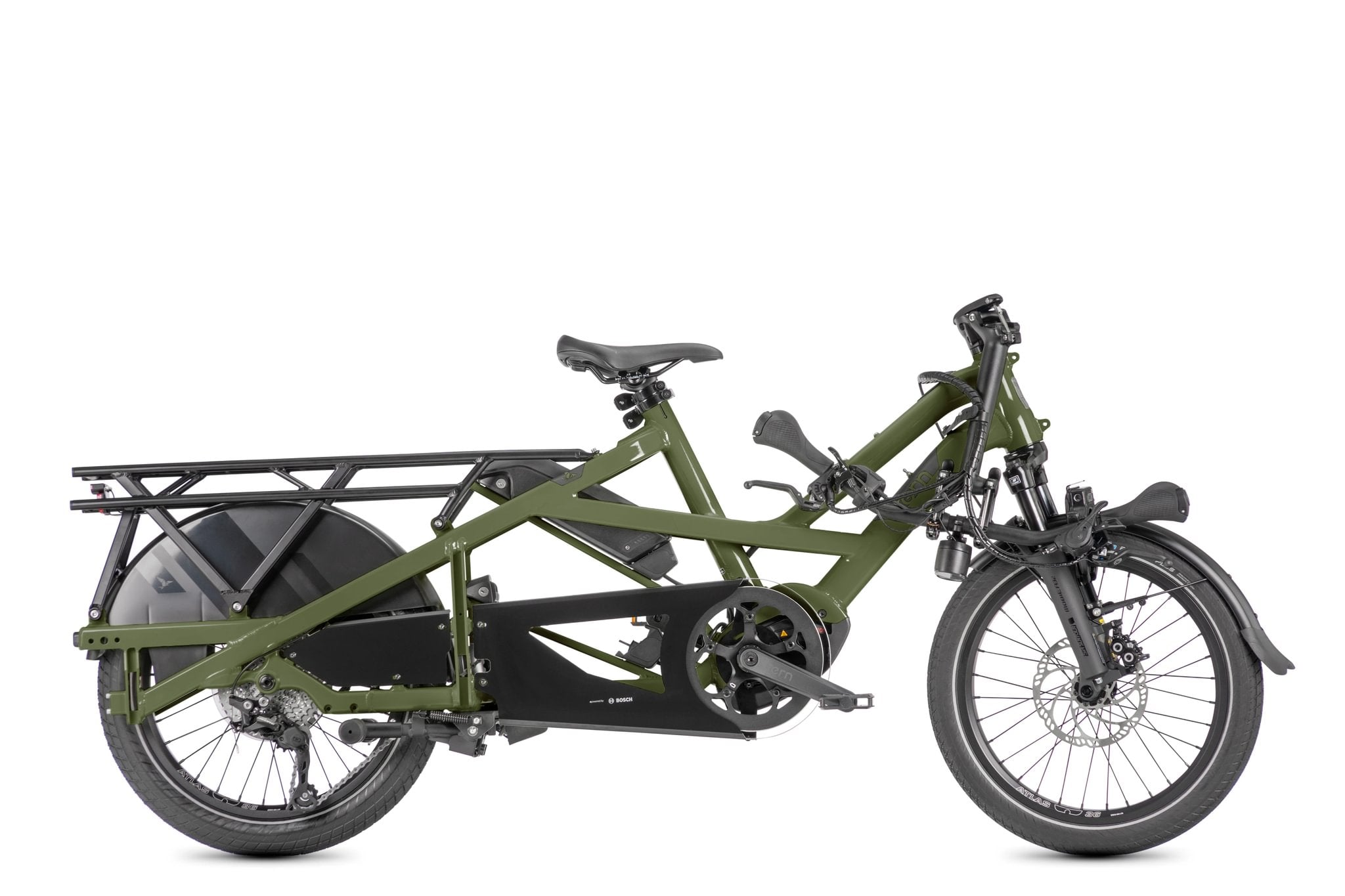

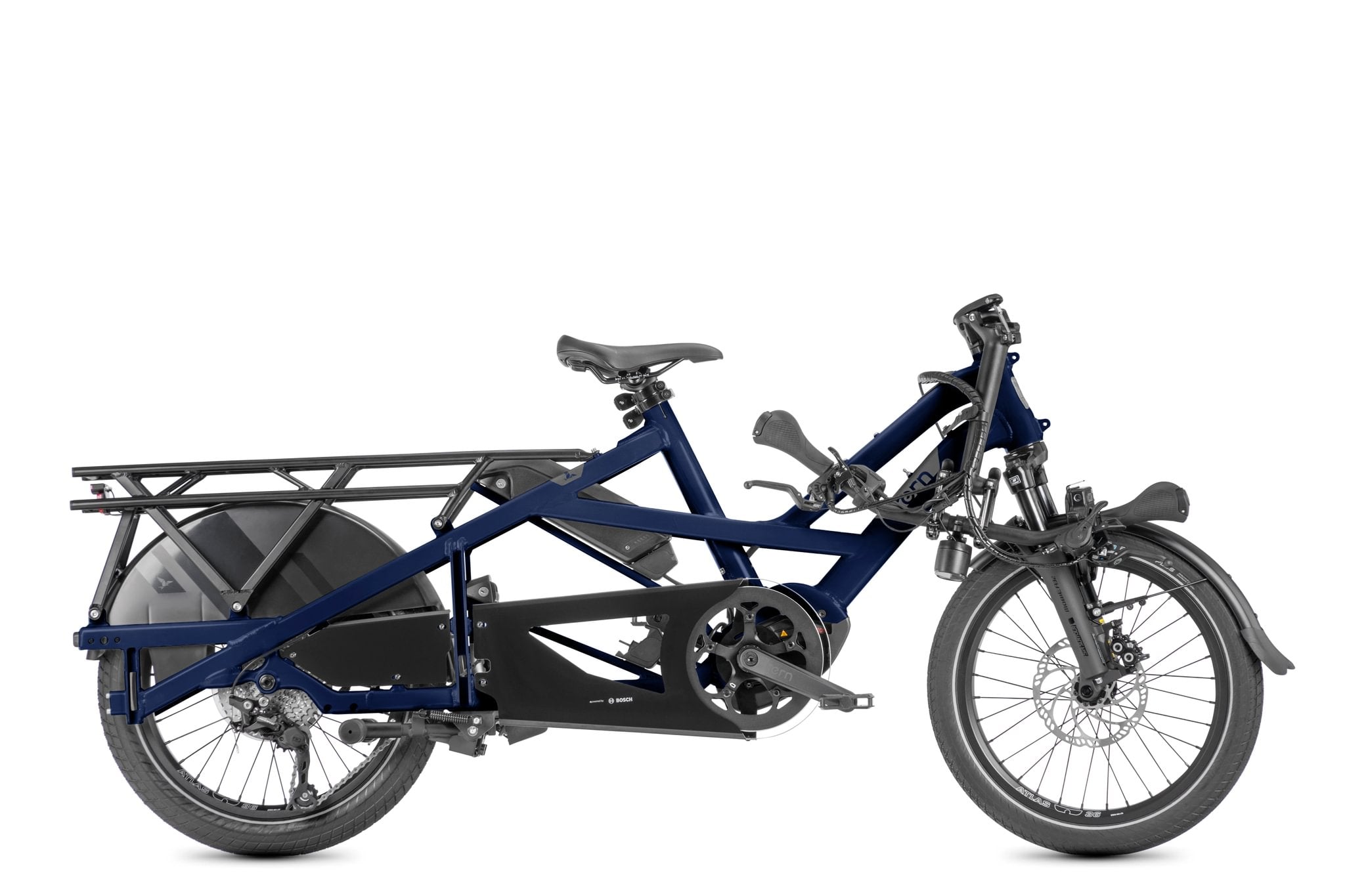

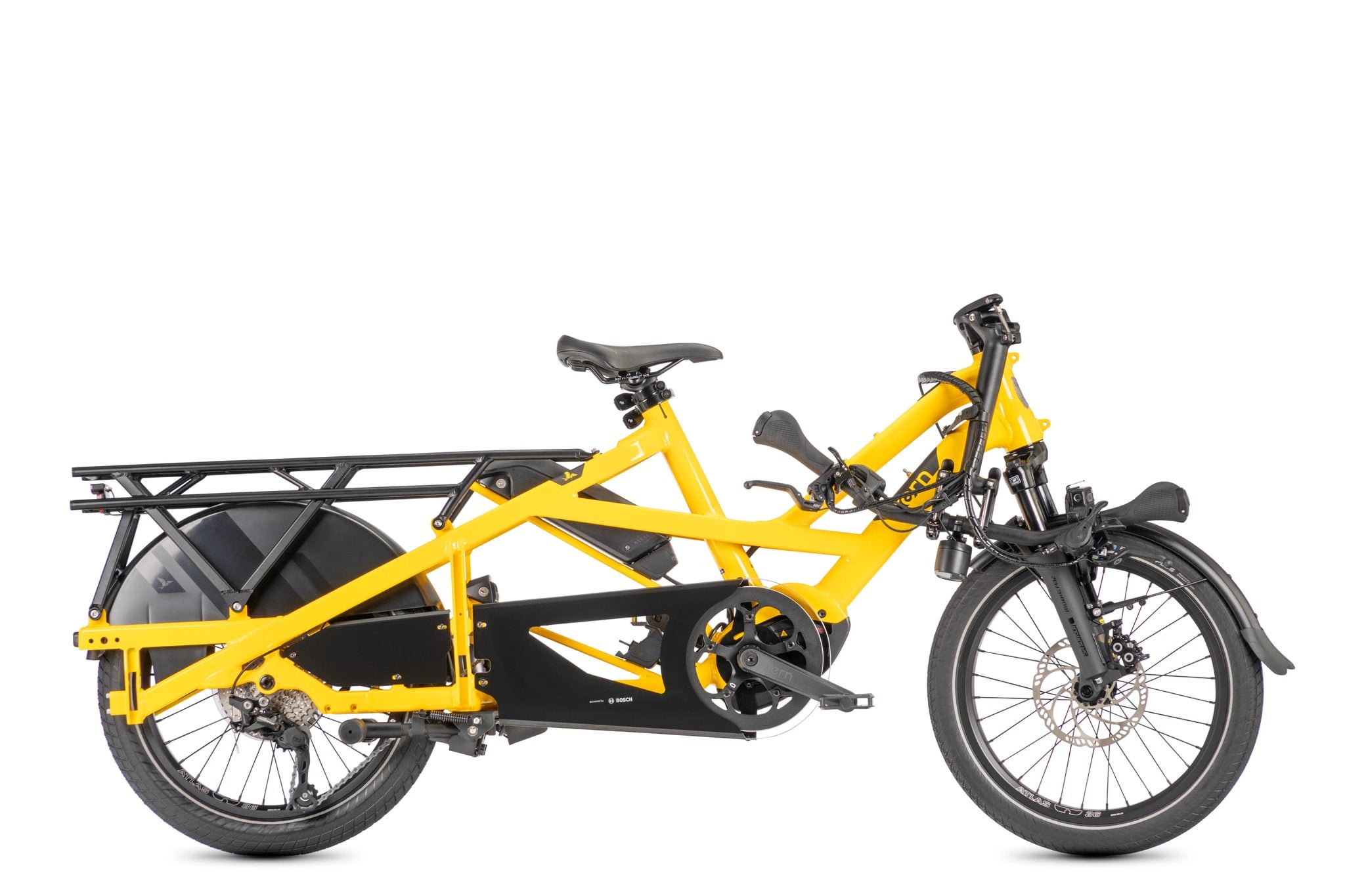

Folding Size:
182 × 46 × 87 cm (71.7 × 18.1 × 34.3 in)
Folding Time:
5 seconds
Distance: Seatpost to Handlebar:
49 - 59 cm (19.3 - 23.2 in)
Distance: Saddle to Pedal:
69 - 105 cm (27.2 - 41.3 in)
Suggested Rider Height:
150 - 200 cm (59.1 - 78.7 in)
Max Gross Vehicle Weight:
210 kg (463 lb)
Max Load Weight:
210 kg (463 lb)
Max Rider Weight:
130 kg (286.6 lb)
Frame
Frame:
Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg
Fork:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 50 mm travel, EFBE approved: 210 kg
Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Stem:
Tern Andros, adjustable, forged construction, patented technology
Headset:
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
Handlebar:
Tern Sweep, 6061-AL, Tern Andros adapted
Grips/Bar Tape:
Ergon
Saddle:
Tern GSD by Velo
Seatpost:
Tern VLT (Very Large Telescope) with LightAction levers
Seatpost Clamp:
Tern Collar
Brakes
Front Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Rear Brake:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake Levers:
Magura MT5 e-stop, hydraulic, with brake light sensor
Brake Cable & Housing:
Magura, hydraulic
Wheels
Front Wheel:
Tern Atlas, heavy duty cargo wheel
Rear Wheel:
Tern Atlas, heavy duty cargo wheel
Front Hub:
Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings
Rear Hub:
Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard
Spokes & Nipples:
Stainless steel
Rims:
Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires:
F: Schwalbe Big Ben Plus, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, Green Guard puncture protection, Reflex
Transmission
Shifter(s):
Shimano Deore, 1 x 10 spd
Rear Derailleur:
Shimano Deore Shadow+
Crankset:
Tern GSD, forged 6061-AL DH crankarm
Cassette/Freewheel:
Shimano 11-42T, 10 spd
Bottom Bracket:
Motor integrated
Chain:
KMC 10 spd, for eBike, EPT corrosion resistant coating
Pedals:
Urban with non-slip surface, sealed bearings
Shifter Cable & Housing:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
Motor:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery:
Bosch 500 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 500 Wh max capacity
Display:
Bosch Purion
Range:
500 Wh: 40-102 km (25-63 mi); 1000 Wh: 82-207 km (51-129 mi)
Charger:
220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell:
Pitch Plus, brass
Chainguard:
Tern GSD, full chain cover
Kickstand:
Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology
Luggage Socket:
Combo Mount
Front Light:
Ignis Headlight, Ultra wide low beam
Rear Light:
RearStop Brake Light, Always on
Fenders:
F: Aluminum R: GSD wheel guard
Rack(s):
Atlas G, 100 kg (220 lb) capacity
Frame Lock:
ABUS or AXA, keyed-alike with Bosch battery
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
