Frameset
Frame

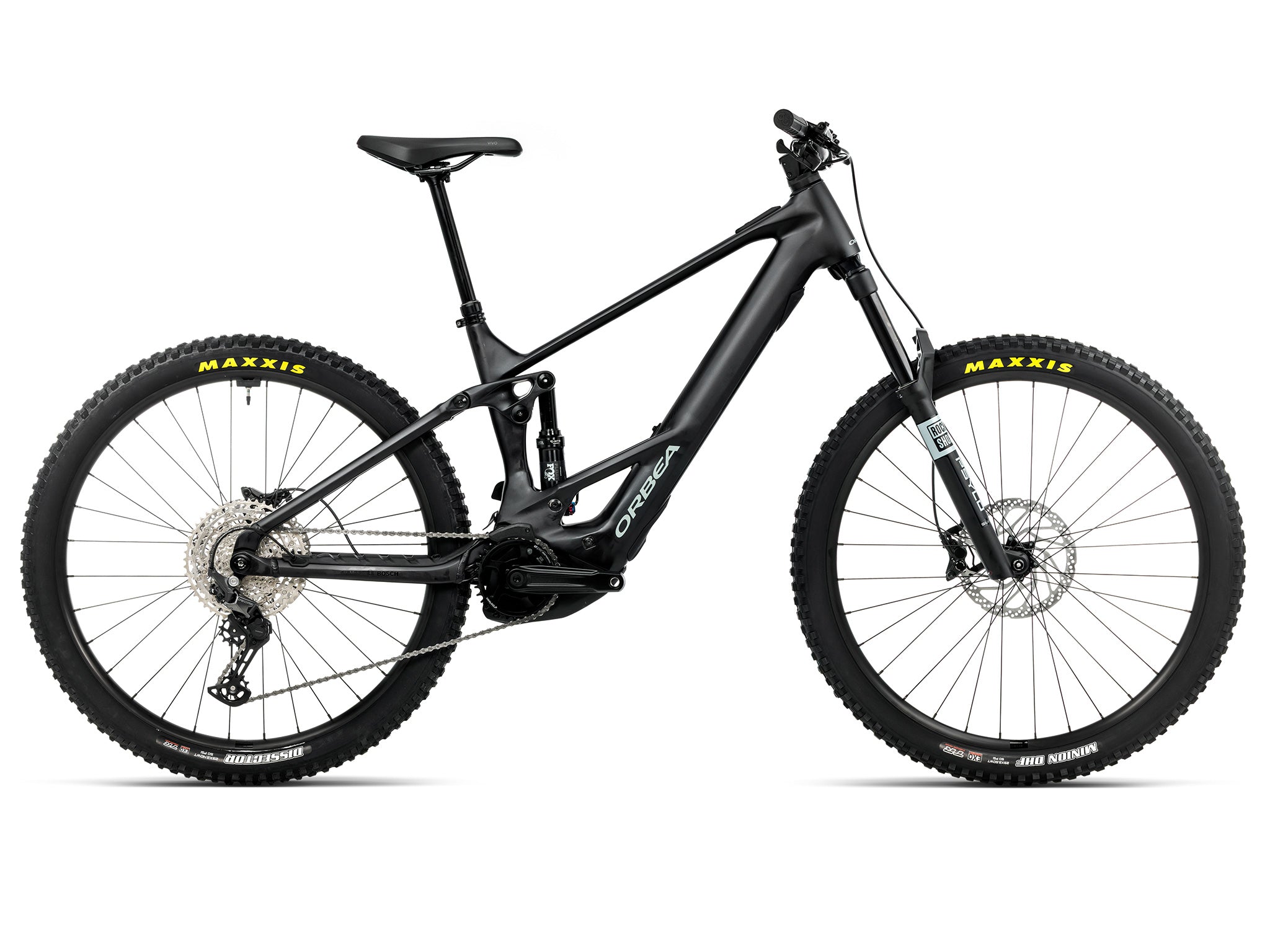

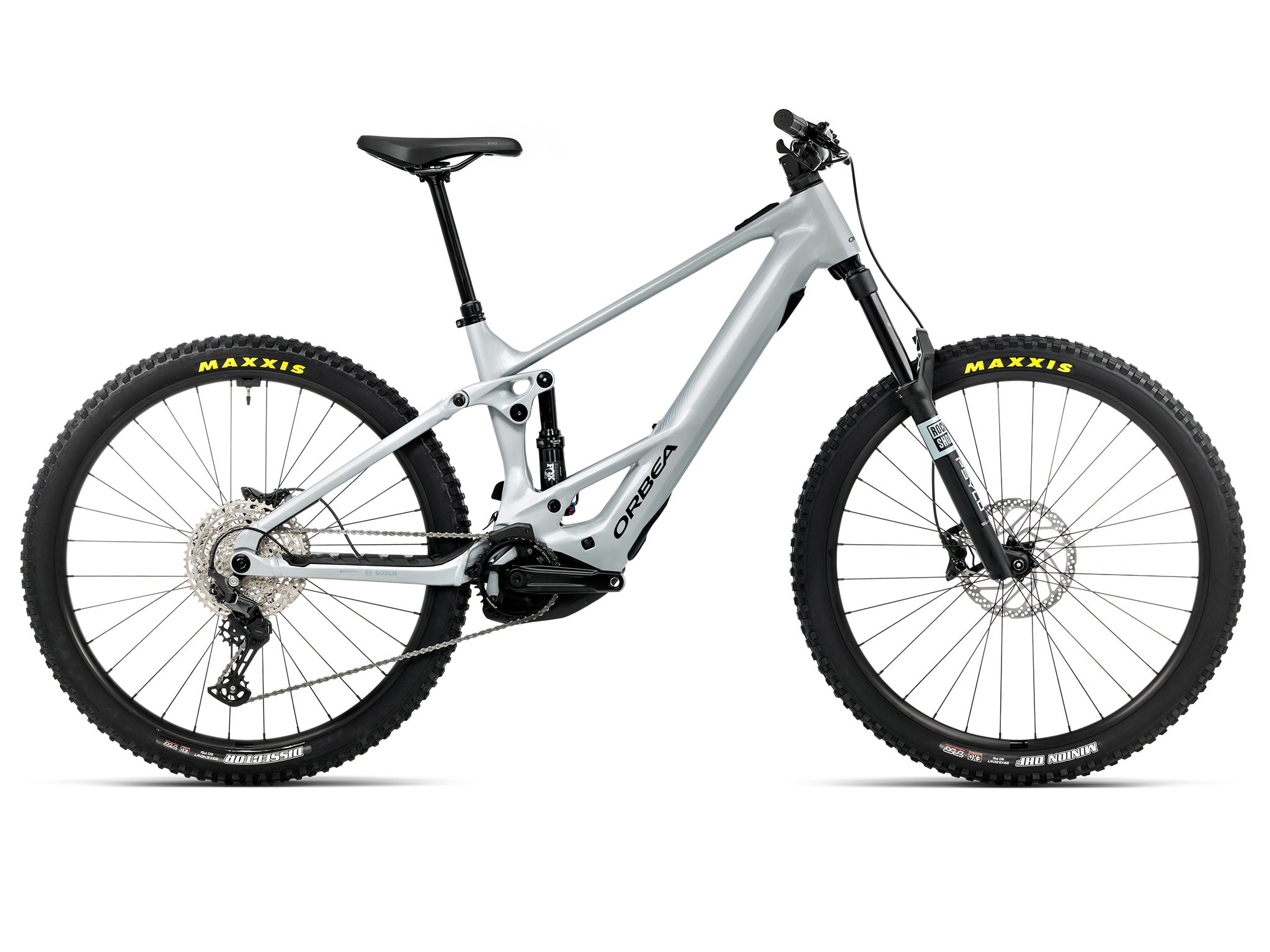

Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
Shock
Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm
Fork
RockShox Psylo Silver RC 15x110 Boost
Steerer tube
Alloy 1-1/2", Black Oxidated Bearing
Ebike
Battery
Bosch Powertube 600Wh Horizontal BBP3860
RANGE EXTENDER
N/A
Motor
Bosch Performance Line CX BDU3843
Display
Bosch System Controller BRC3100
CHARGER
Bosch Charger 2A (220-240V)
Remote
Bosch Mini Remote BRC3300
Drivetrain
Chainring
Steel 32t
Crank
Prowheel EB17 alloy
Shifters
Shimano Deore M6100 I-Spec EV
Cassette
Shimano CS-M6100 10-51t 12-Speed
Rear derailleur
Shimano Deore M6100 SGS Shadow Plus
Chain
Shimano M6100
Chainguide
e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
Cockpit
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Brakes
Shimano MT420 Hydraulic Disc
Rotors
Shimano SMRT30 Rotors 203mm front / 203mm rear
Brakes Configuration
N/A
Wheels
Wheels
Alloy, Tubeless, 29", 29c, 32H
Tyres
Maxxis Minion 2,50" DHF 60TPI Rigid EXO/TR
Tyres
Maxxis Dissector 2.40" 60TPI Rigid EXO/TR
Components
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever
Shimano SL-MT500 I-Spec EV
Saddle
Selle Royal Vivo Sport Men 145 x 269mm
Grips
OC Lock On
Accessories
Lights
N/A
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
