Frameset
Frame

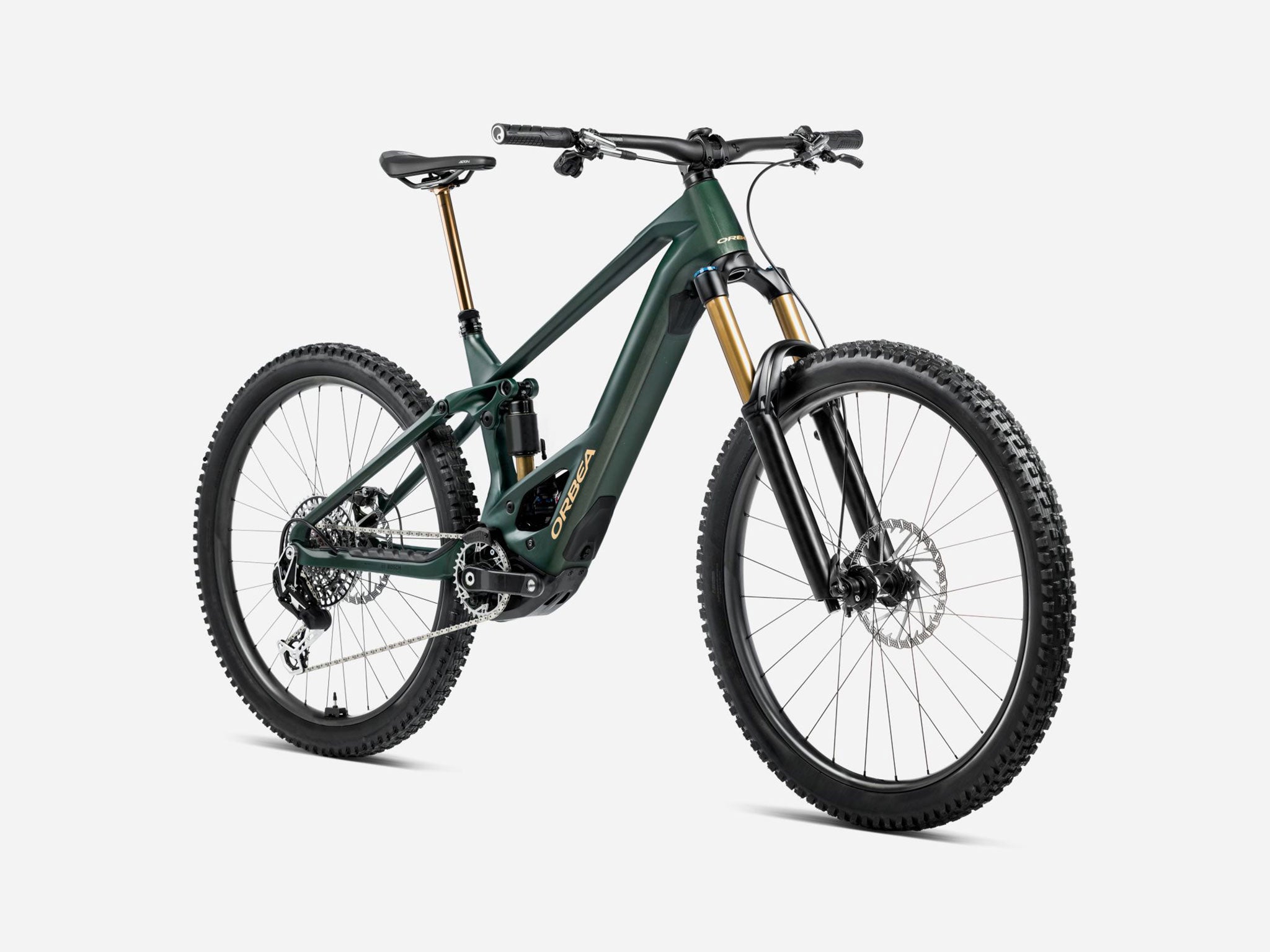

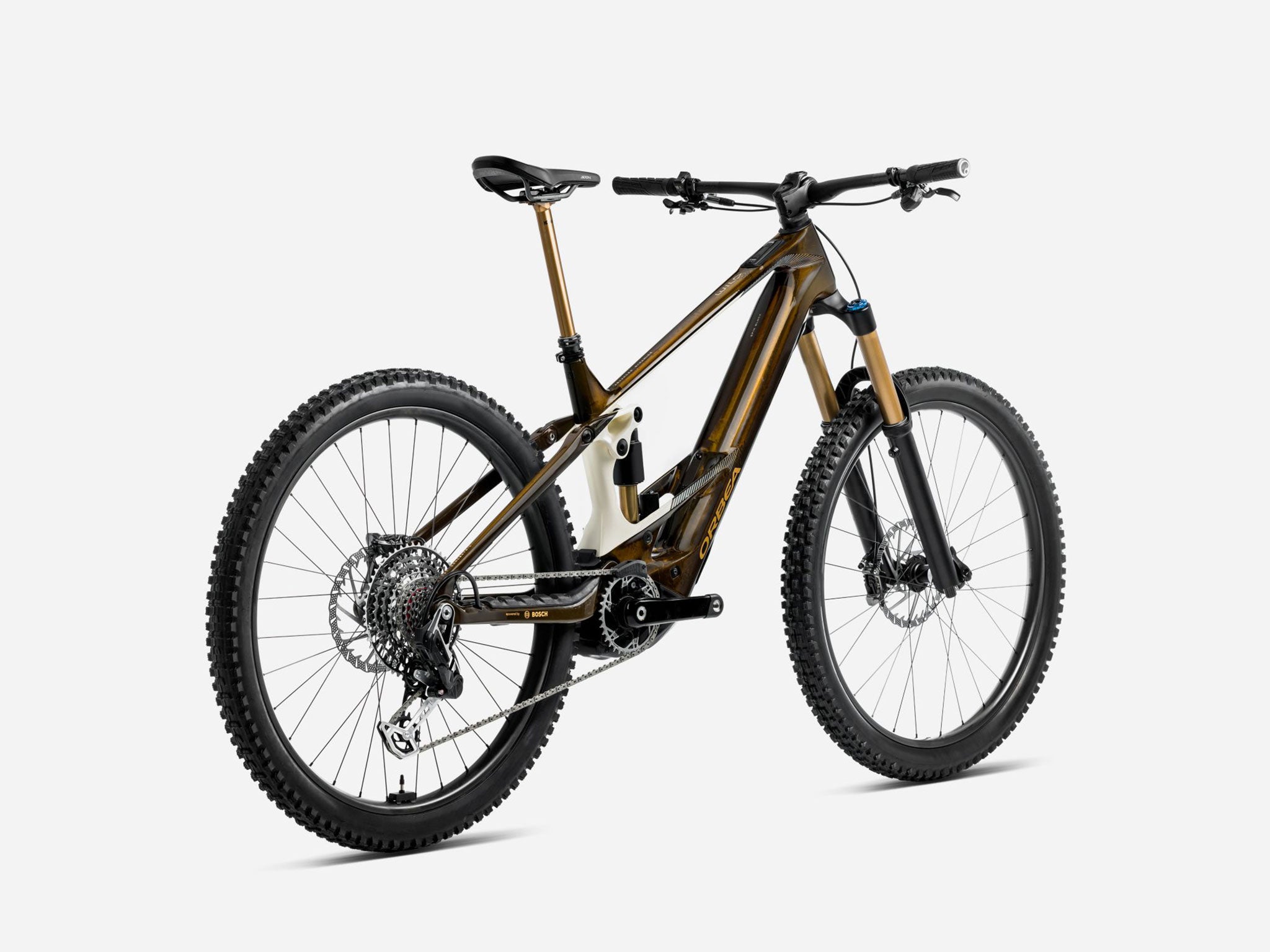

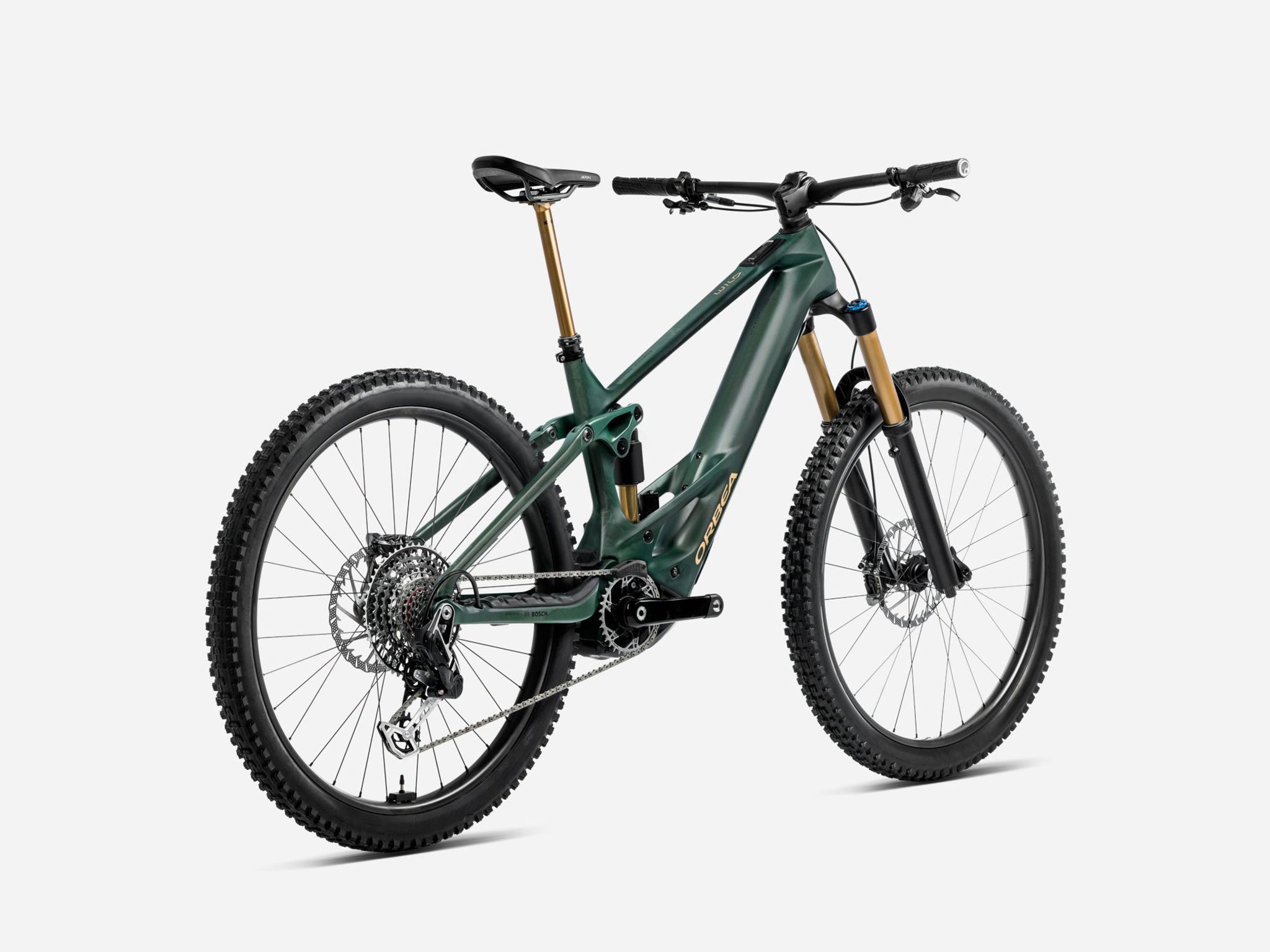

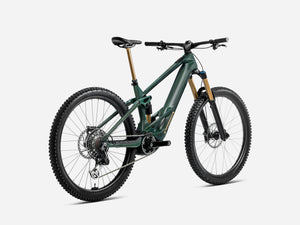

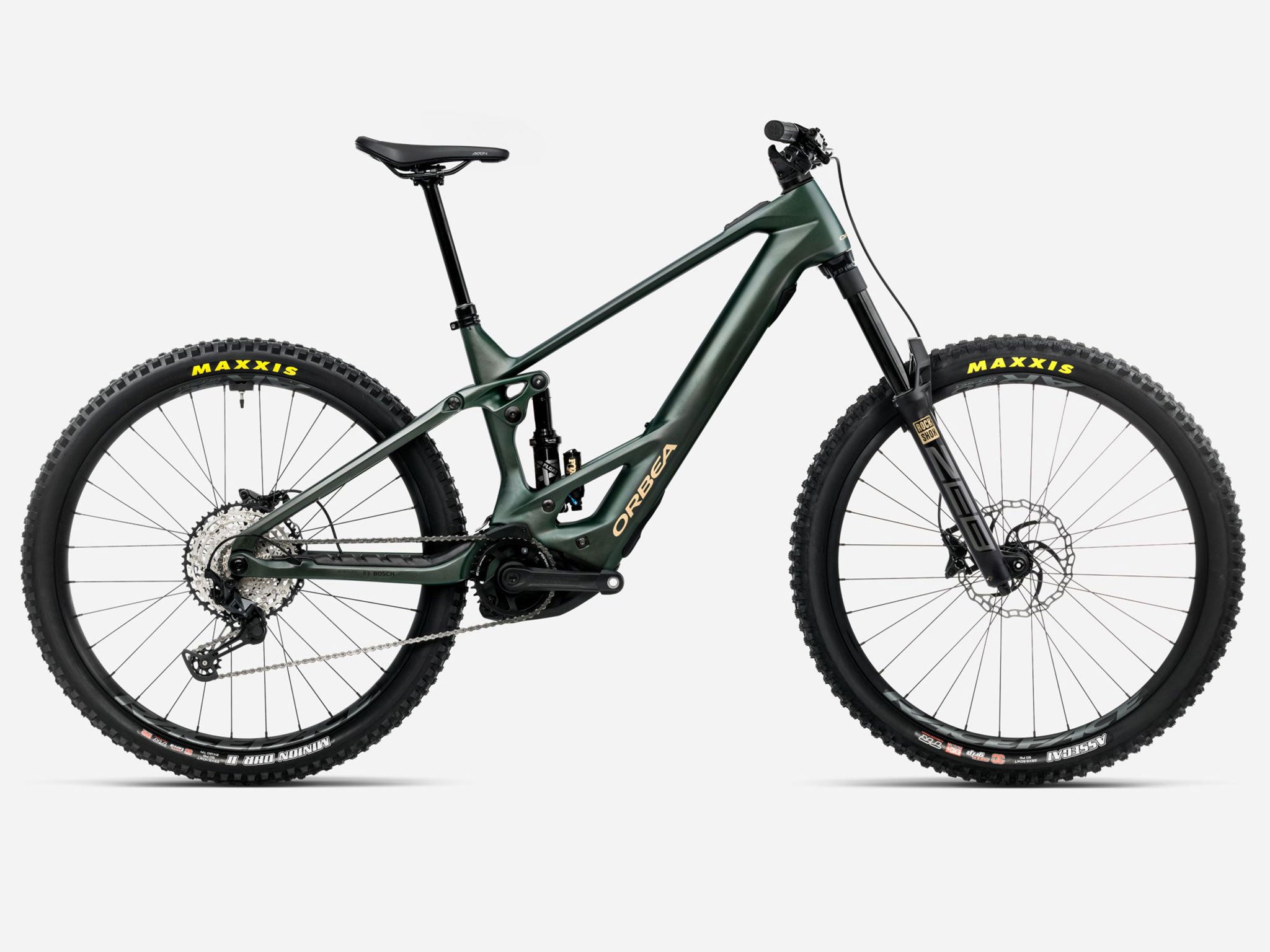

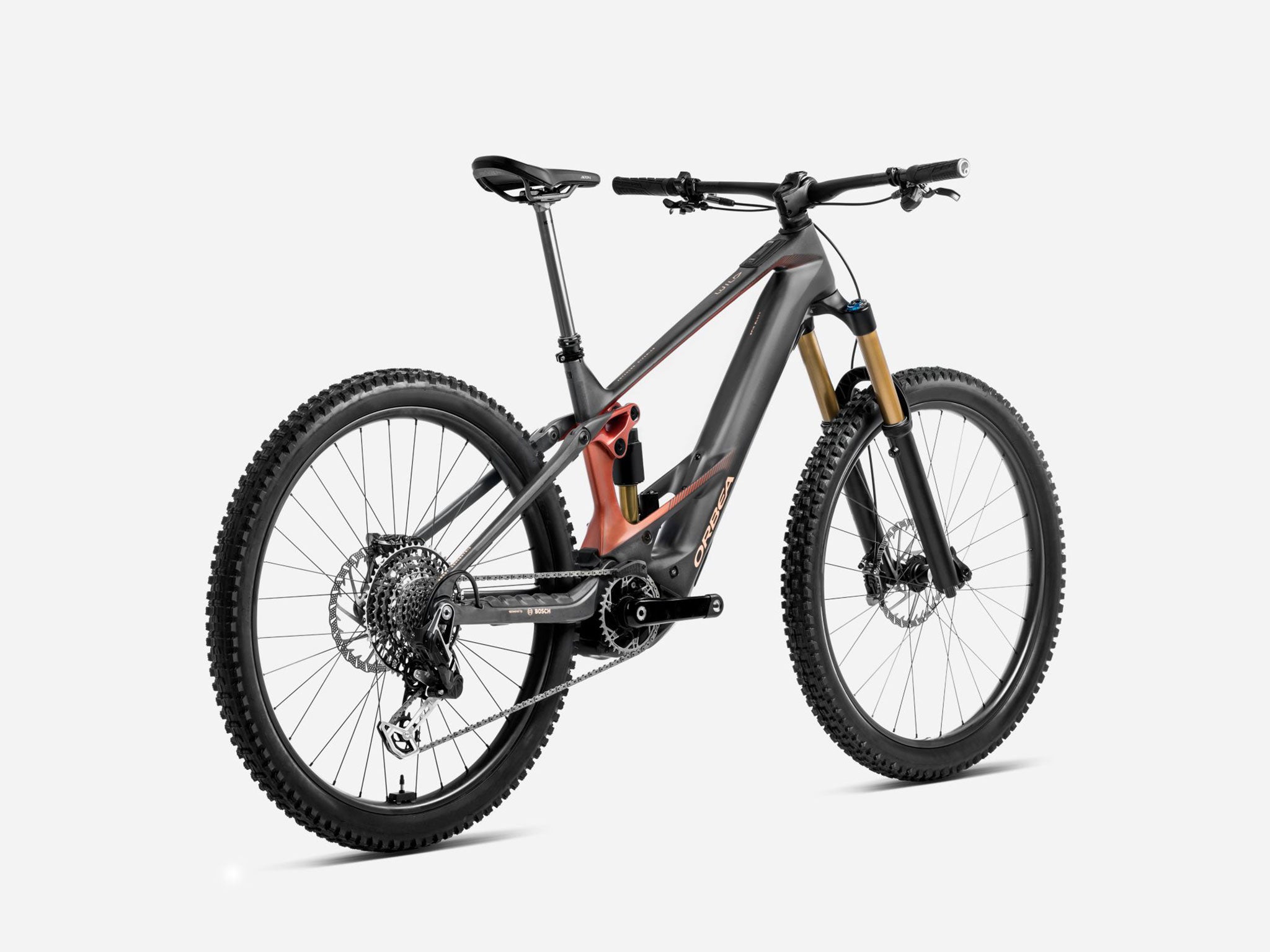

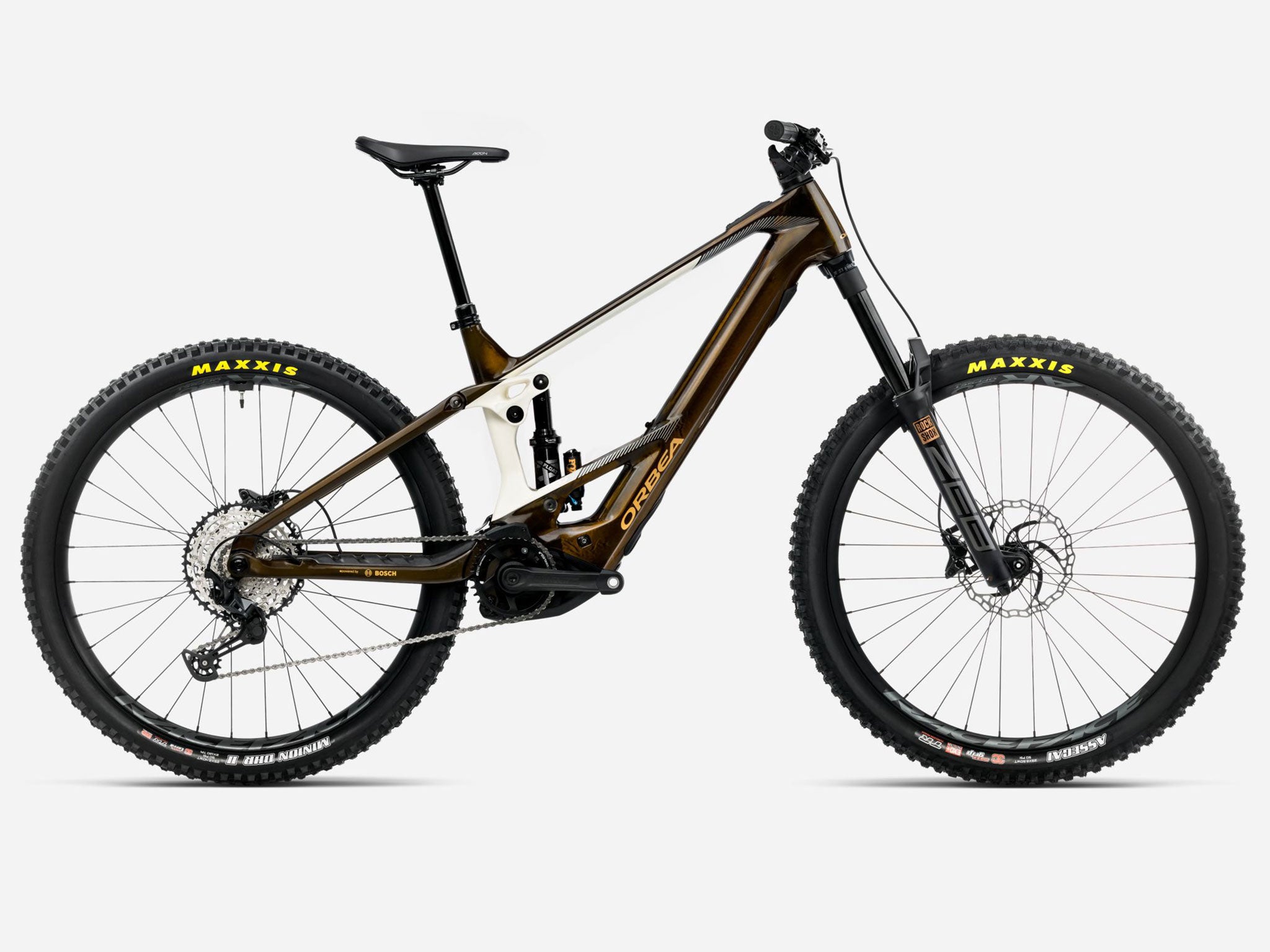

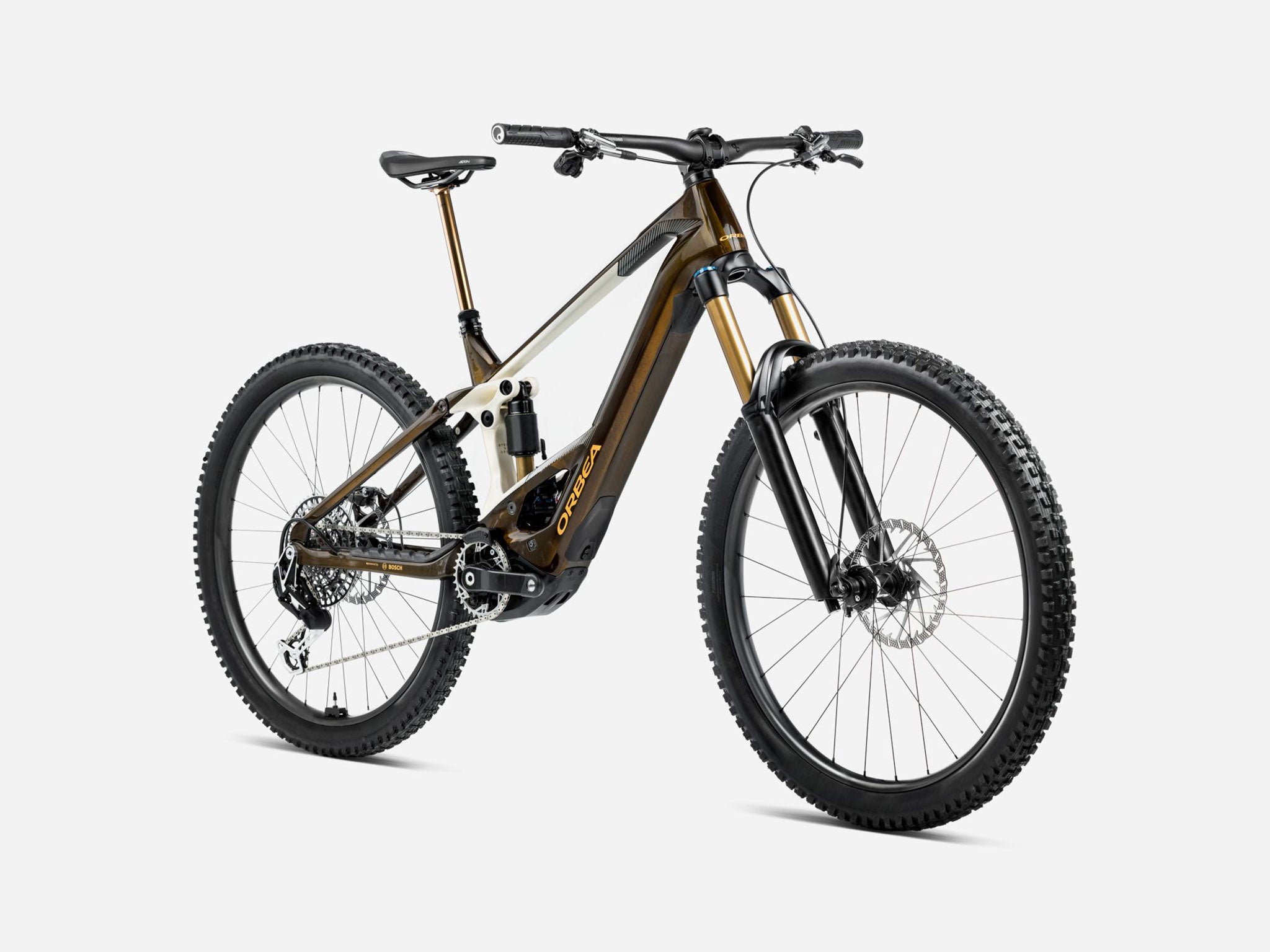

Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148
Shock
Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Fork
RockShox ZEB Base-A2 DebonAir+ 170 E-MTB specific 15X110 Boost
Steerer tube
Alloy 1-1/2", Black Oxidated Bearing
Ebike
Battery
Bosch Powertube 750Wh Horizontal BBP3770
RANGE EXTENDER
N/A
Motor
Bosch Performance Line CX BDU3843
Display
Bosch System Controller BRC3100
CHARGER
Bosch Charger 4A (230V) BPC3400
Remote
Bosch Mini Remote BRC3300
Drivetrain
Chainring
e*thirteen e*spec Direct Mount 34T Boost
Crank
e*thirteen Helix Core
Shifters
Shimano Deore M6100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Rear derailleur
Shimano SLX M7100 SGS Shadow Plus
Chain
Shimano M6100
Chainguide
e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
Cockpit
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Brakes
Shimano MT420 Hydraulic Disc
Rotors
Galfer Wave Rotors 203mm front / 203mm rear
Brakes Configuration
N/A
Wheels
Wheels
Race Face AR 30c Tubeless Ready
Tyres
Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
Tyres
Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
Components
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever
Shimano SL-MT500 I-Spec EV
Saddle
Fizik Aidon 208x145mm manganese rail
Grips
OC Lock On
Accessories
Lights
N/A
