Frameset
Frame

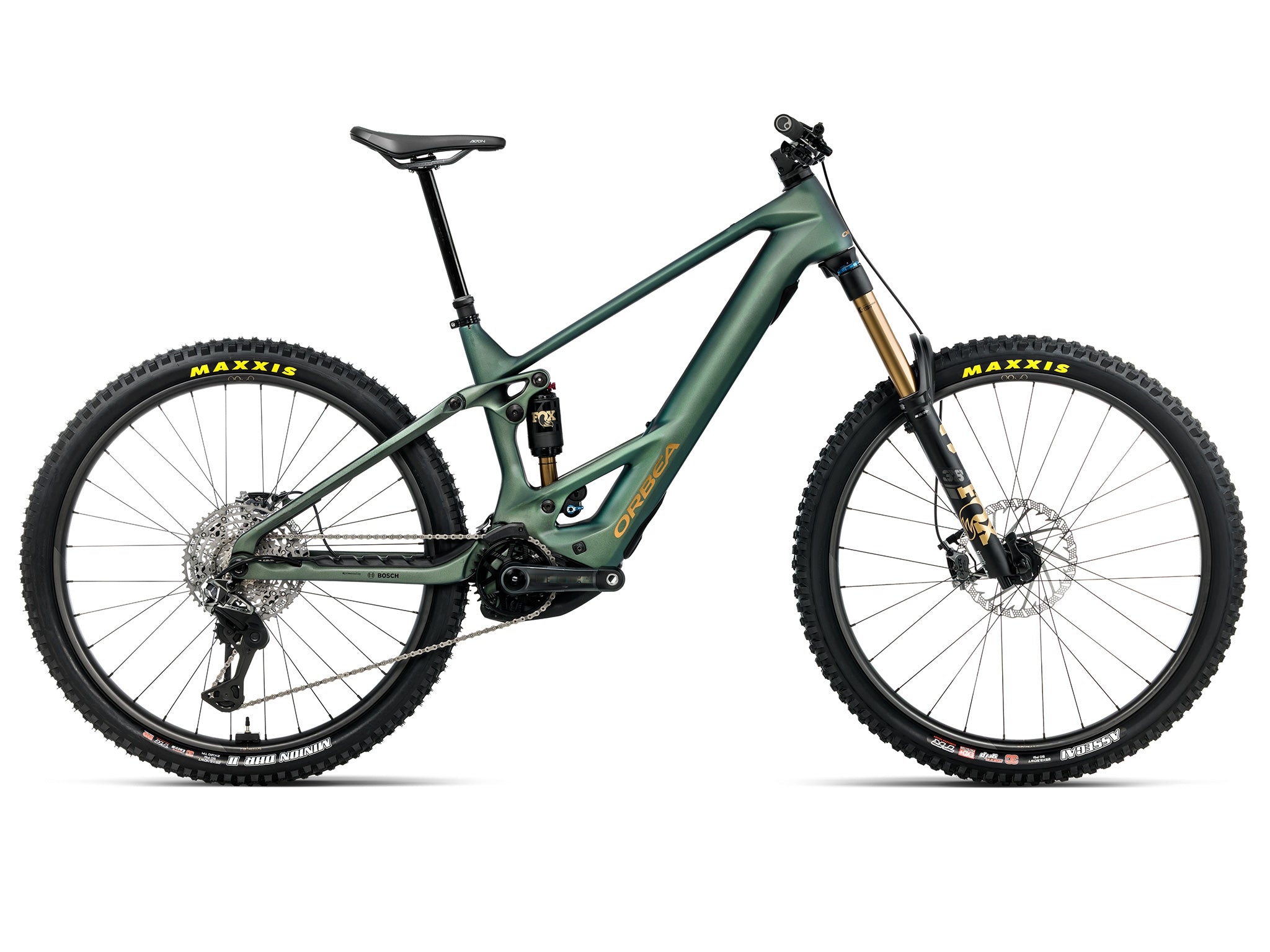

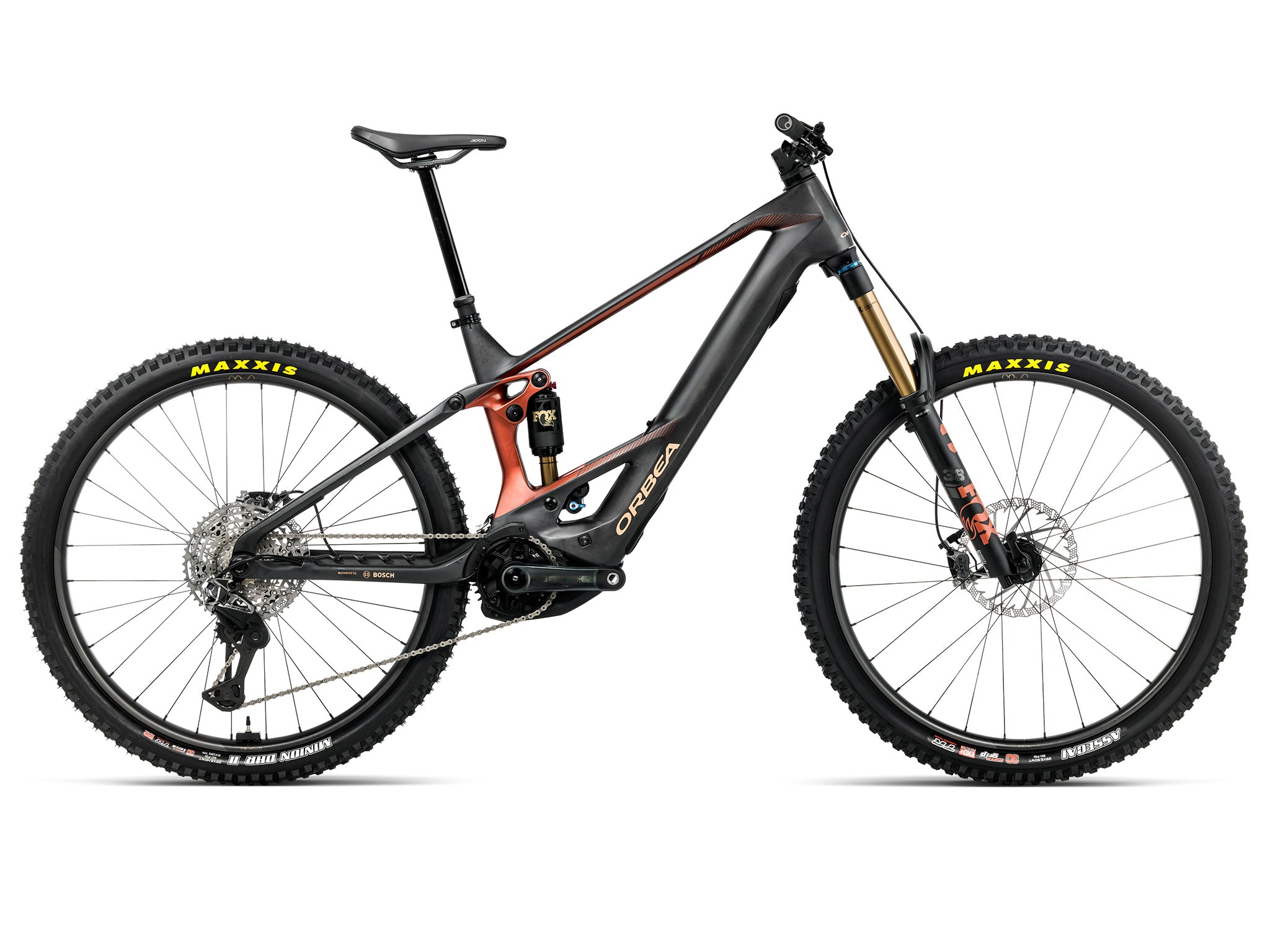

Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148
Shock
Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm
Fork
Fox 38 Float Factory 170, Grip X2, QR15x110, Kashima
Steerer tube
Alloy 1-1/2", Black Oxidated Bearing
Ebike
Battery
Bosch Powertube 600Wh Horizontal BBP3860
RANGE EXTENDER
N/A
Motor
Bosch Performance Line CX-R BDU3863
Display
Bosch System Module Kiox 400C
CHARGER
Bosch Charger 4A (230V) BPC3400
Remote
Bosch Mini Remote BRC3300
Drivetrain
Chainring
e*thirteen Helix Race e*spec Direct Mount 34T 55mm ChainLine
Crank
e*thirteen Helix Race Carbon
Shifters
Shimano XTR M9250
Cassette
Shimano CS-M9200 10-51t 12-Speed
Rear derailleur
Shimano XTR M9260 12s
Chain
Shimano CN-9100
Chainguide
e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
Cockpit
Handlebar
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Stem
OC Mountain Control MC11 Alu SL, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Brakes
Shimano XTR Hydraulic Disc
Brakes Configuration
N/A
Wheels
Wheels
Oquo Mountain Control MC32LTD POWER
Tyres
Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
Tyres
Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
Components
Seatpost
OC Mountain Control MC10, 31.6mm, Dropper
Seatpost Lever
Shimano SL-MT500 I-Spec EV
Saddle
Fizik Terra Aidon X1 145mm
Accessories
Lights
N/A
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
