Frameset
Frame

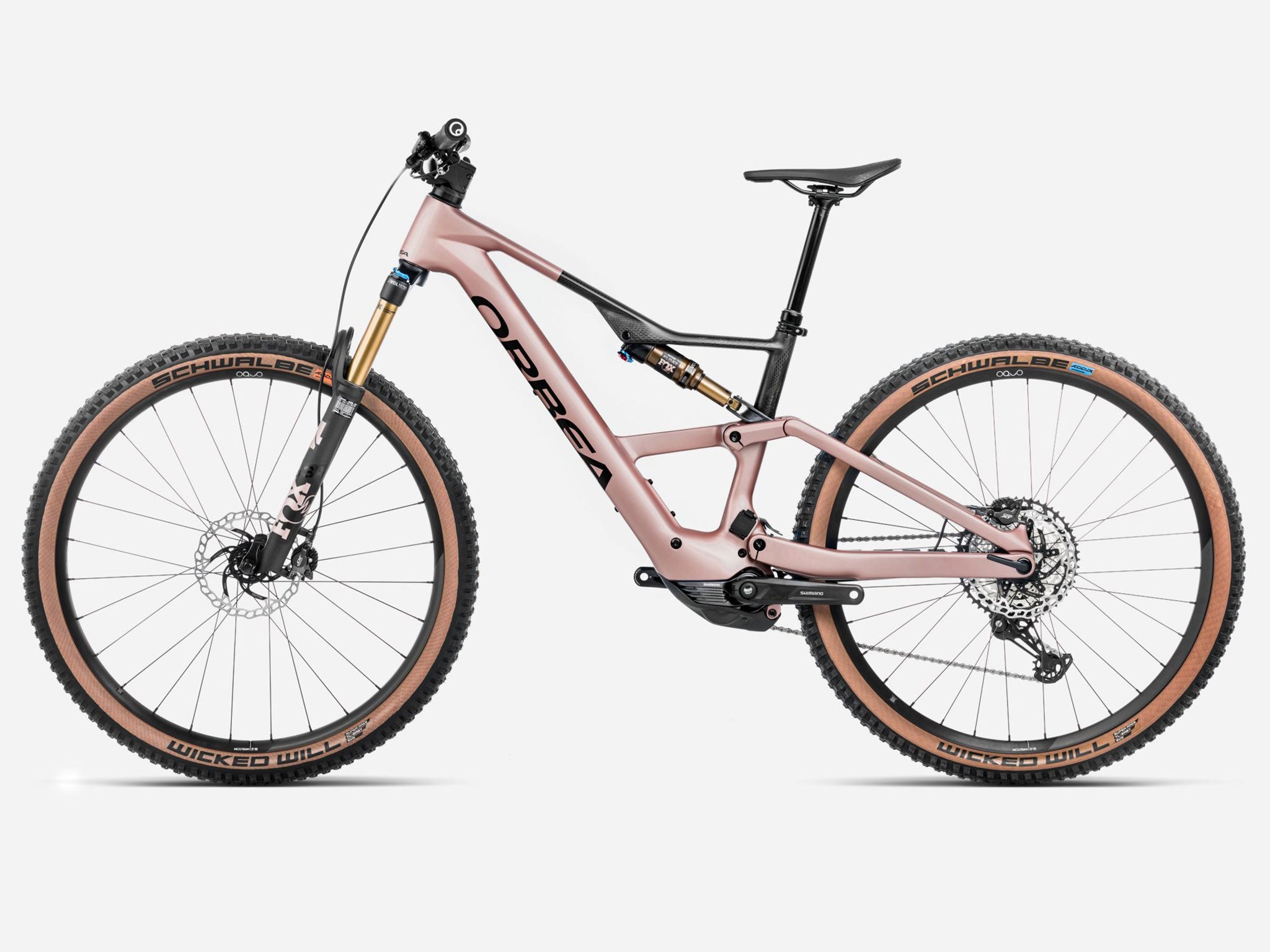

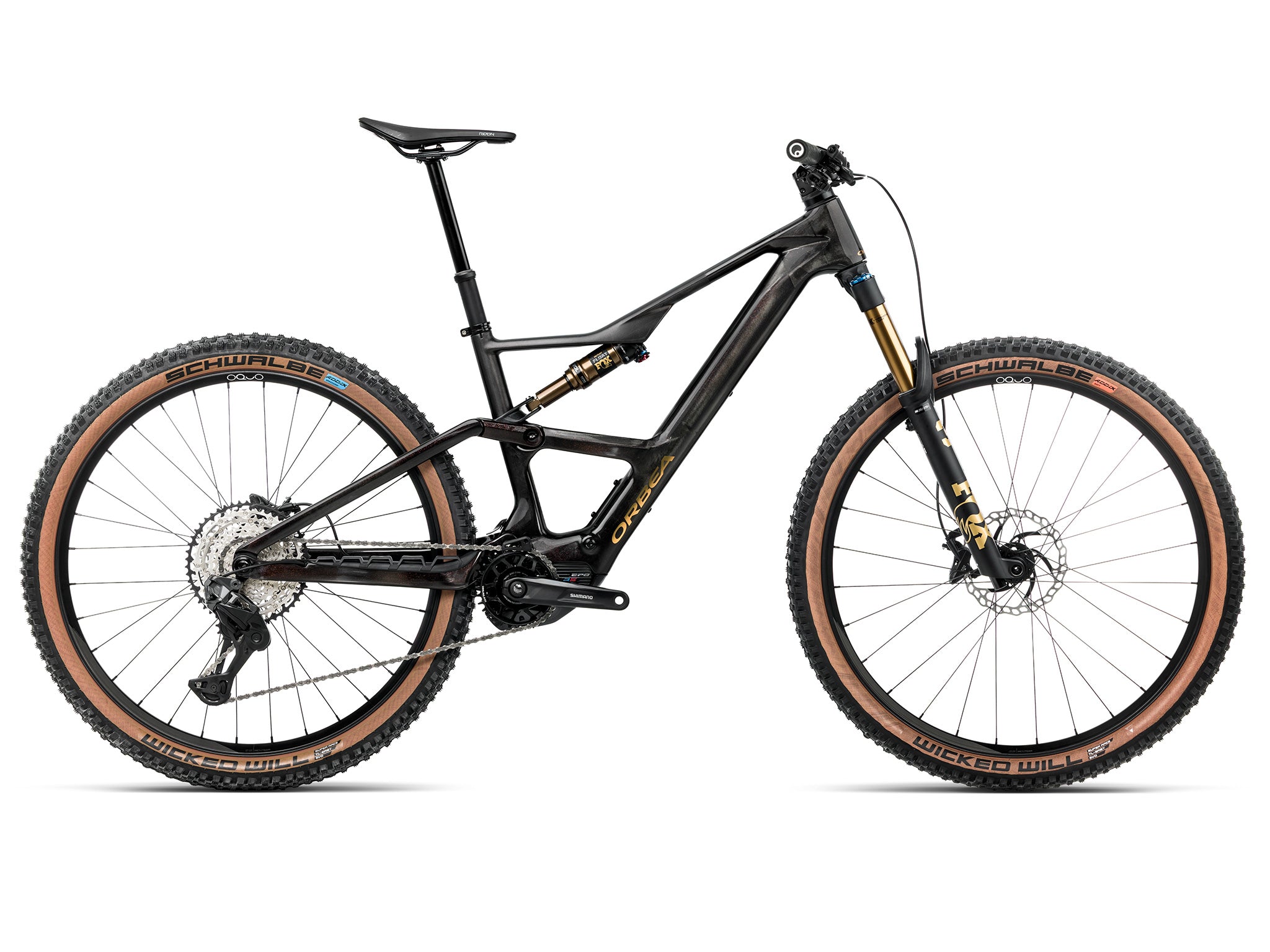

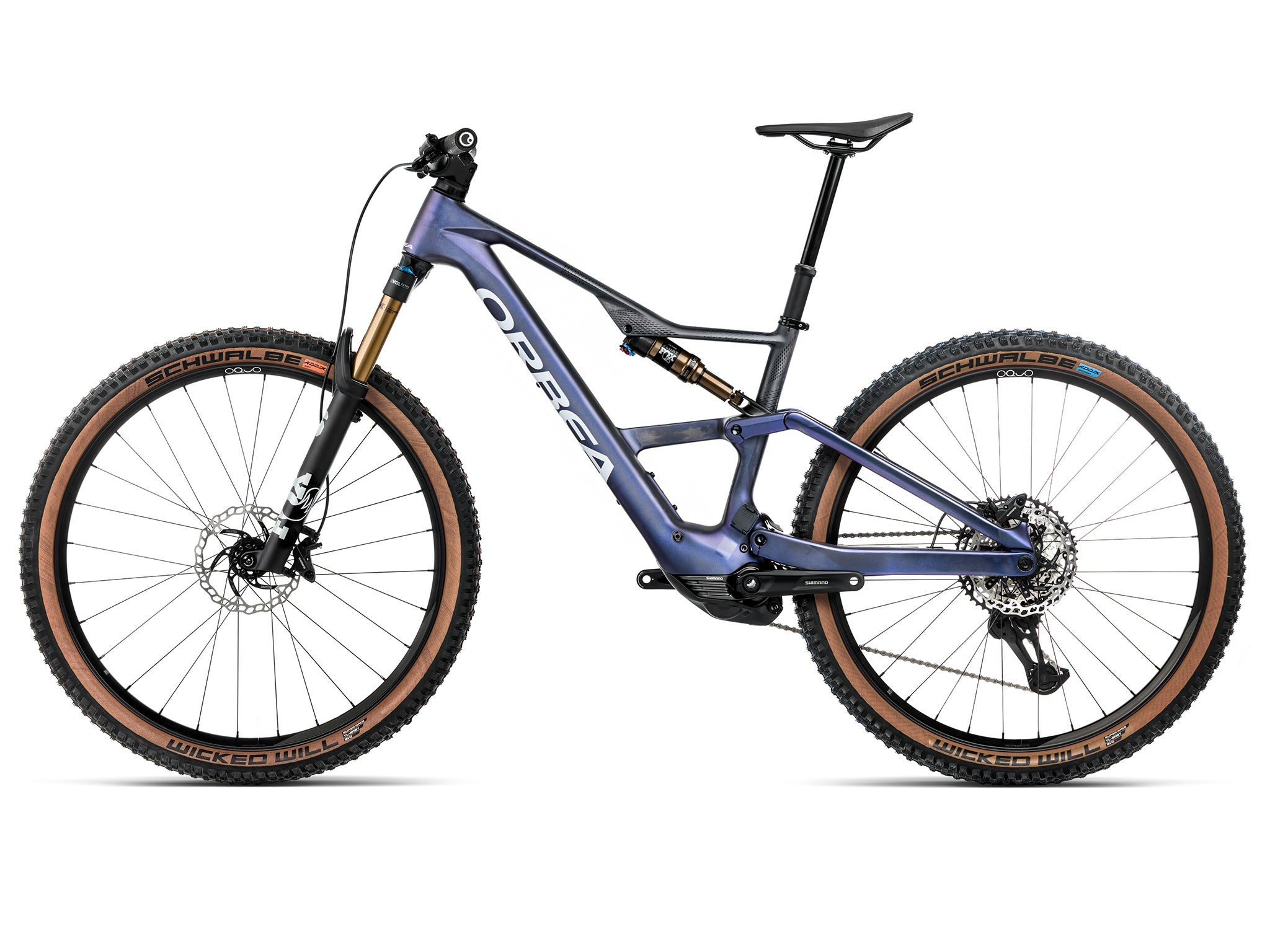

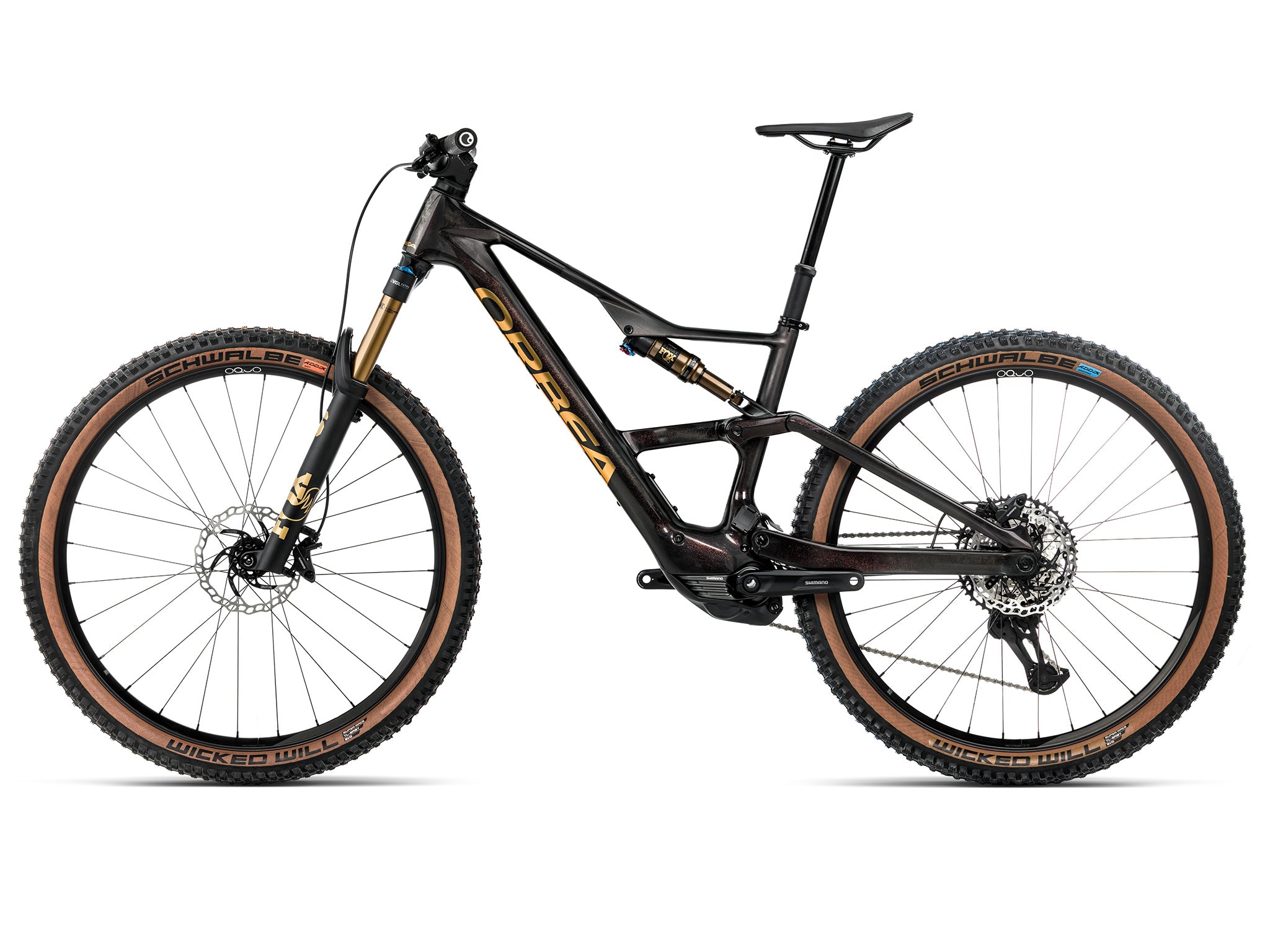

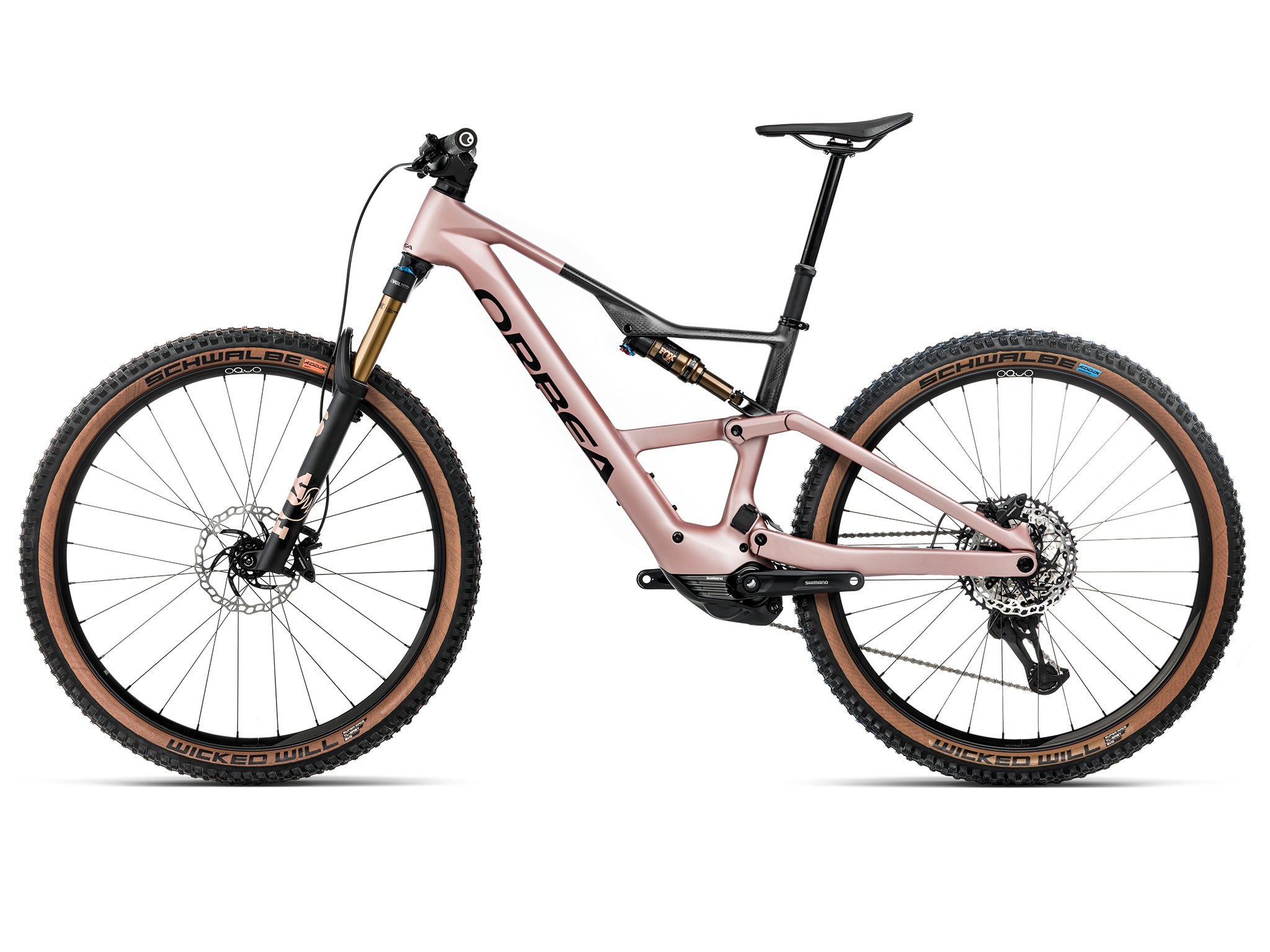

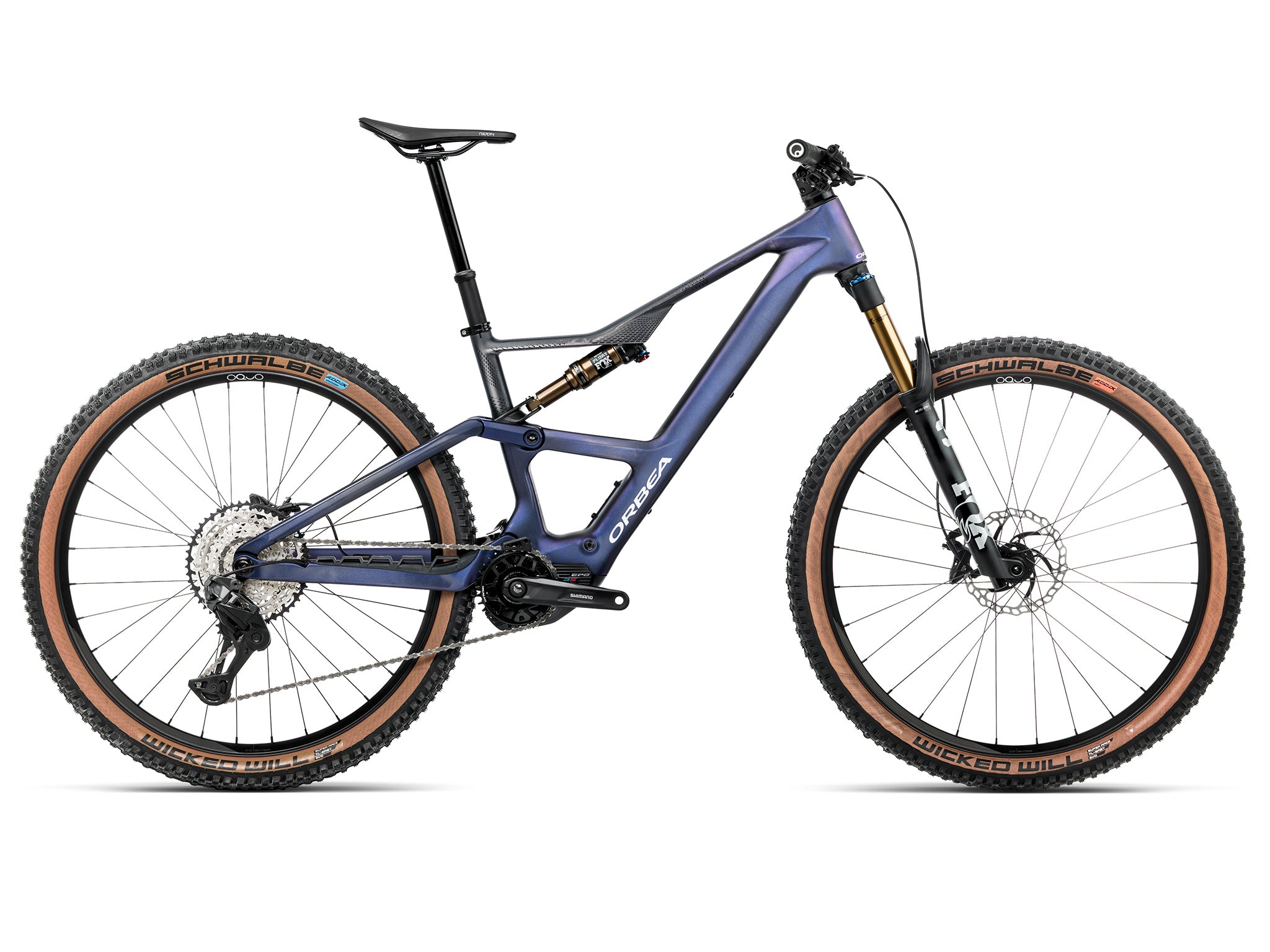

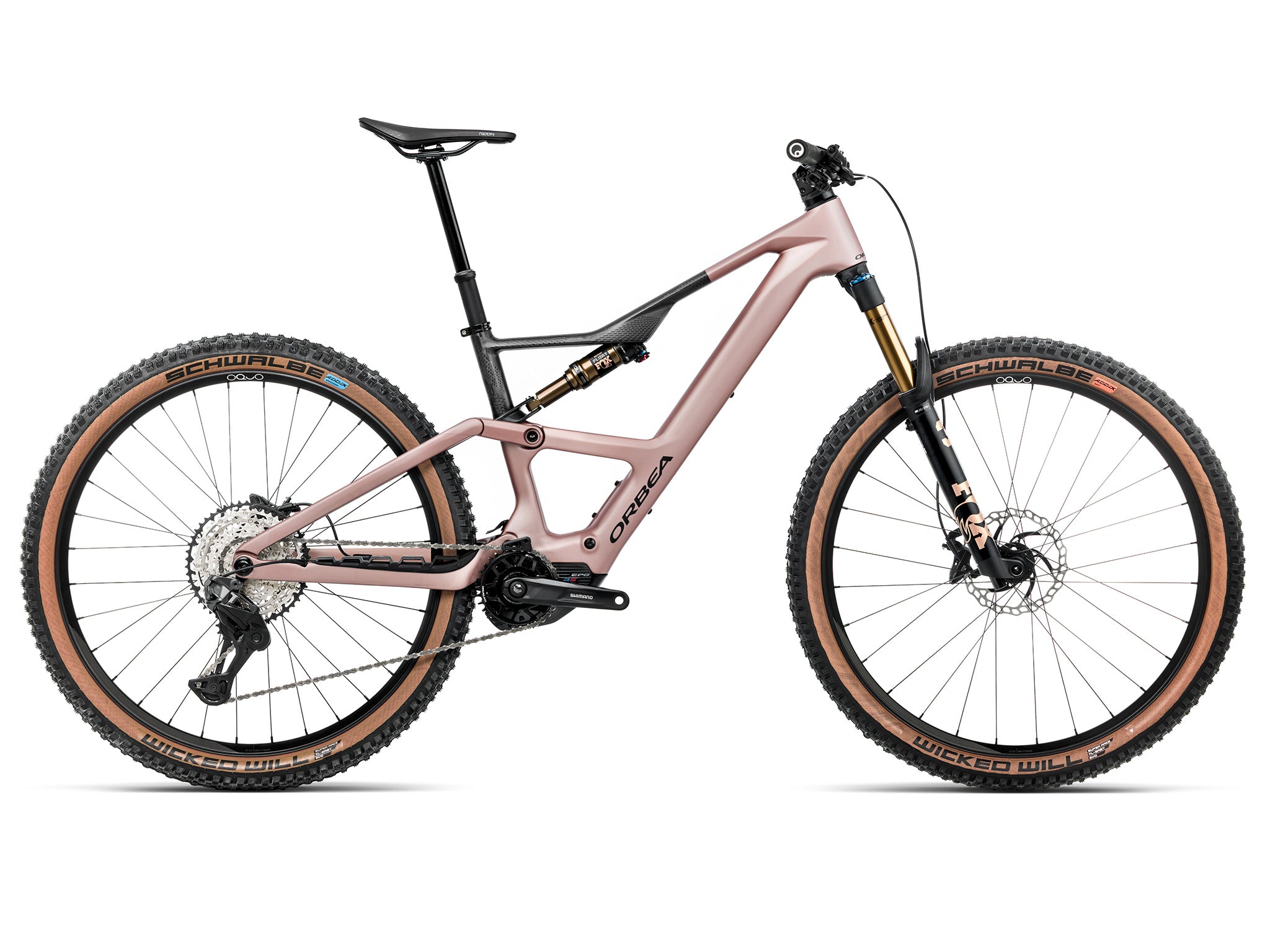

Orbea Rise SL OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
Shock
Fox Float Factory 2-Pos Adjust Evol LV Kashima custom tune 210x50mm
Fork
Fox 36 Float SL Factory 140, Grip X, 15x110, Kashima
Steerer tube
Alloy 1-1/2", Black Oxidated Bearing
Ebike
Battery
Orbea Internal 420Wh
RANGE EXTENDER
N/A
Motor
Shimano EP801 RS Gen2 MC
Display
N/A
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote
Orbea System Controller with eDropper Remote
Drivetrain
Chainring
e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Crank
Shimano Steps EM600
Shifters
Shimano XT M8250
Cassette
Shimano CS-M7100 10-51t 12-Speed
Rear derailleur
Shimano XT M8260 SGS
Chain
Shimano M7100
Chainguide
Orbea eBike chainguide
Cockpit
Handlebar
OC Mountain Control MC21 Alu SL, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Brakes
Shimano M6120 Hydraulic Disc
Rotors
Galfer Wave Rotors 180mm front / 180mm rear
Brakes Configuration
N/A
Wheels
Wheels
Oquo Mountain Control MC32TEAM
Tyres
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown
Tyres
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Components
Seatpost
OC Mountain Control MC10, 31.6mm, Electronic Dropper
Saddle
Fizik Terra Ridon X5 145mm
Grips
Ergon GXR
Accessories
Lights
N/A
Tools
OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal)
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
