Frameset
Frame

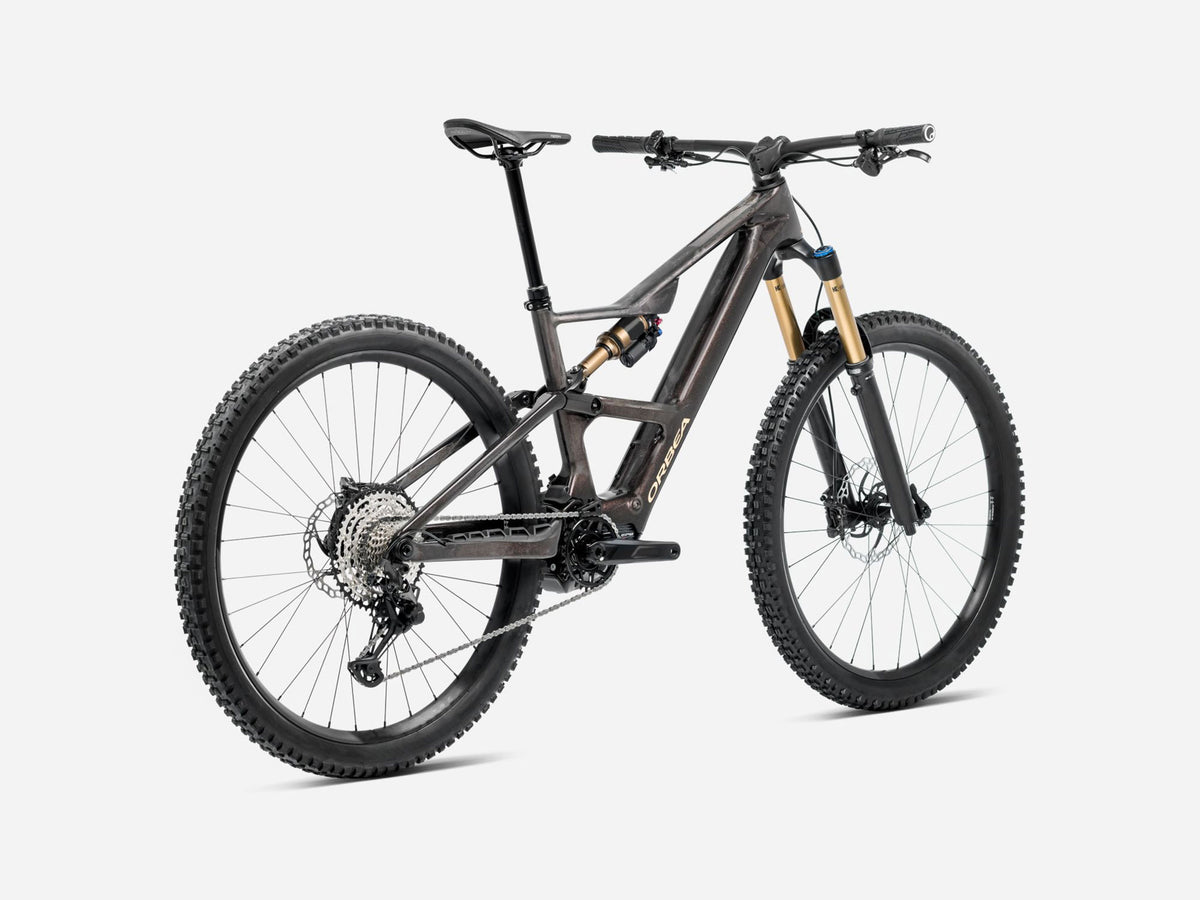

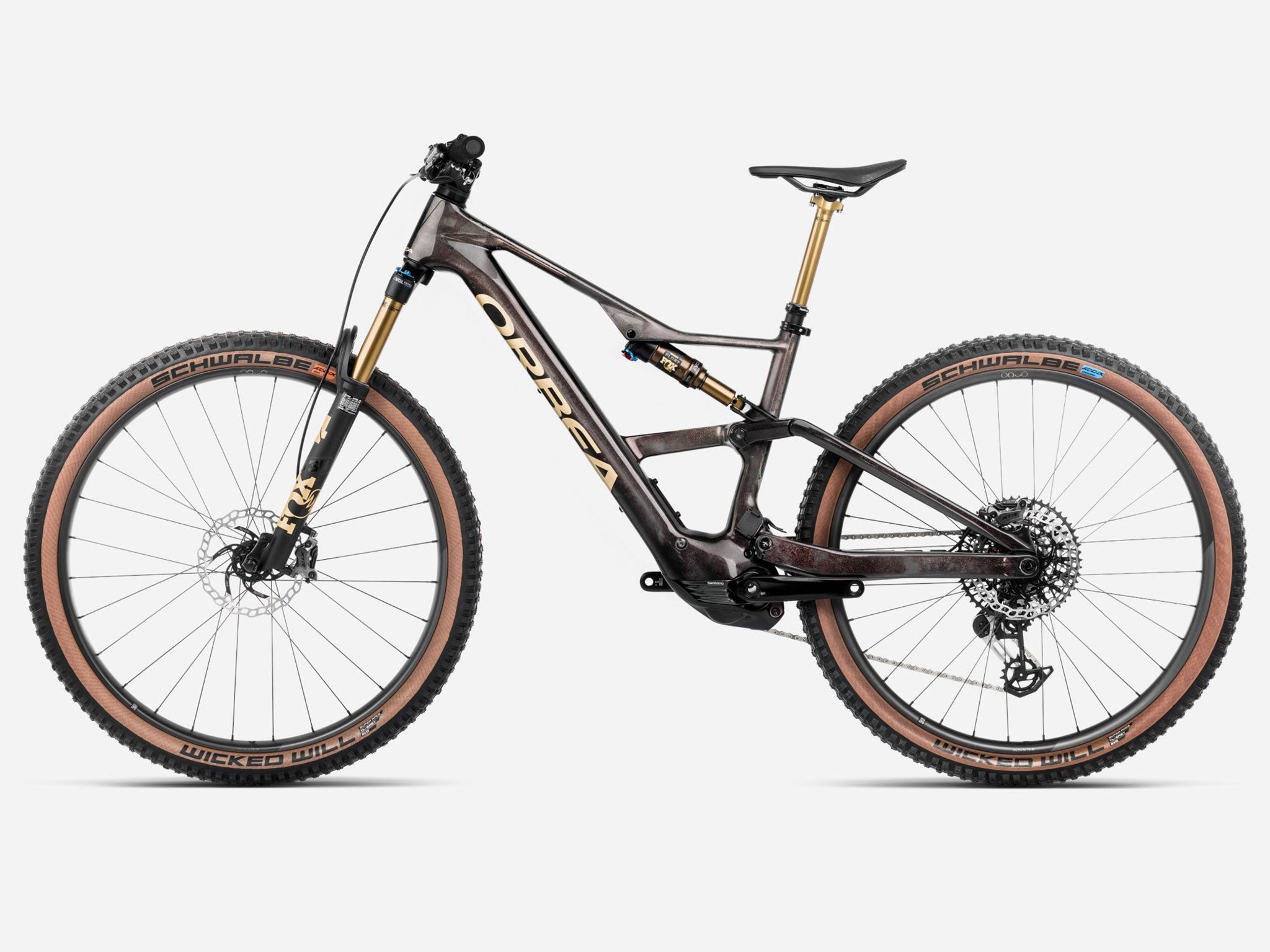

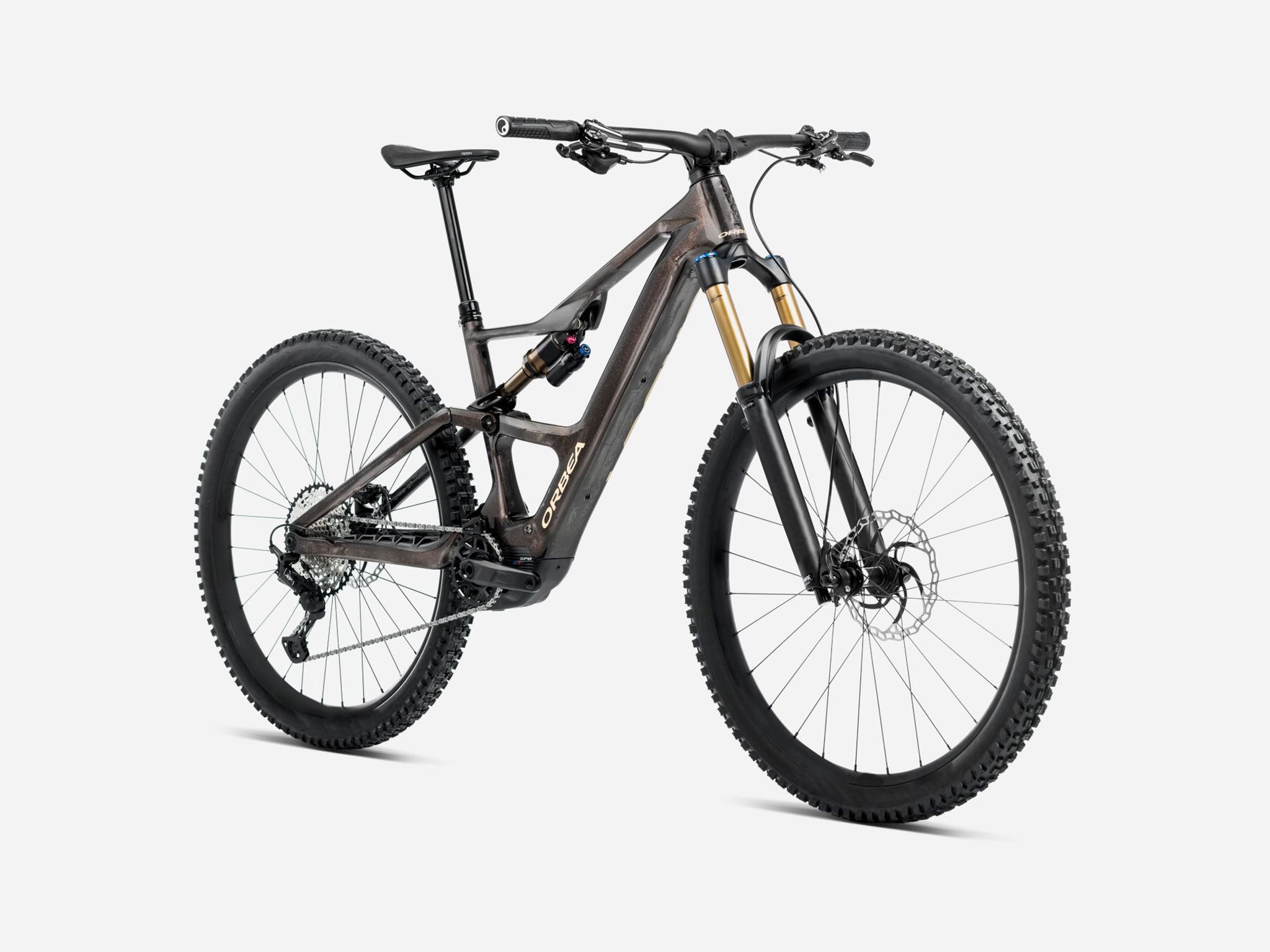

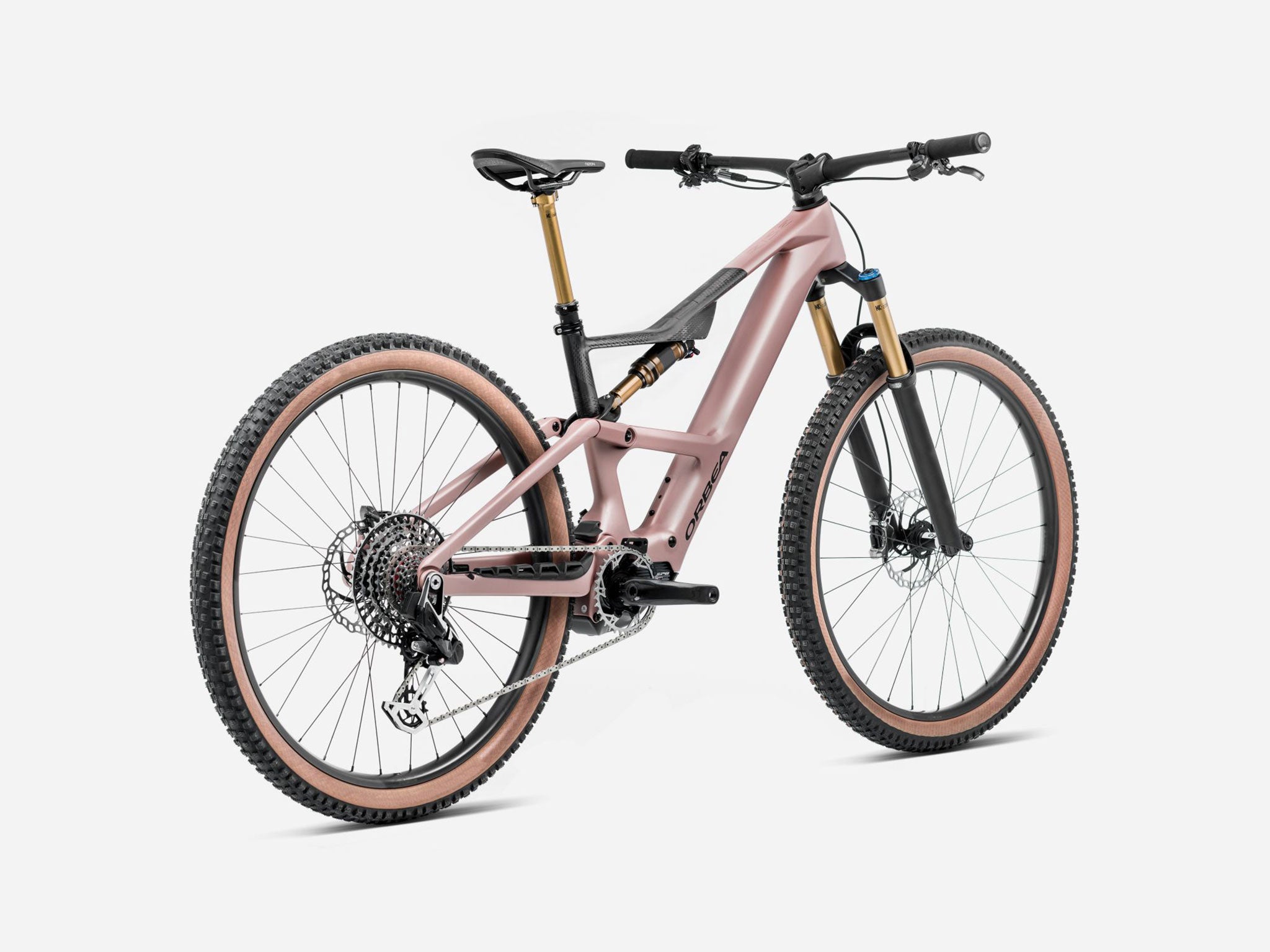

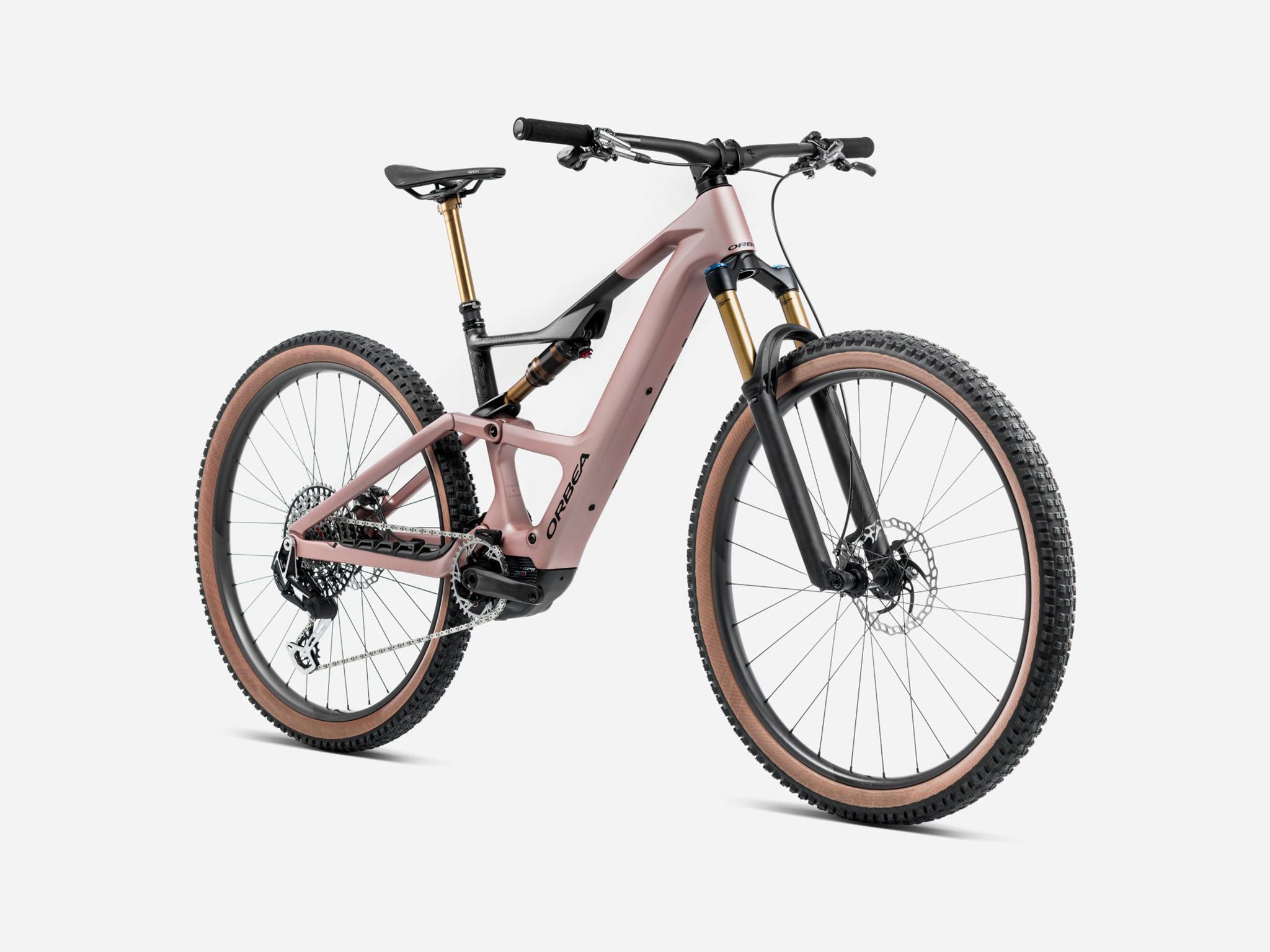

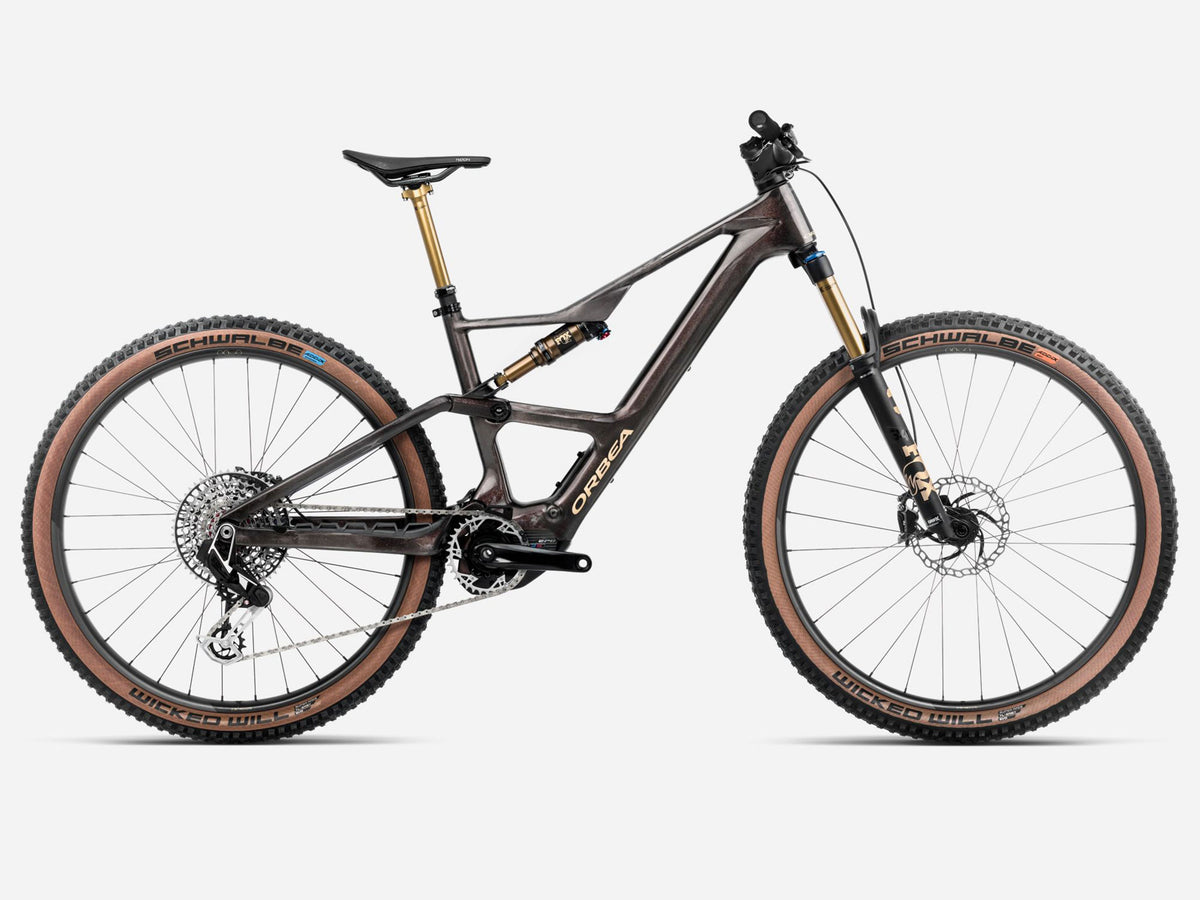

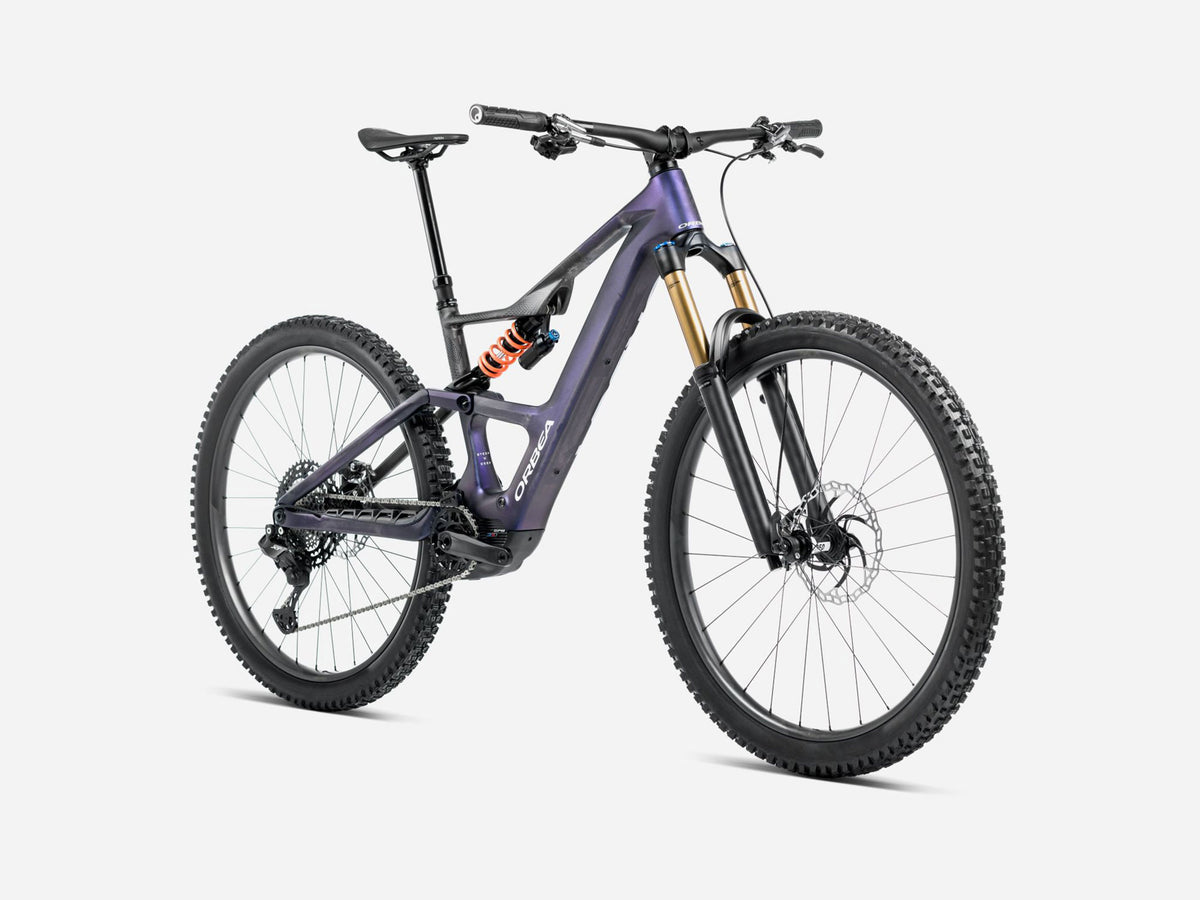

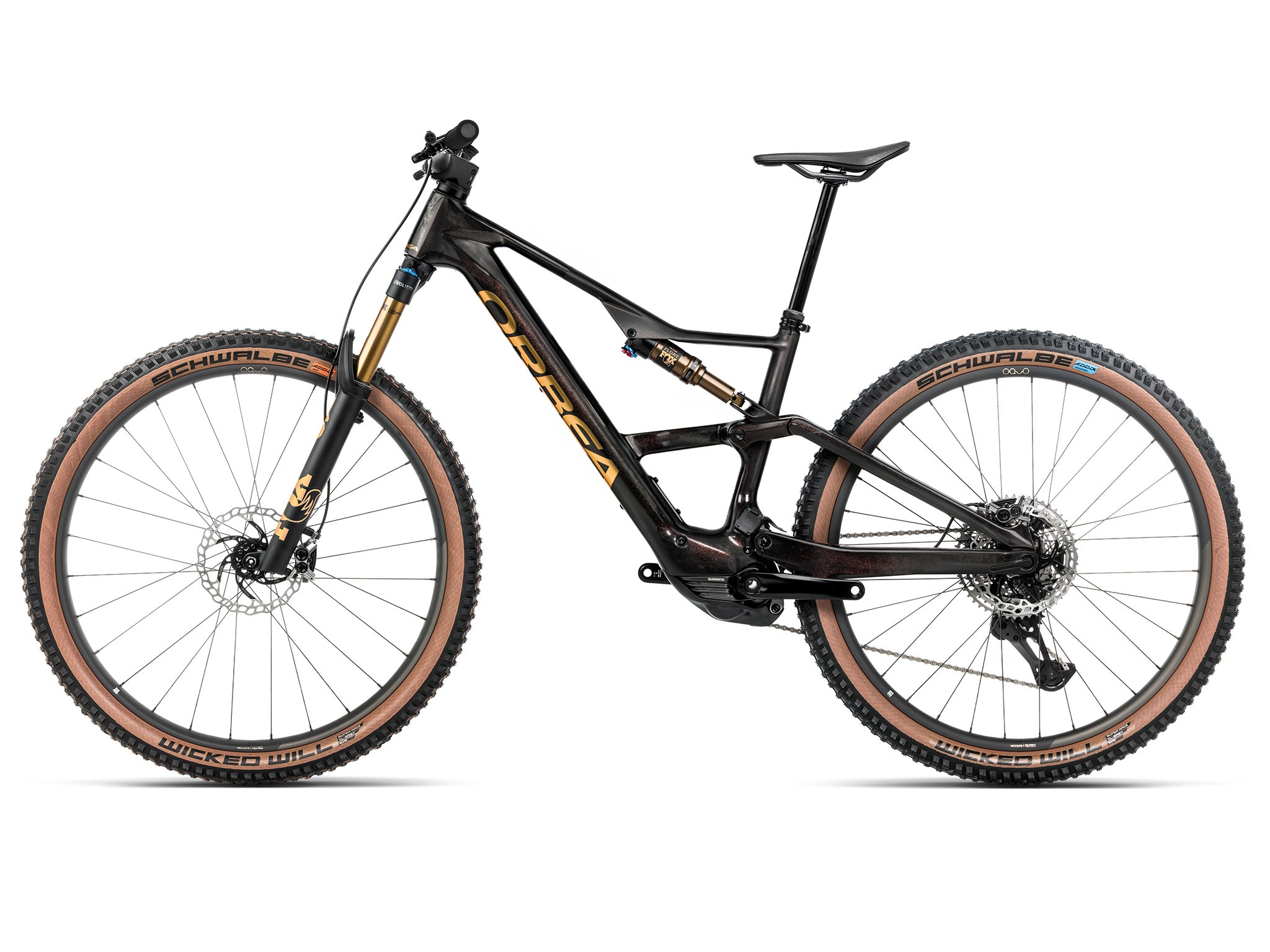

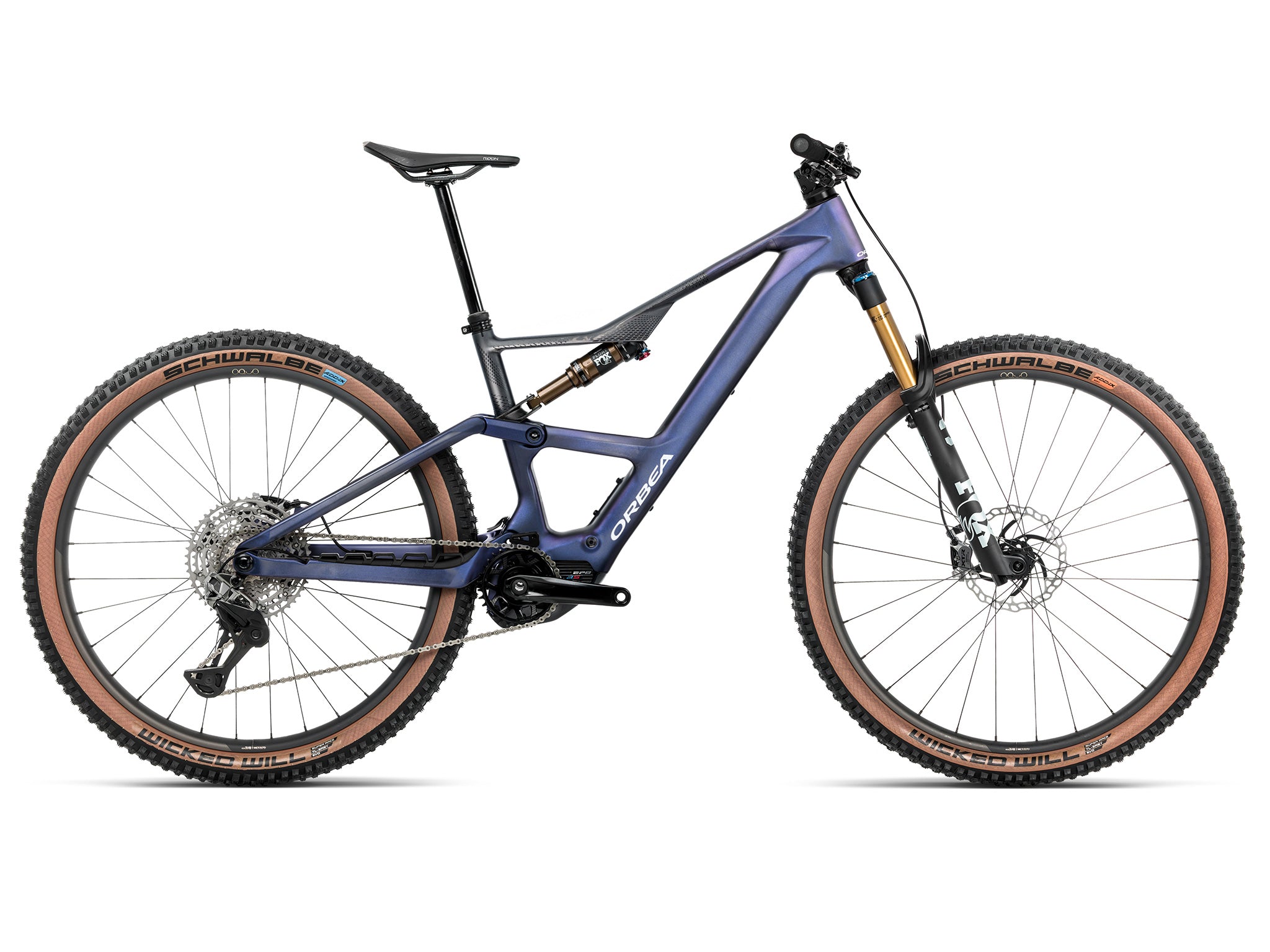

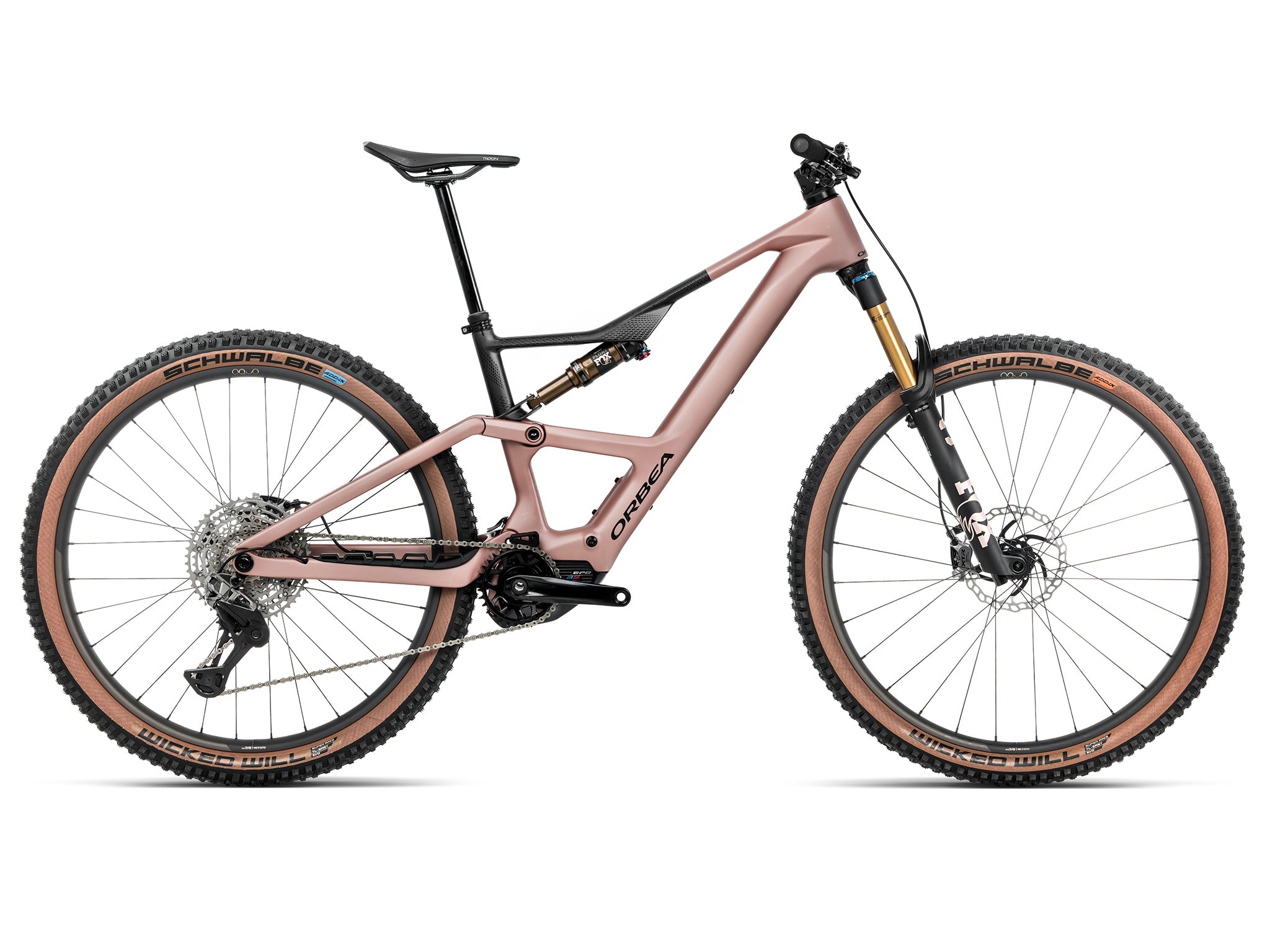

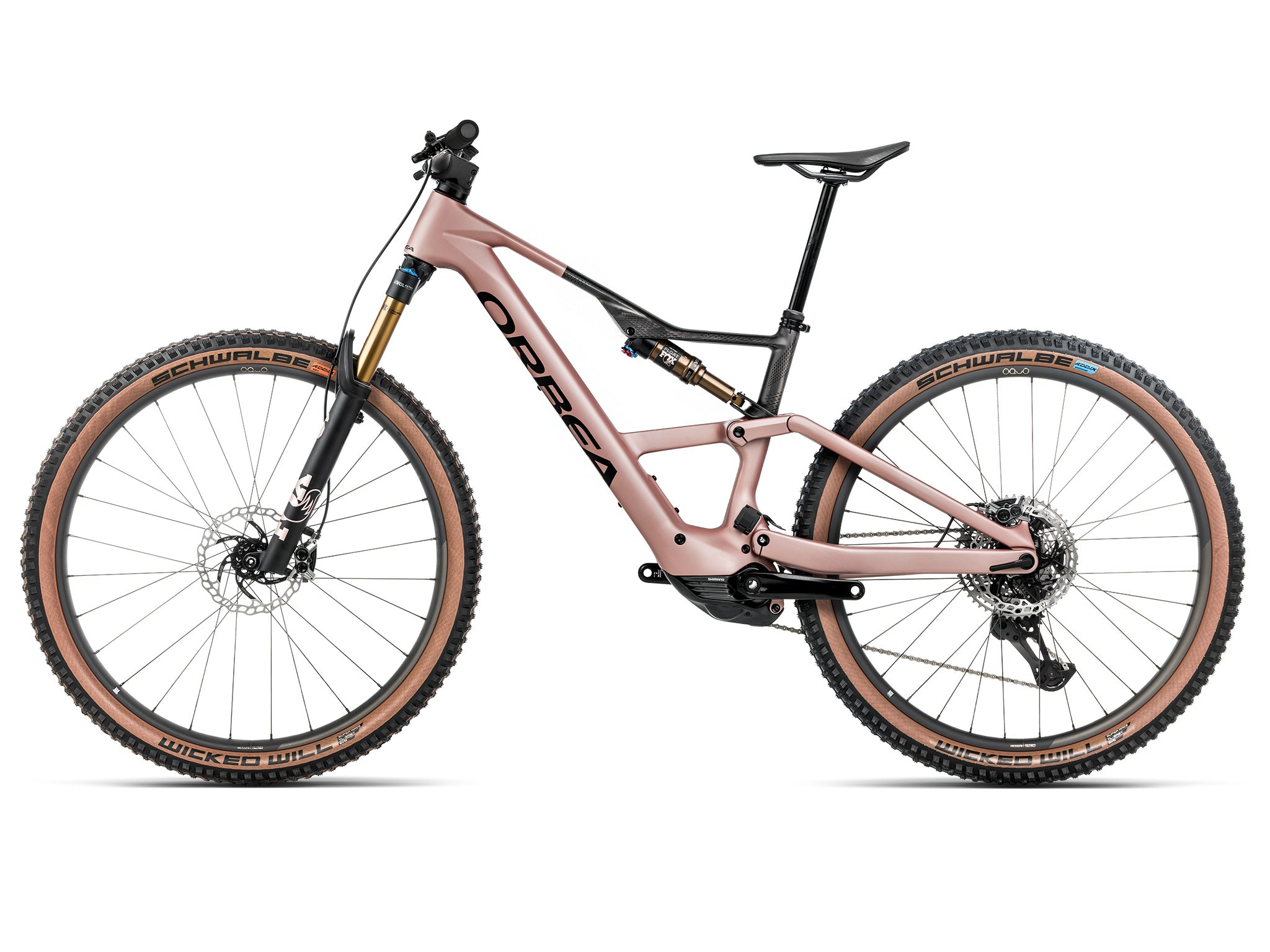

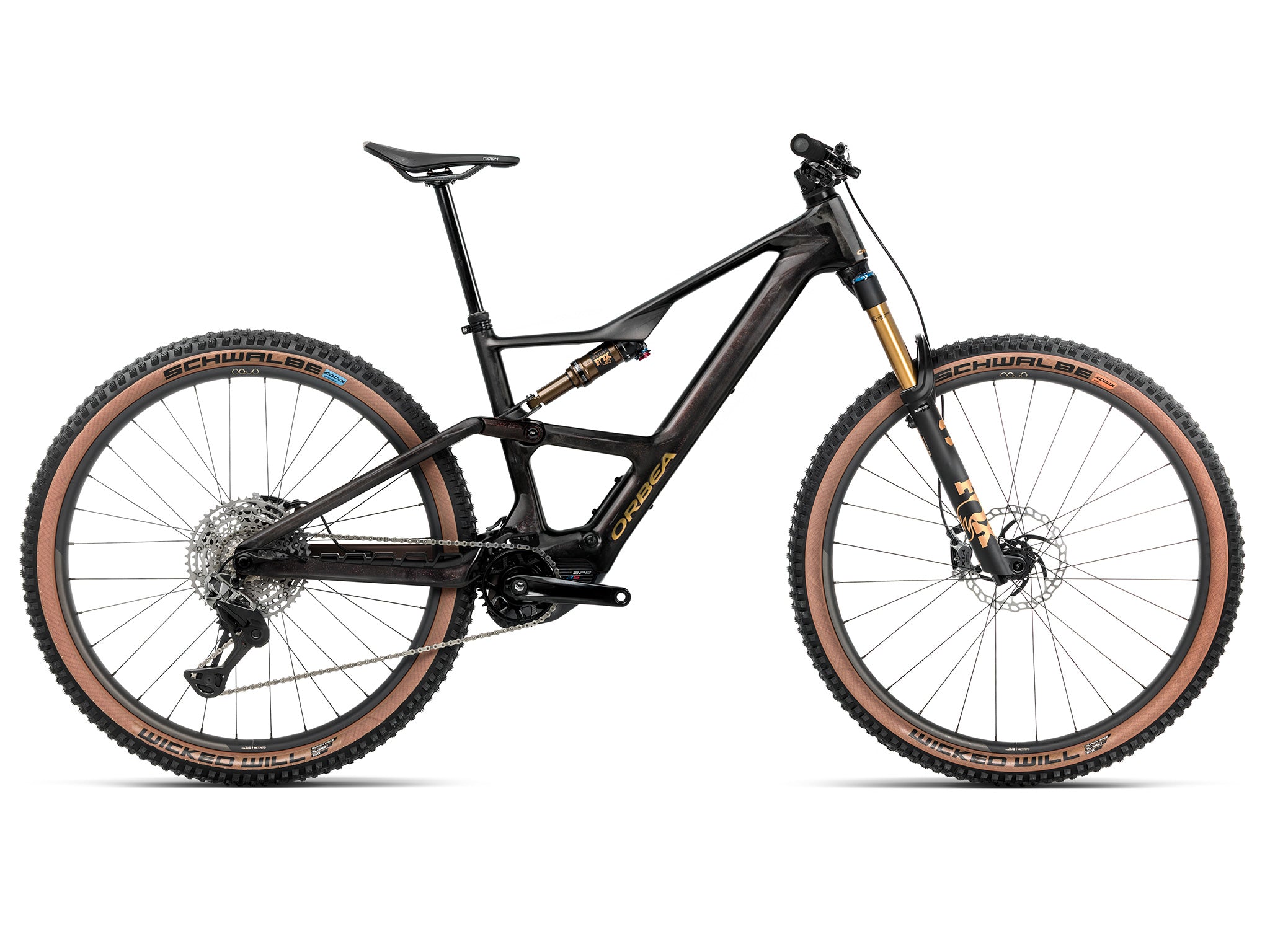

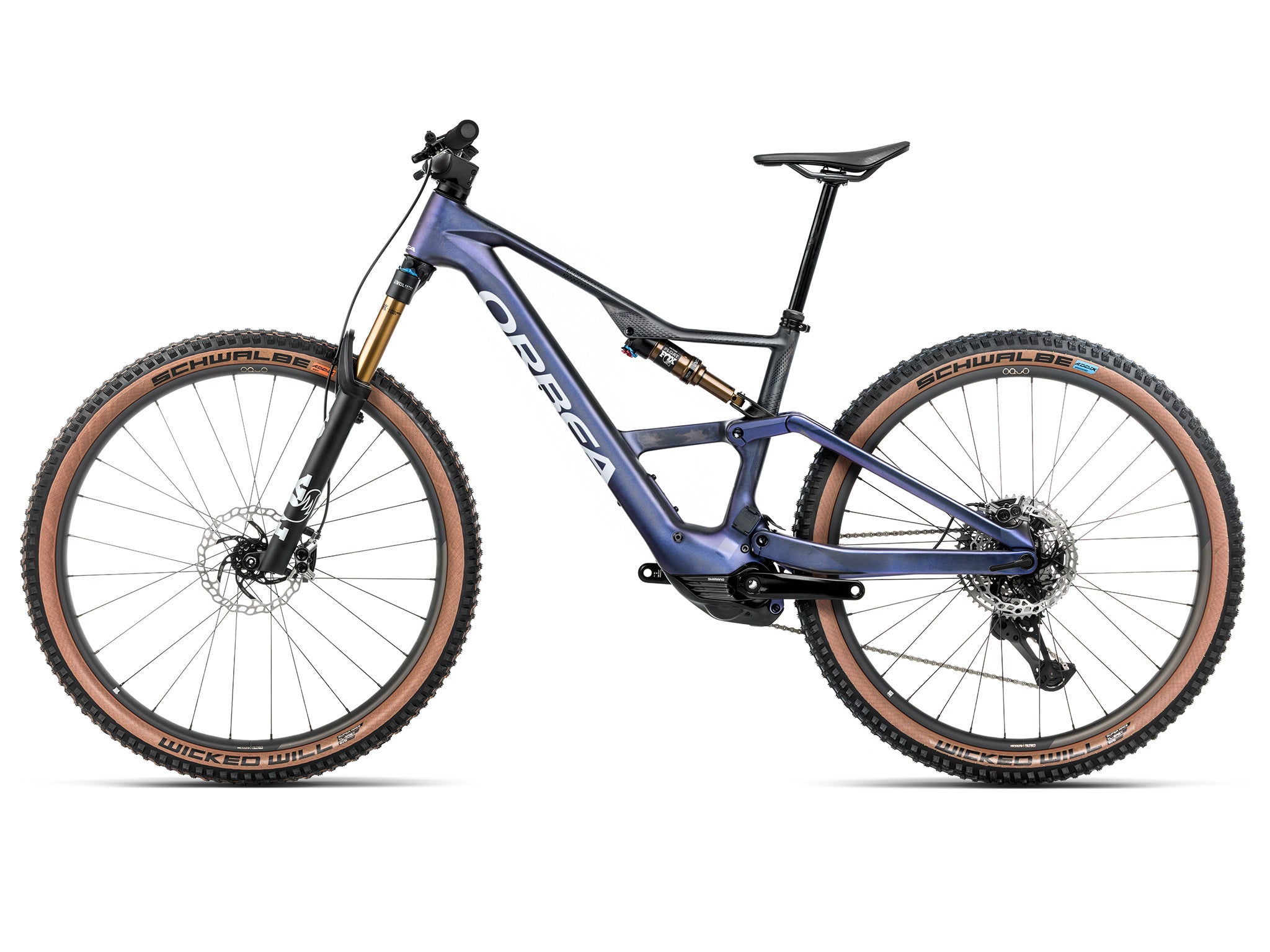

Orbea Rise SL OMR 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
Shock
Fox Float Factory 2-Pos Adjust Evol LV Kashima custom tune 210x50mm
Fork
Fox 36 Float SL Factory 140, Grip X, 15x110, Kashima
Steerer tube
Alloy 1-1/2", Black Oxidated Bearing
Ebike
Battery
Orbea Internal 420Wh
RANGE EXTENDER
N/A
Motor
Shimano EP801 RS Gen2 MC
Display
N/A
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote
Orbea System Controller with eDropper Remote
Drivetrain
Chainring
e*thirteen Helix Race e*spec Direct Mount 32T 55mm ChainLine
Crank
Shimano Steps EM900
Shifters
Shimano XTR M9250
Cassette
Shimano CS-M9200 10-51t 12-Speed
Rear derailleur
Shimano XTR M9260 12s
Chain
Shimano CN-9100
Chainguide
Orbea eBike chainguide
Cockpit
Handlebar
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Stem
OC Mountain Control MC11 Alu SL, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Brakes
Shimano XTR 9200 Hydraulic Disc
Rotors
Galfer Wave Rotors 180mm front / 180mm rear
Brakes Configuration
N/A
Wheels
Wheels
Oquo Mountain Control MC32LTD
Tyres
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown
Tyres
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Components
Seatpost
OC Mountain Control MC10, 31.6mm, Electronic Dropper
Saddle
Fizik Terra Ridon X1 145mm
Accessories
Lights
N/A
Tools
OC FLP Multitool MT-20, Hex 2, 3, 4, 5 + OC Rear axle lever (Hex 6 & valve core removal)
