Frameset
Frame

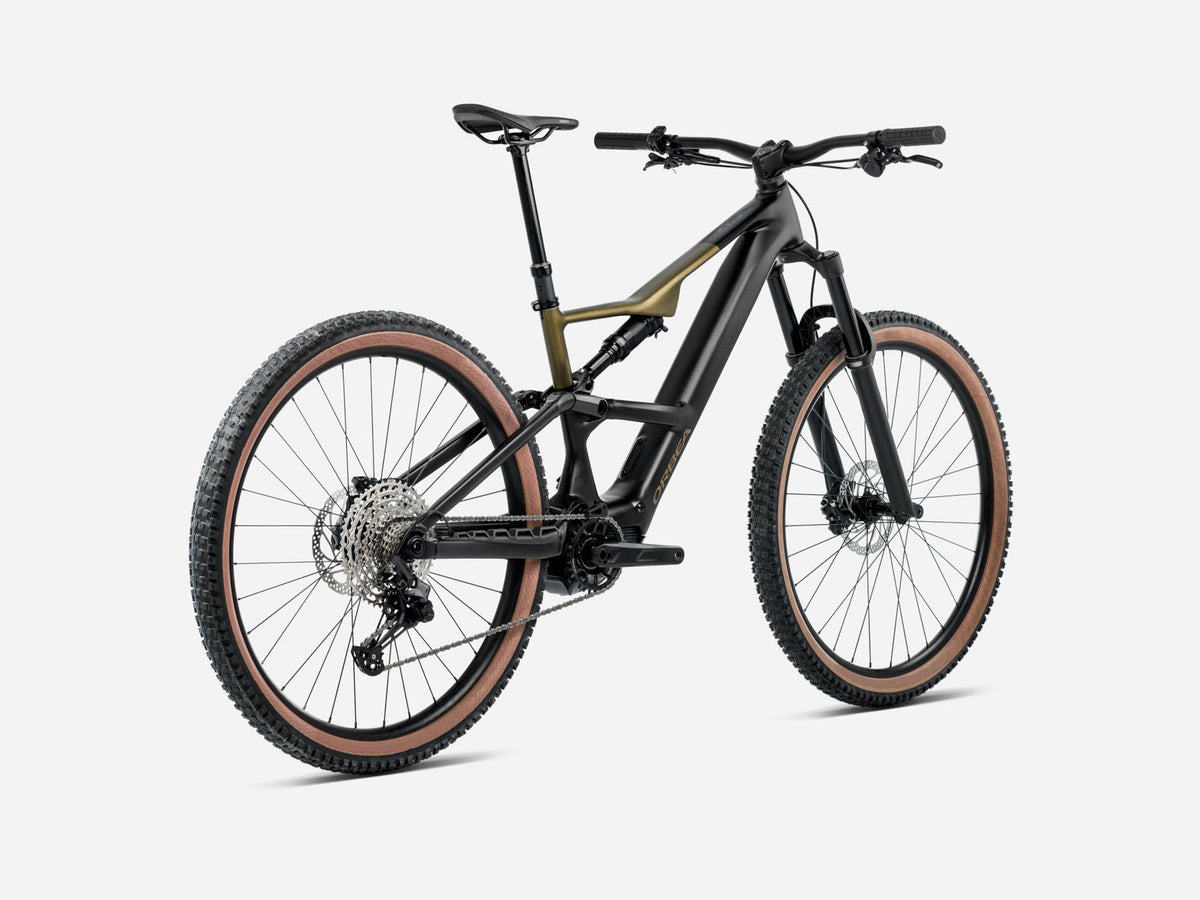

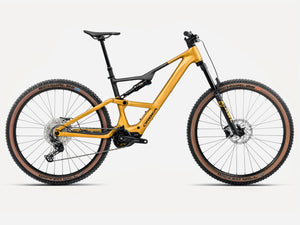

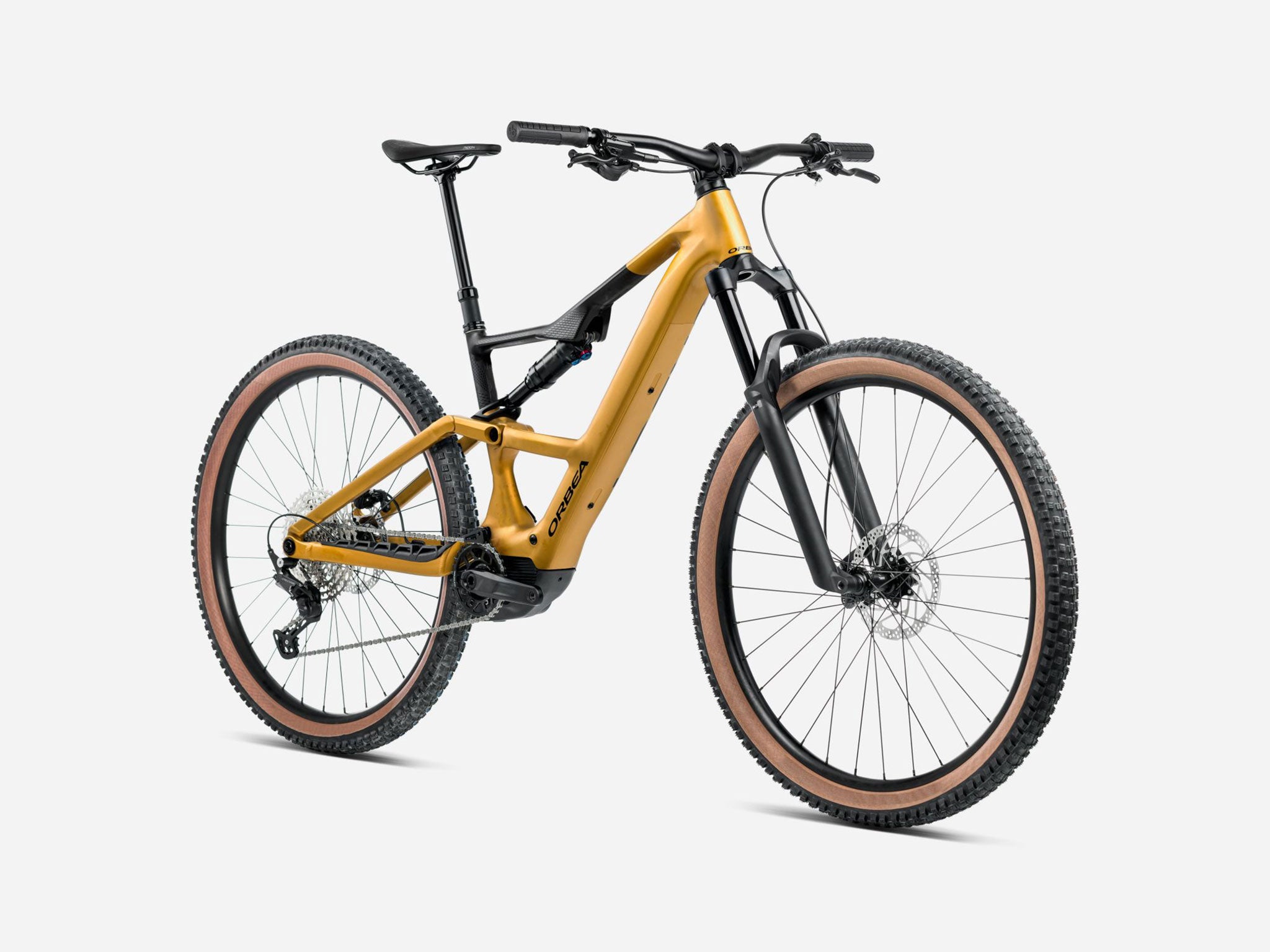

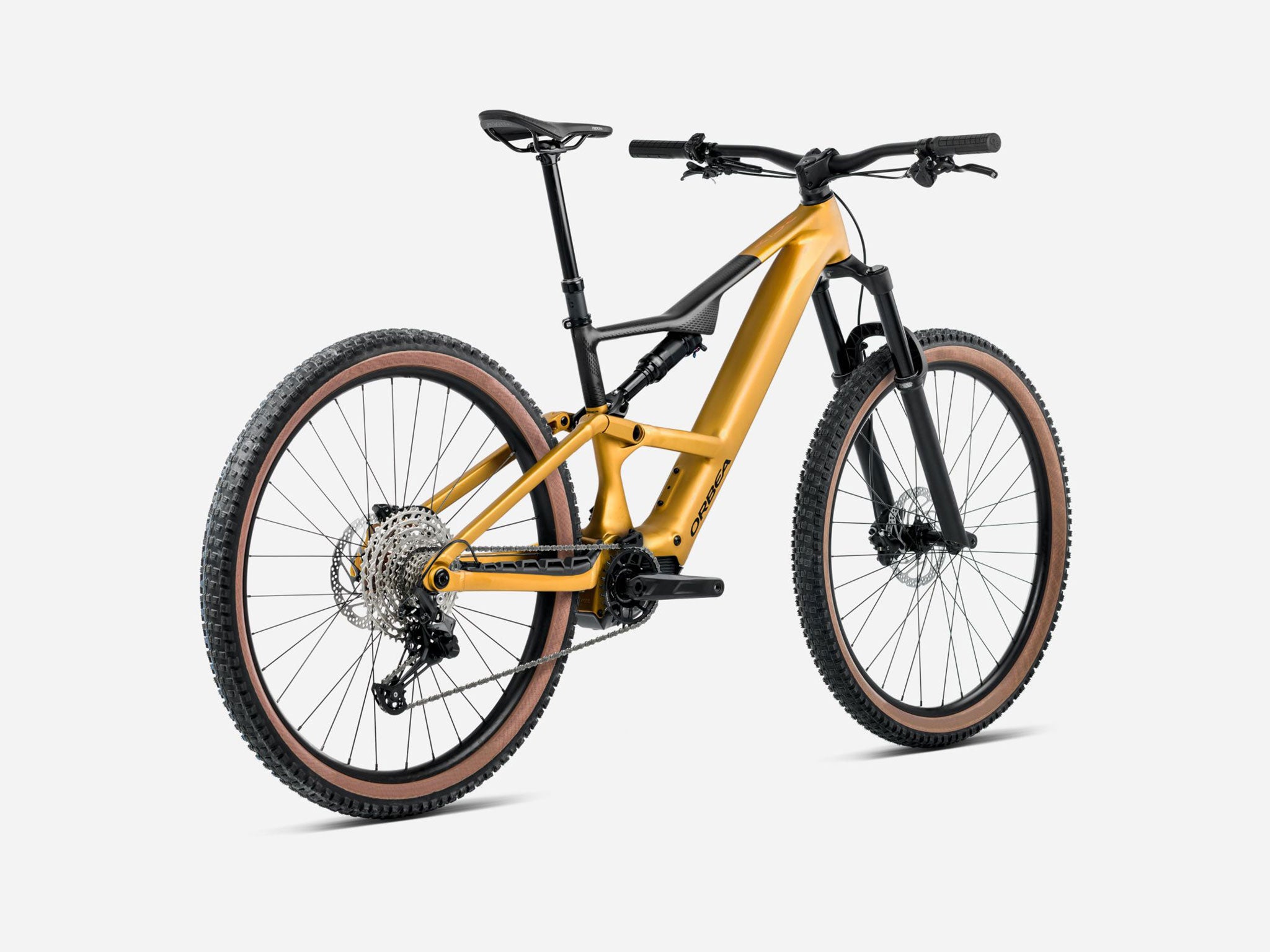

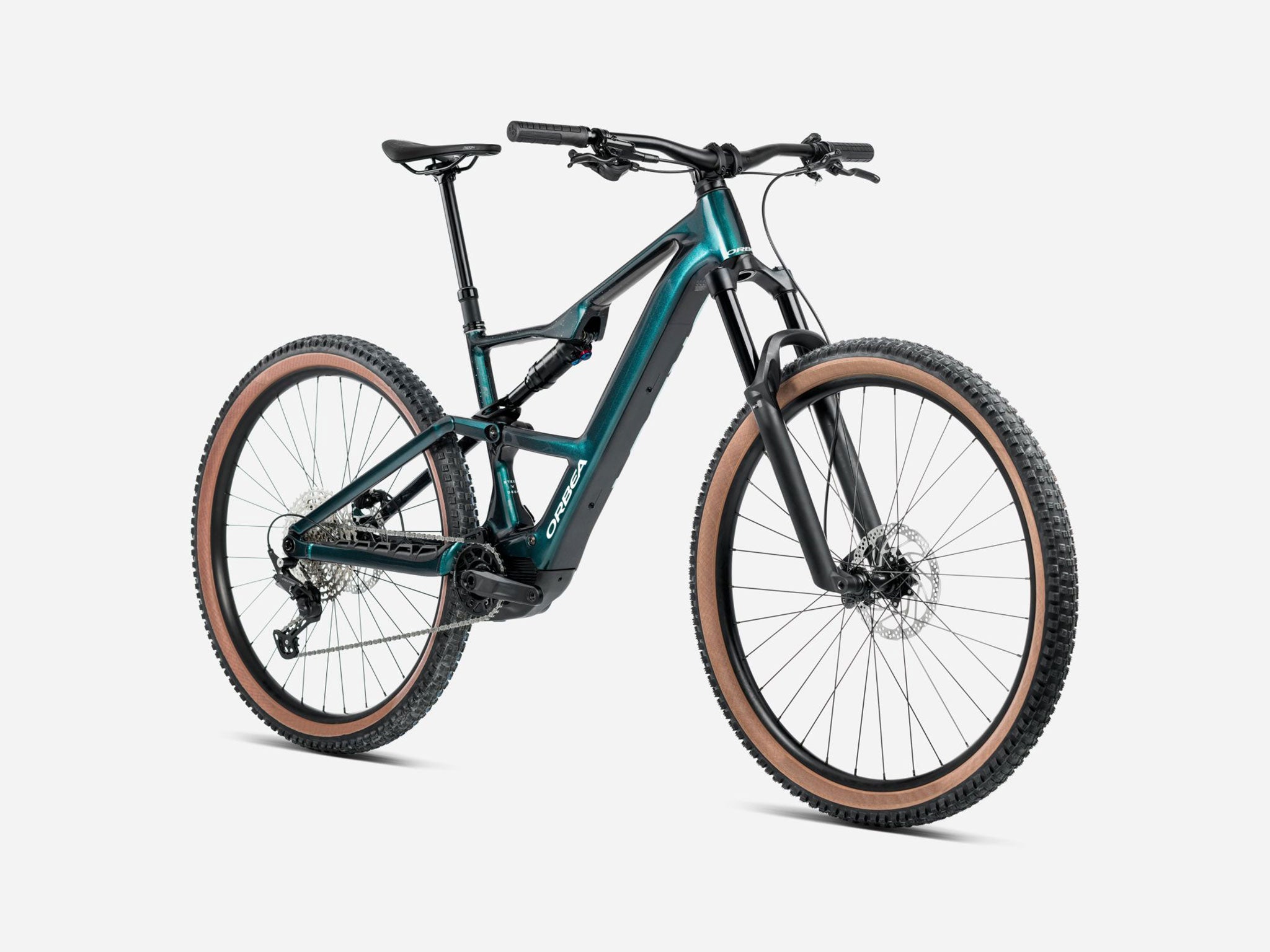

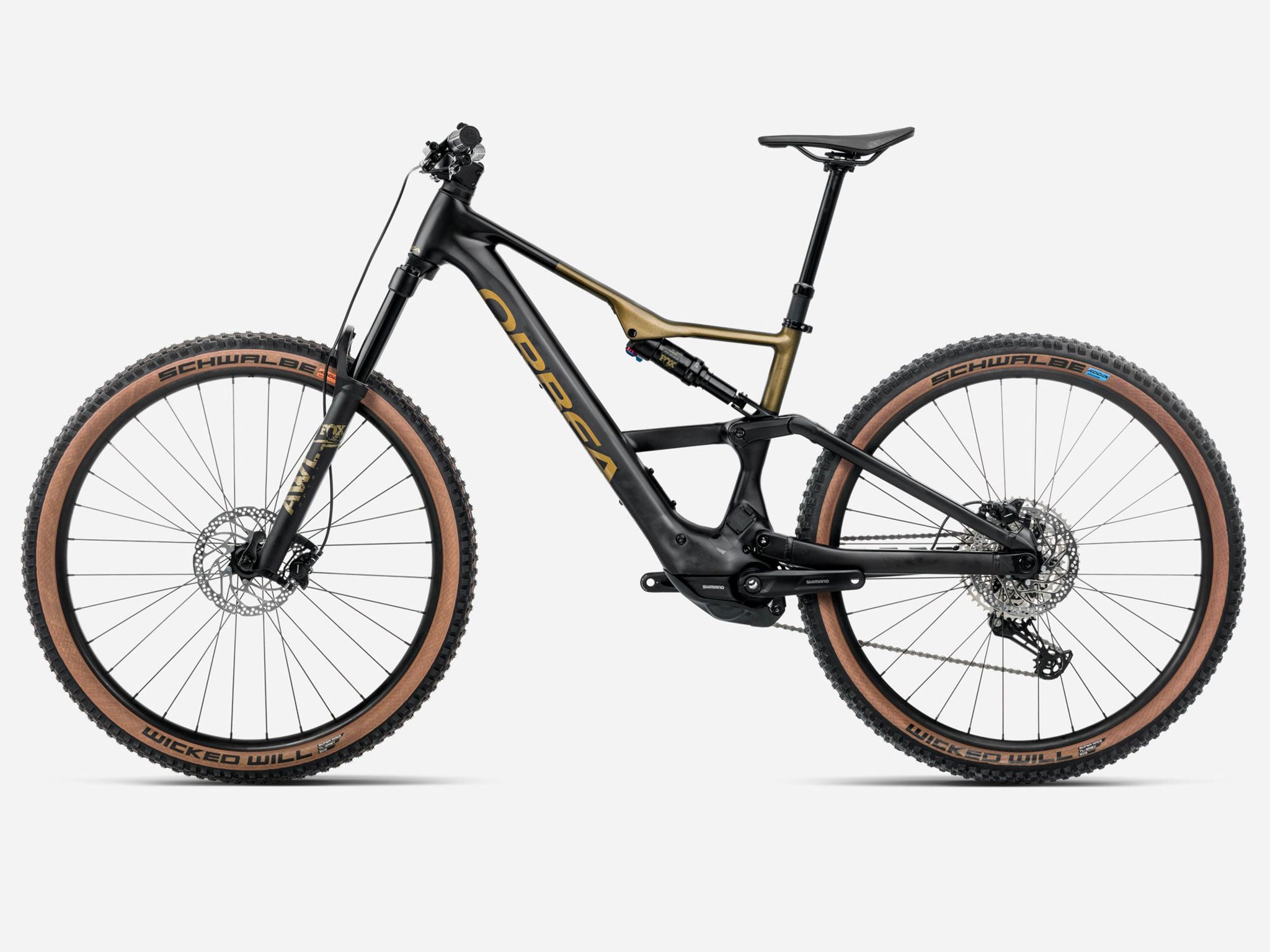

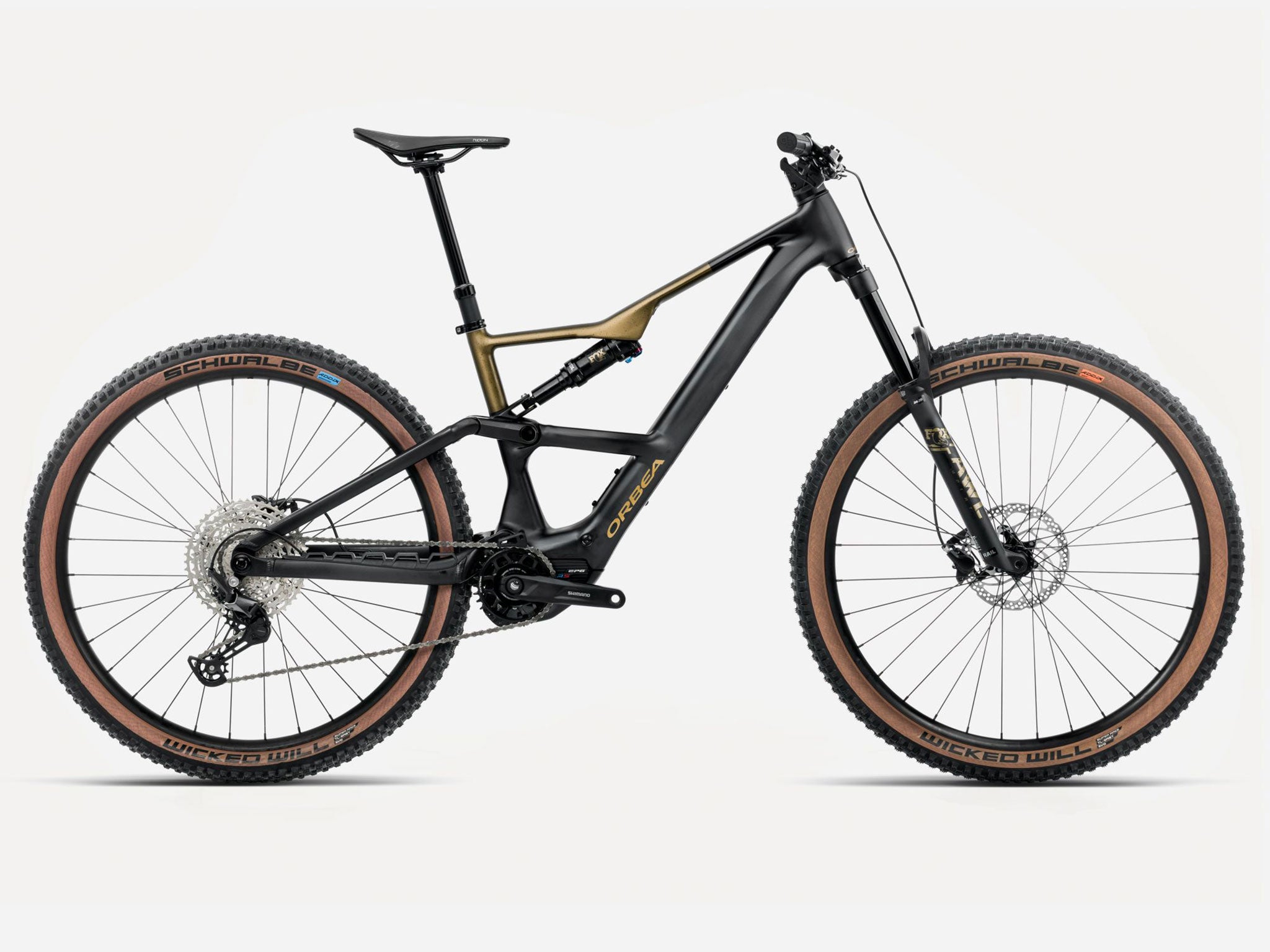

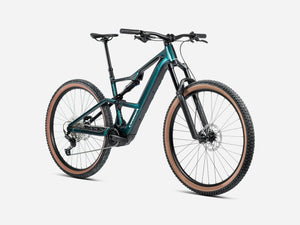

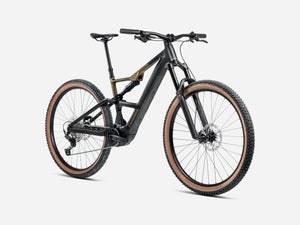

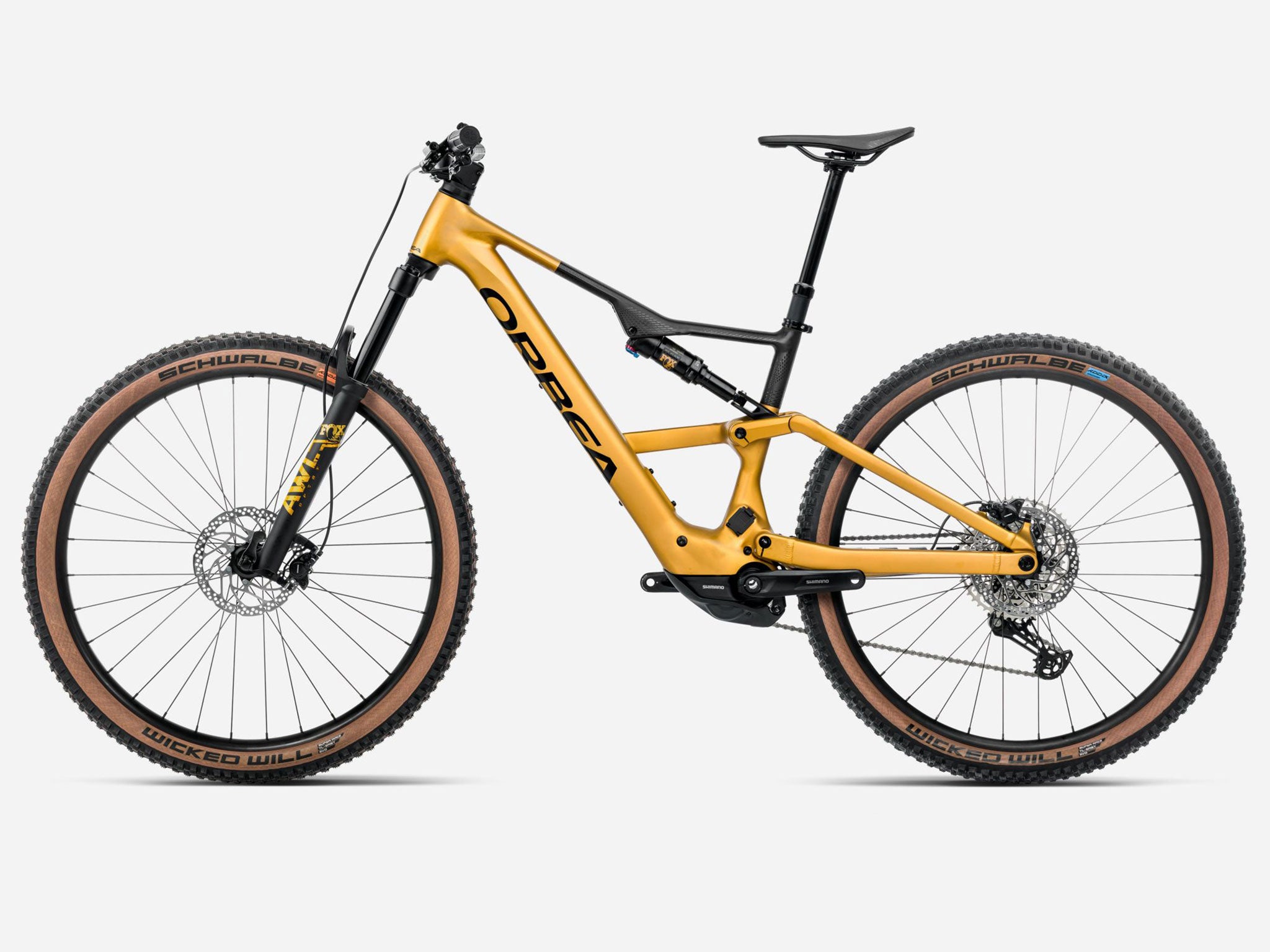

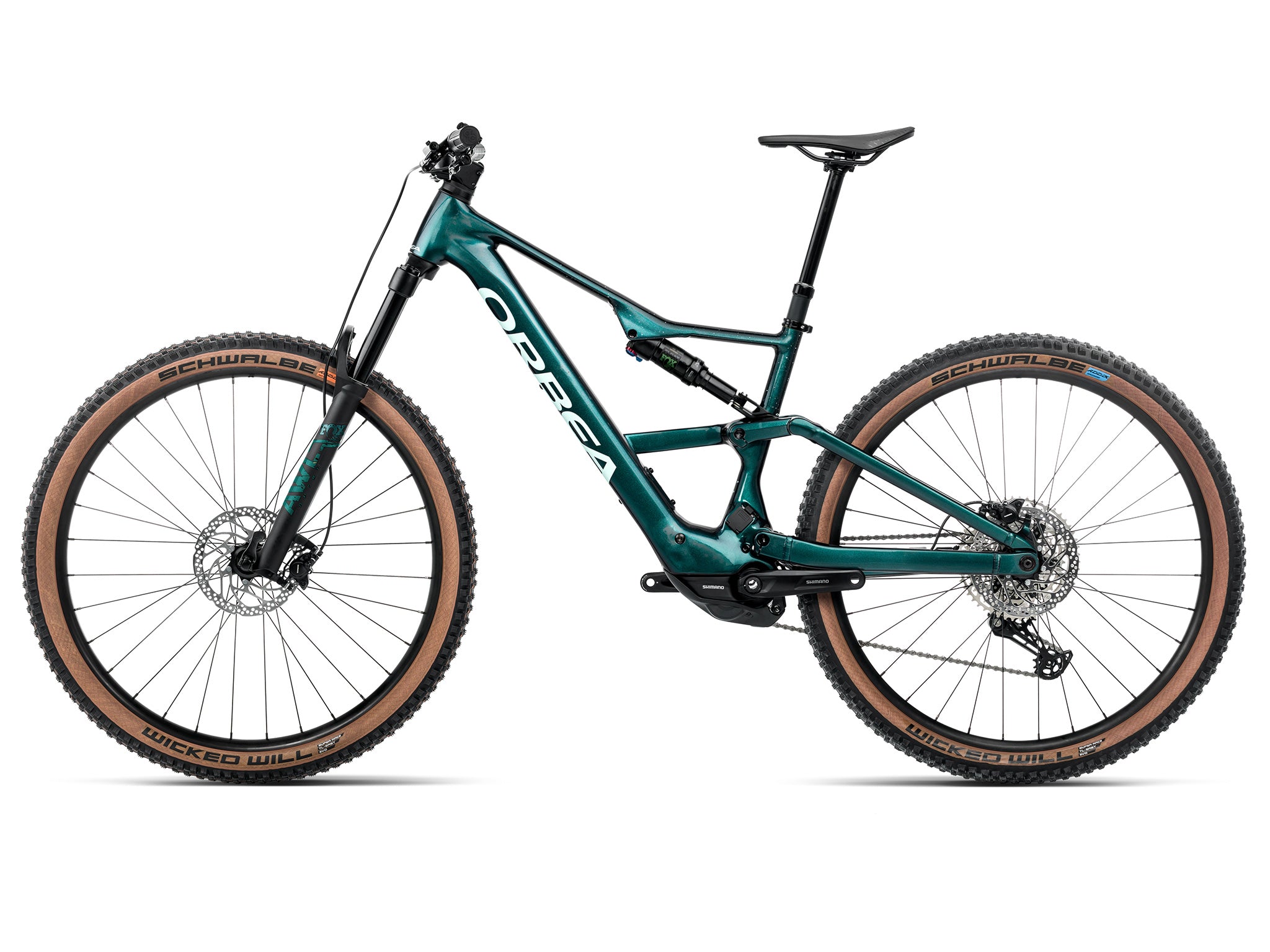

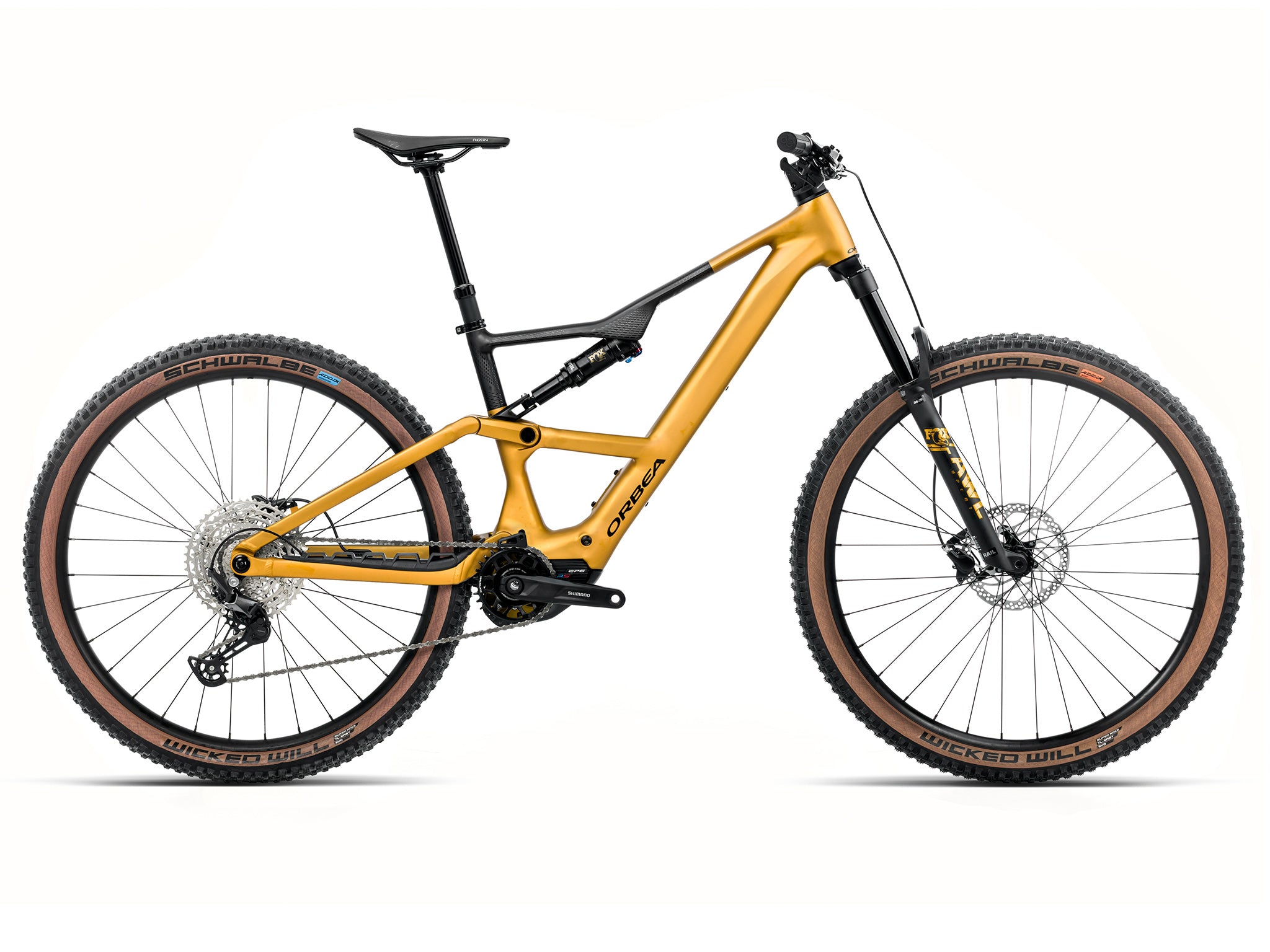

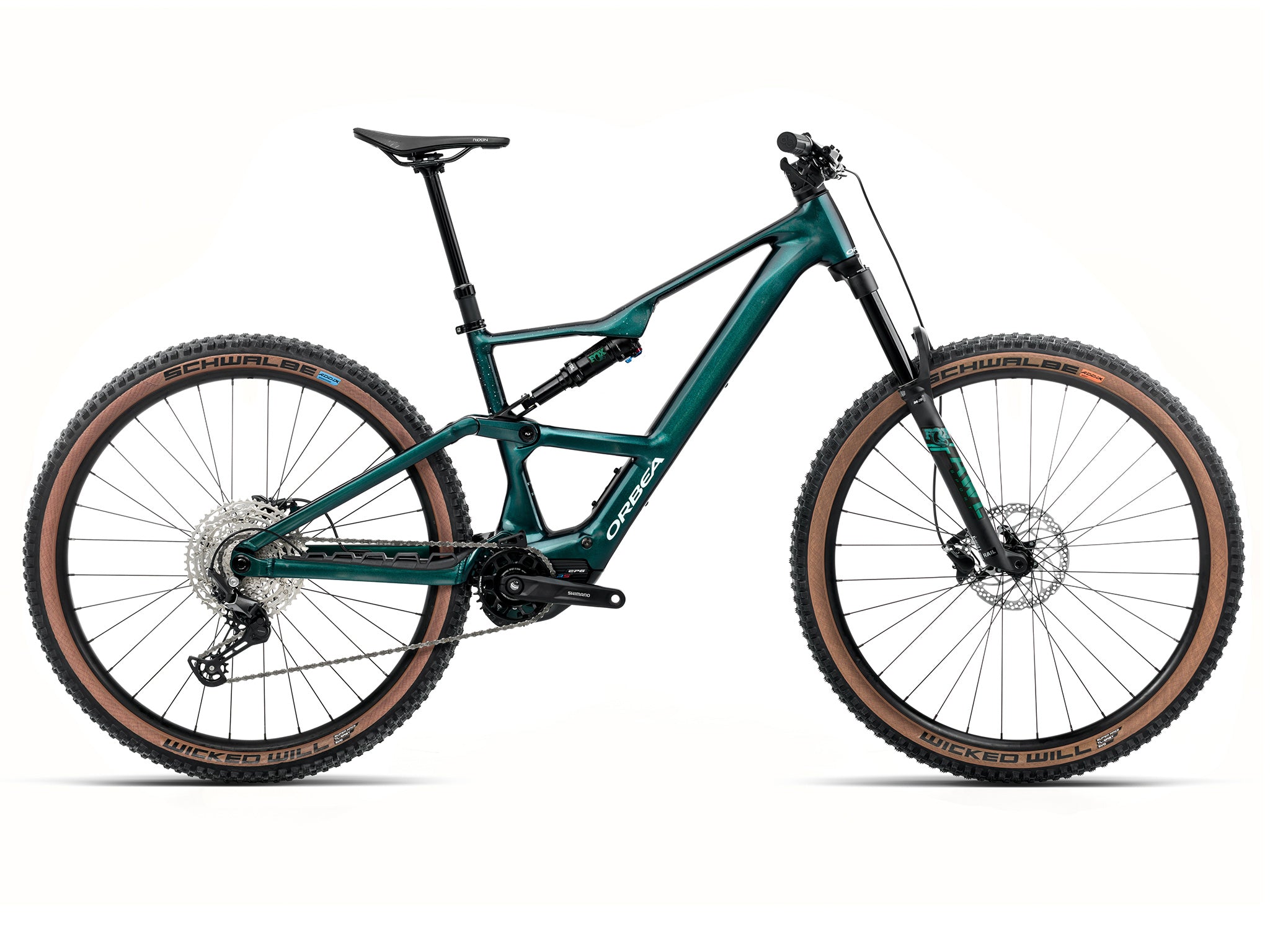

Orbea Rise SL Hydro 2025, 140mm travel, 29" wheels, Concentric Boost 12x148
Shock
Fox Float Performance 2-Pos Evol LV custom tune 210x50mm
Fork
Fox 34 Float AWL Sport 140 Rail QR15x110
Steerer tube
Alloy 1-1/2", Black Oxidated Bearing
Ebike
Battery
Orbea Internal 540Wh
RANGE EXTENDER
N/A
Motor
Shimano EP600 RS Gen2 MC
Display
N/A
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote
EN600-L
Drivetrain
Chainring
e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Crank
Shimano Steps EM600
Shifters
Shimano Deore M6100
Cassette
Shimano CS-M6100 10-51t 12-Speed
Rear derailleur
Shimano Deore M6100 SGS Shadow Plus
Chain
Shimano M6100
Chainguide
Orbea eBike chainguide
Cockpit
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Brakes
Shimano MT201 Hydraulic Disc
Rotors
Shimano SMRT30 Rotors 180mm front / 180mm rear
Brakes Configuration
N/A
Wheels
Wheels
Alloy, Tubeless, 29", 29c, 32H
Tyres
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown
Tyres
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Components
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever
Shimano SL-MT500
Saddle
Fizik Terra Ridon X5 145mm
Grips
OC Lock On
Accessories
Lights
N/A
Tools
N/A
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
