Frameset
Frame

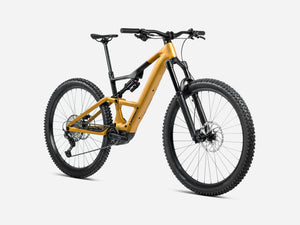

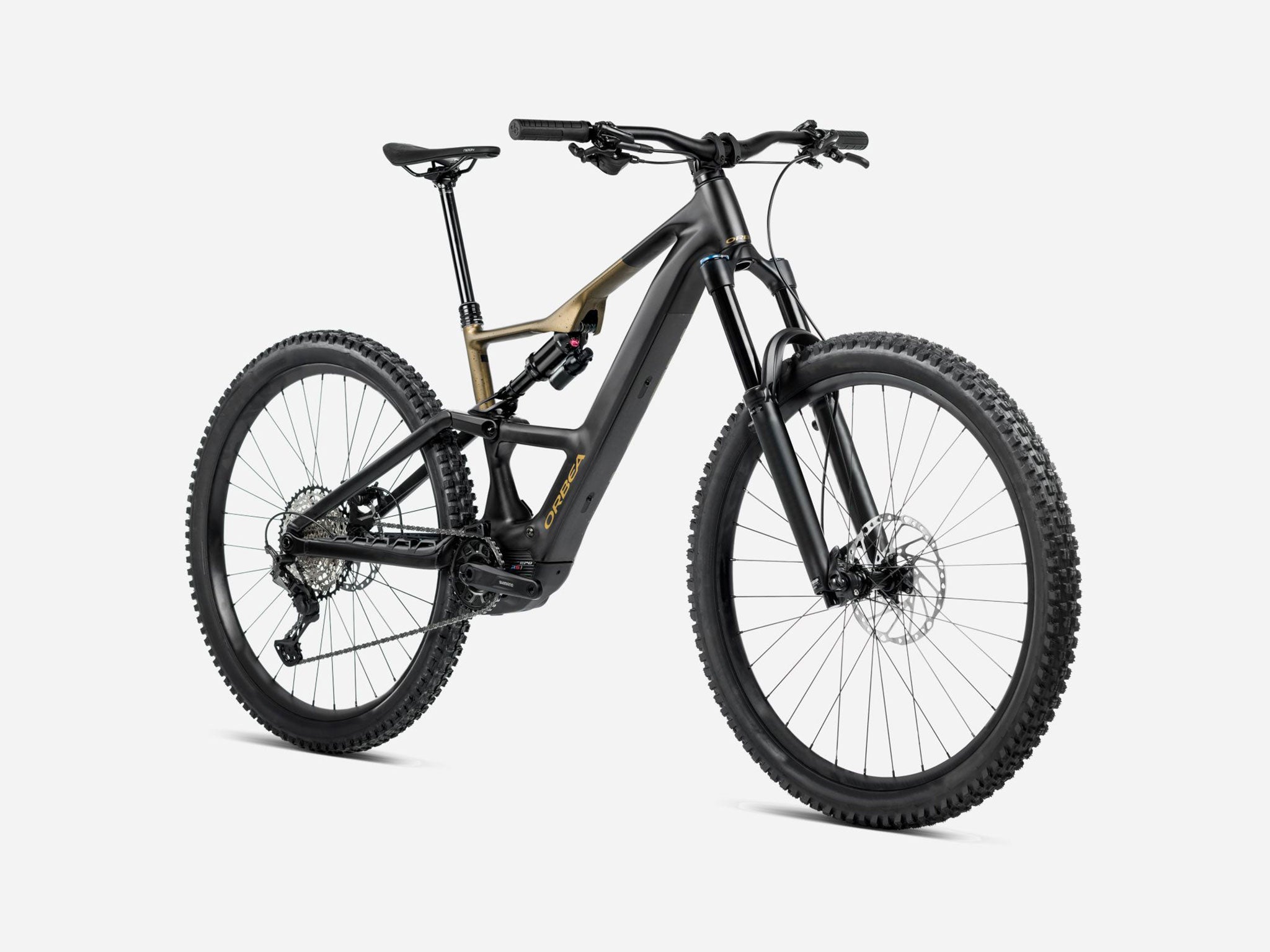

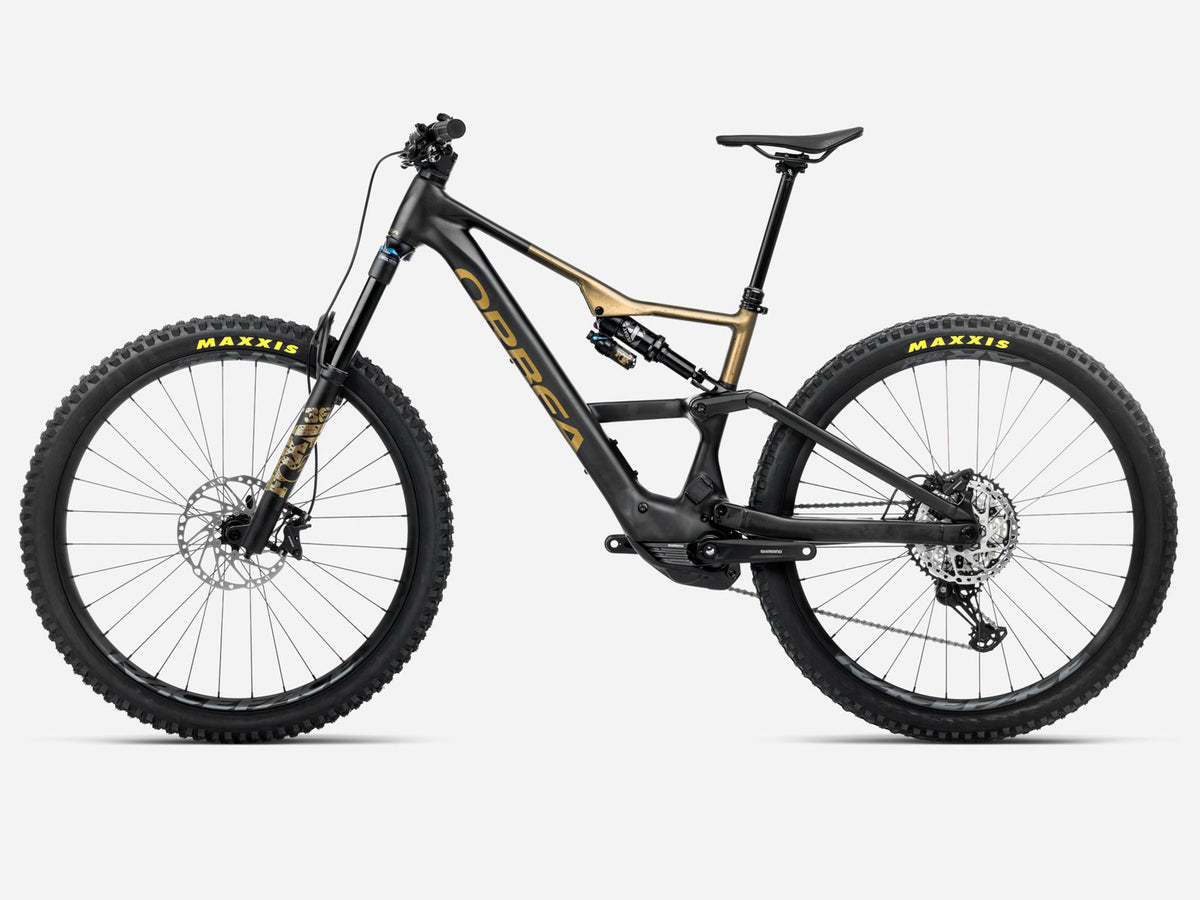

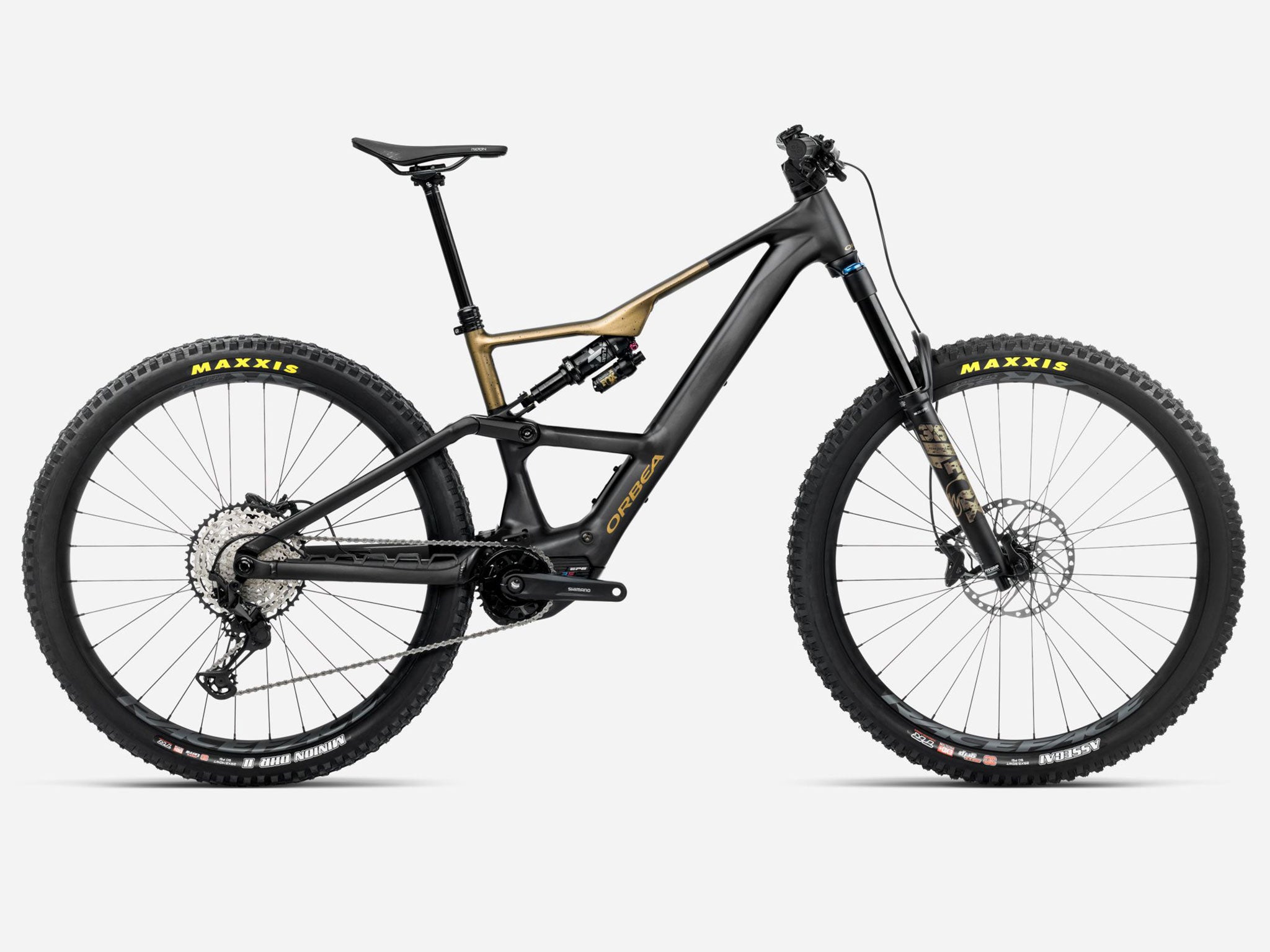

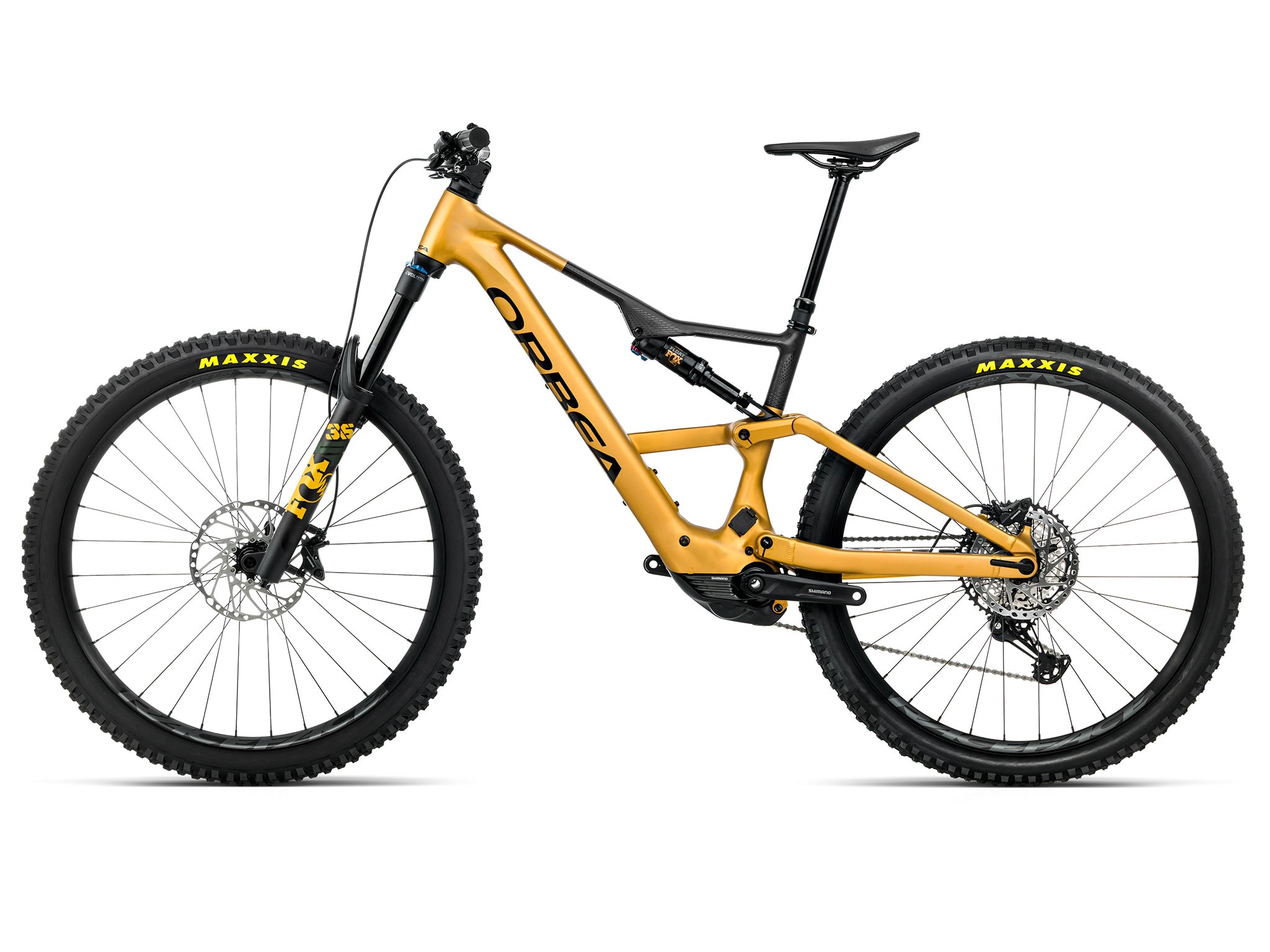

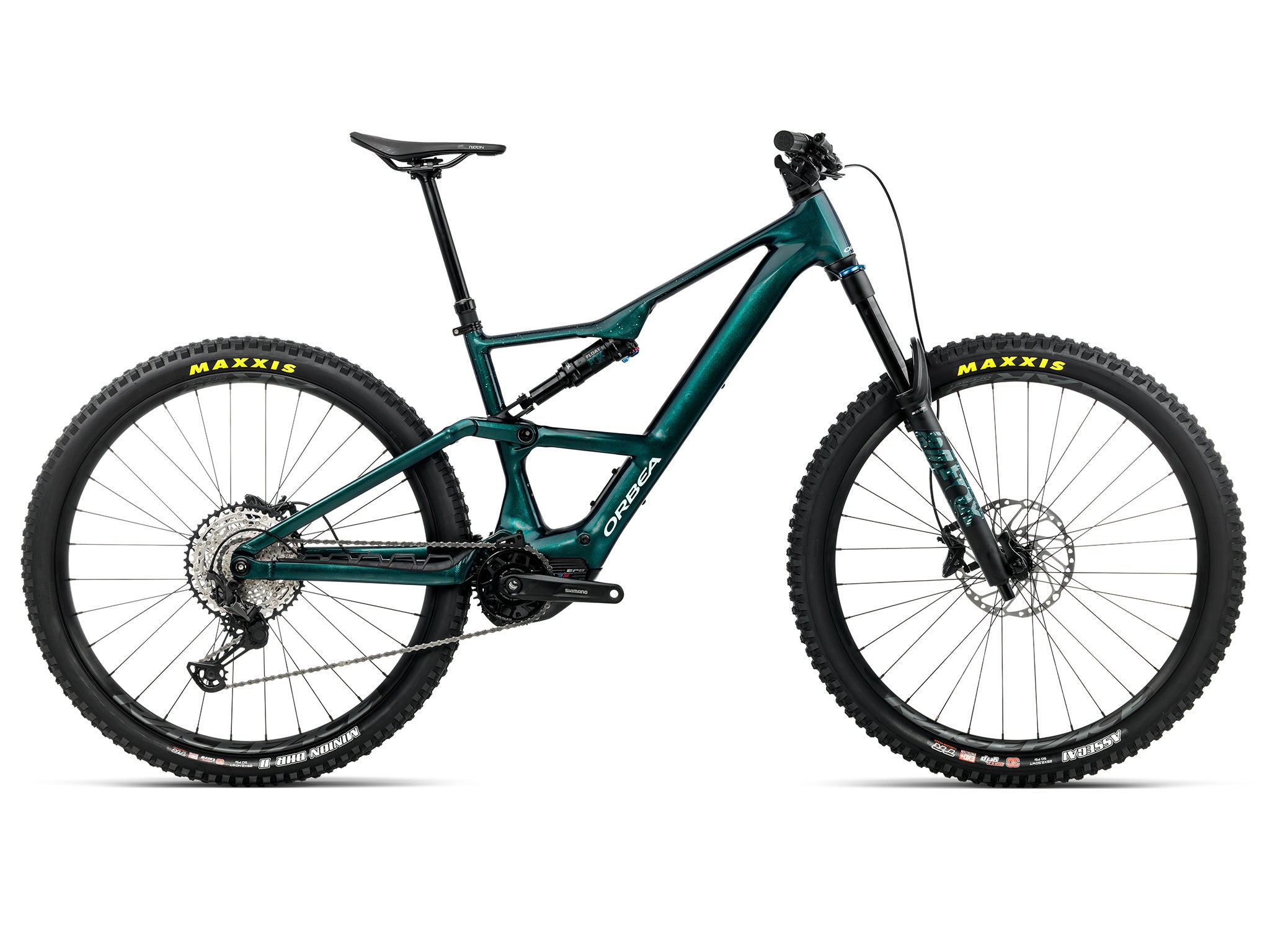

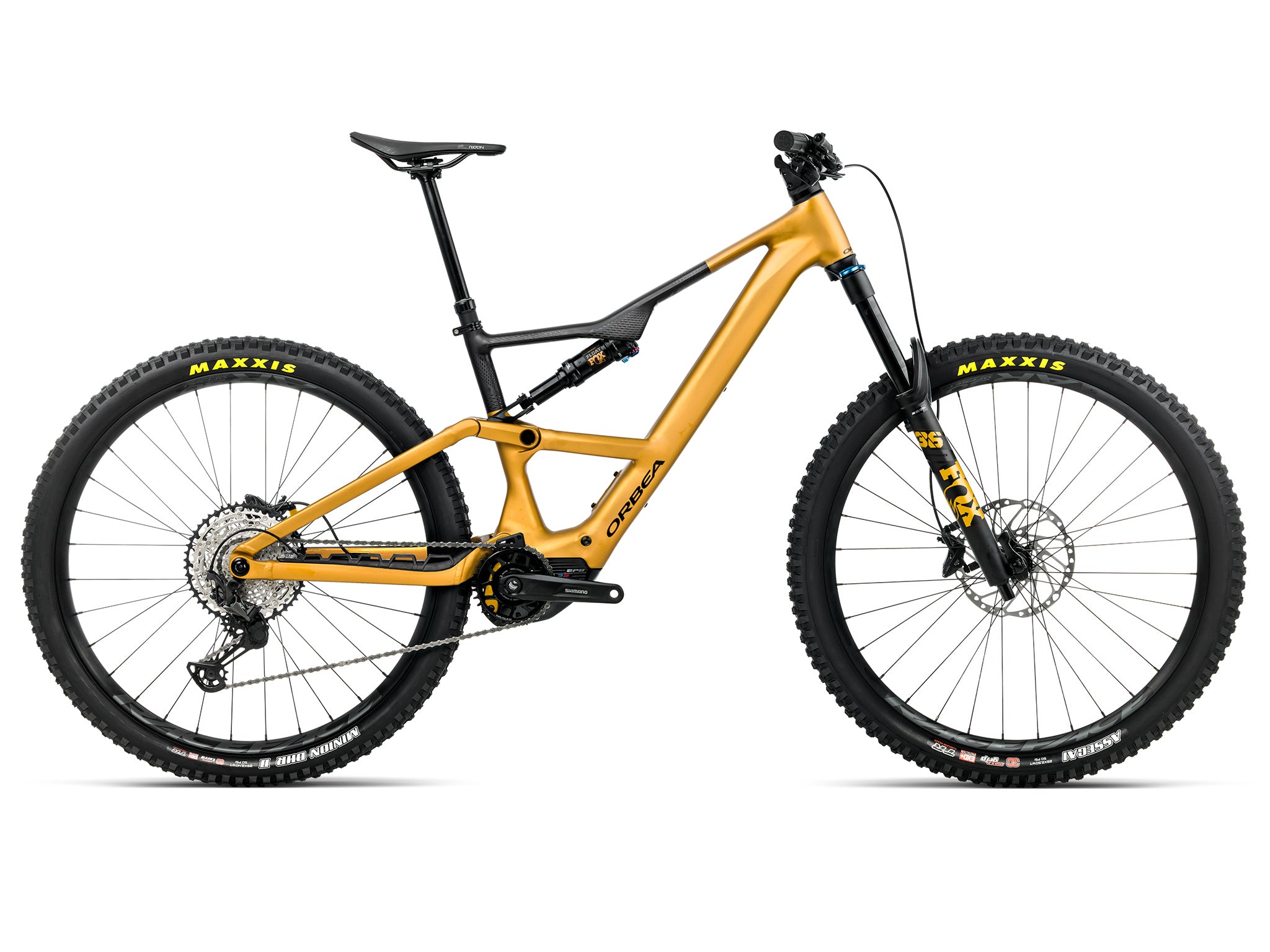

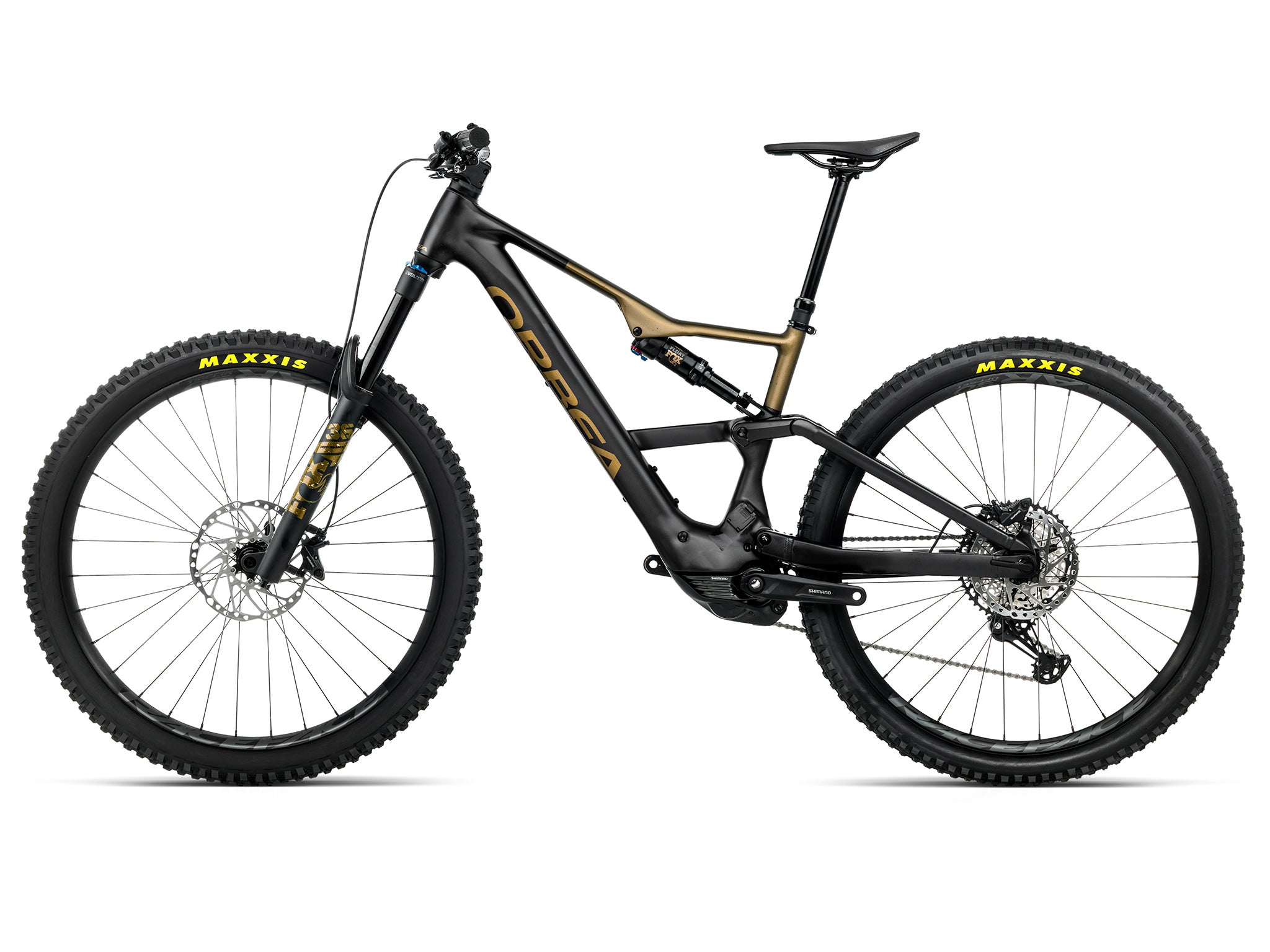

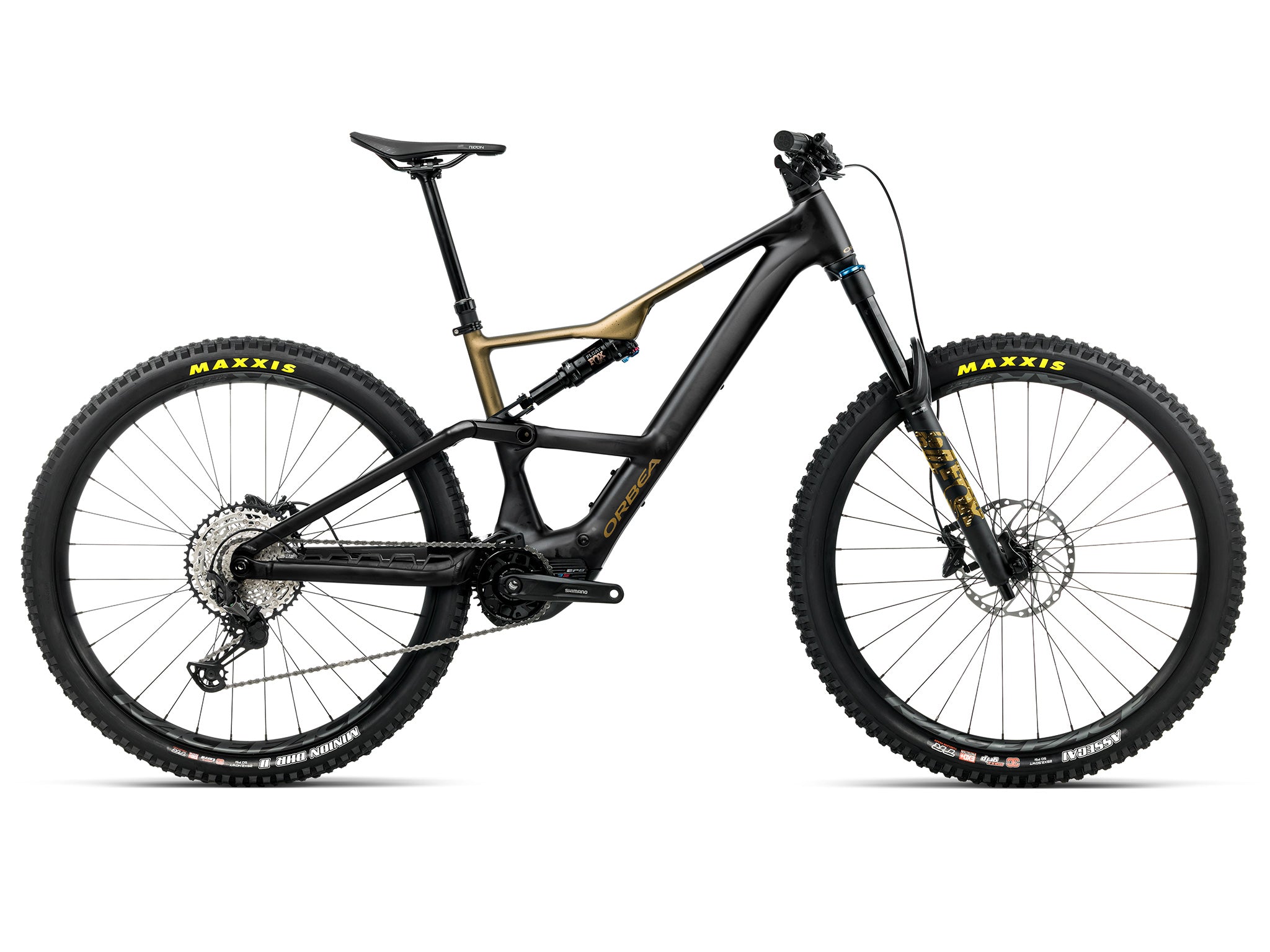

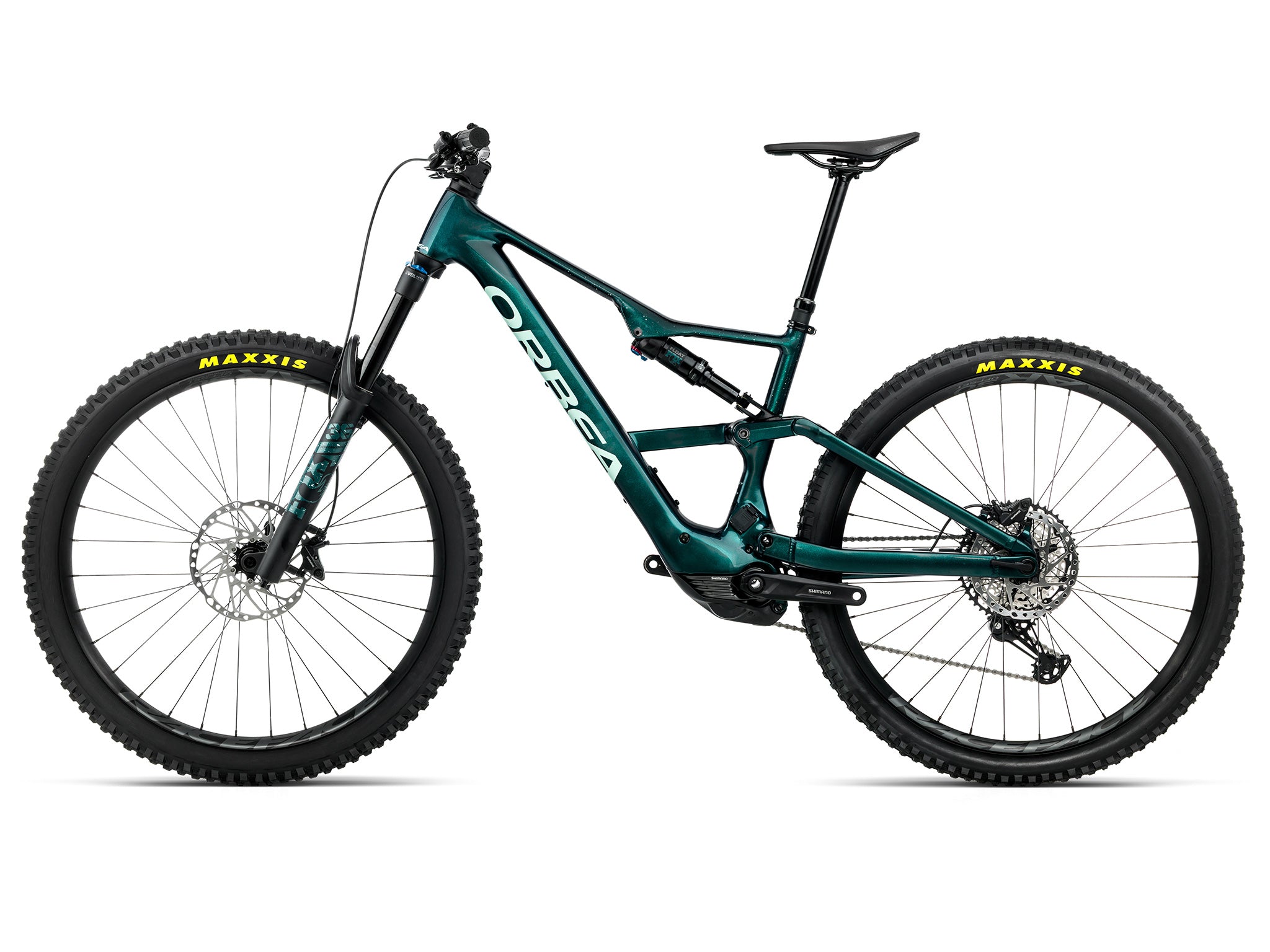

Orbea Rise LT Hydro 2025, 150mm travel, 29" wheels, Concentric Boost 12x148
Shock
Fox Float Performance 2-Pos Evol LV custom tune 210x55mm
Fork
Fox 36 Float Performance 160, Grip 3-Pos, QR15x110
Steerer tube
Alloy 1-1/2", Black Oxidated Bearing
Ebike
Battery
Orbea Internal 630Wh
RANGE EXTENDER
N/A
Motor
Shimano EP801 RS Gen2 MC
Display
N/A
CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote
EN600-L
Drivetrain
Chainring
e*thirteen Helix Core e*spec Direct Mount 32T 55mm ChainLine
Crank
Shimano Steps EM600
Shifters
Shimano SLX M7100 I-Spec EV
Cassette
Shimano CS-M7100 10-51t 12-Speed
Rear derailleur
Shimano XT M8100 SGS Shadow Plus
Chain
Shimano M6100
Chainguide
Orbea eBike chainguide
Cockpit
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Stem
OC Mountain Control MC20, 0º
Computer Mount
OC Computer Mount CM-05, Garmin/Sigma
Brakes
Brakes
Shimano M6120 Hydraulic Disc
Rotors
Shimano RT64 Rotors 203mm front / 180mm rear
Brakes Configuration
N/A
Wheels
Wheels
Race Face AR 30c Tubeless Ready
Tyres
Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip
Tyres
Maxxis Minion DHR II 2.40" WT FB 120 TPI 3C MaxxTerra Exo+ TR
Components
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever
Shimano SL-MT500 I-Spec EV
Saddle
Fizik Terra Ridon X5 145mm
Grips
OC Lock On
Accessories
Lights
N/A
Tools
N/A
