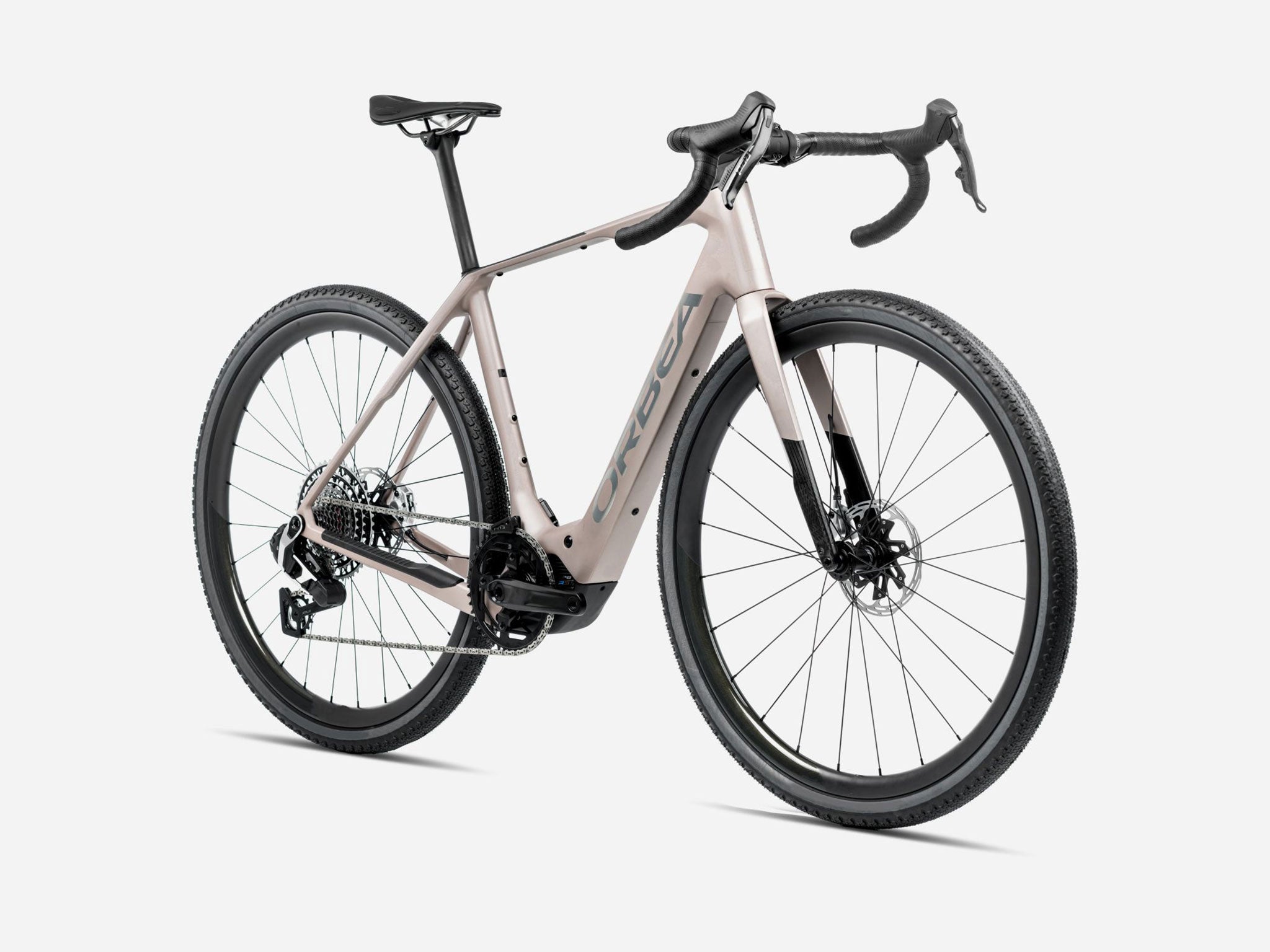

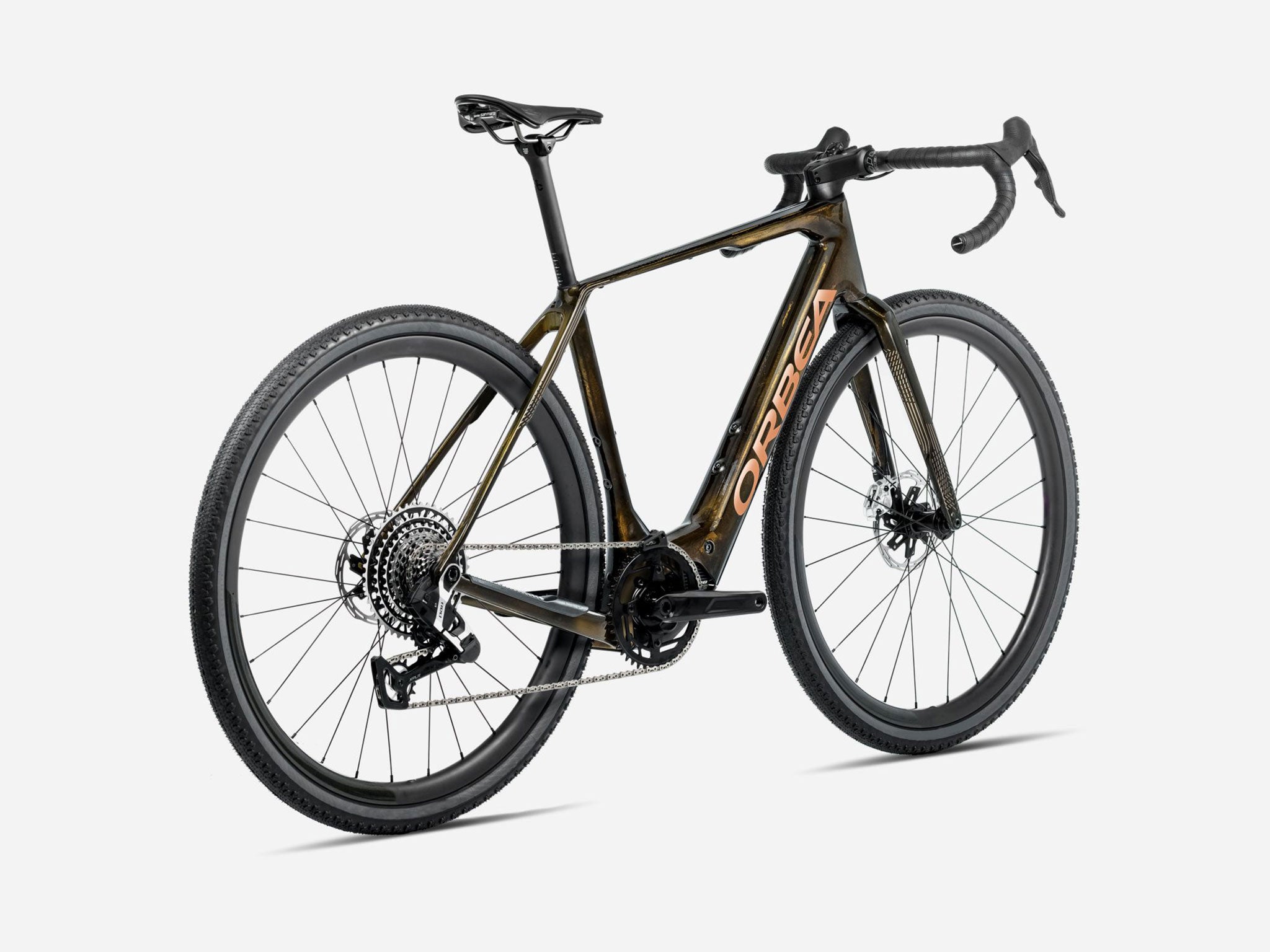

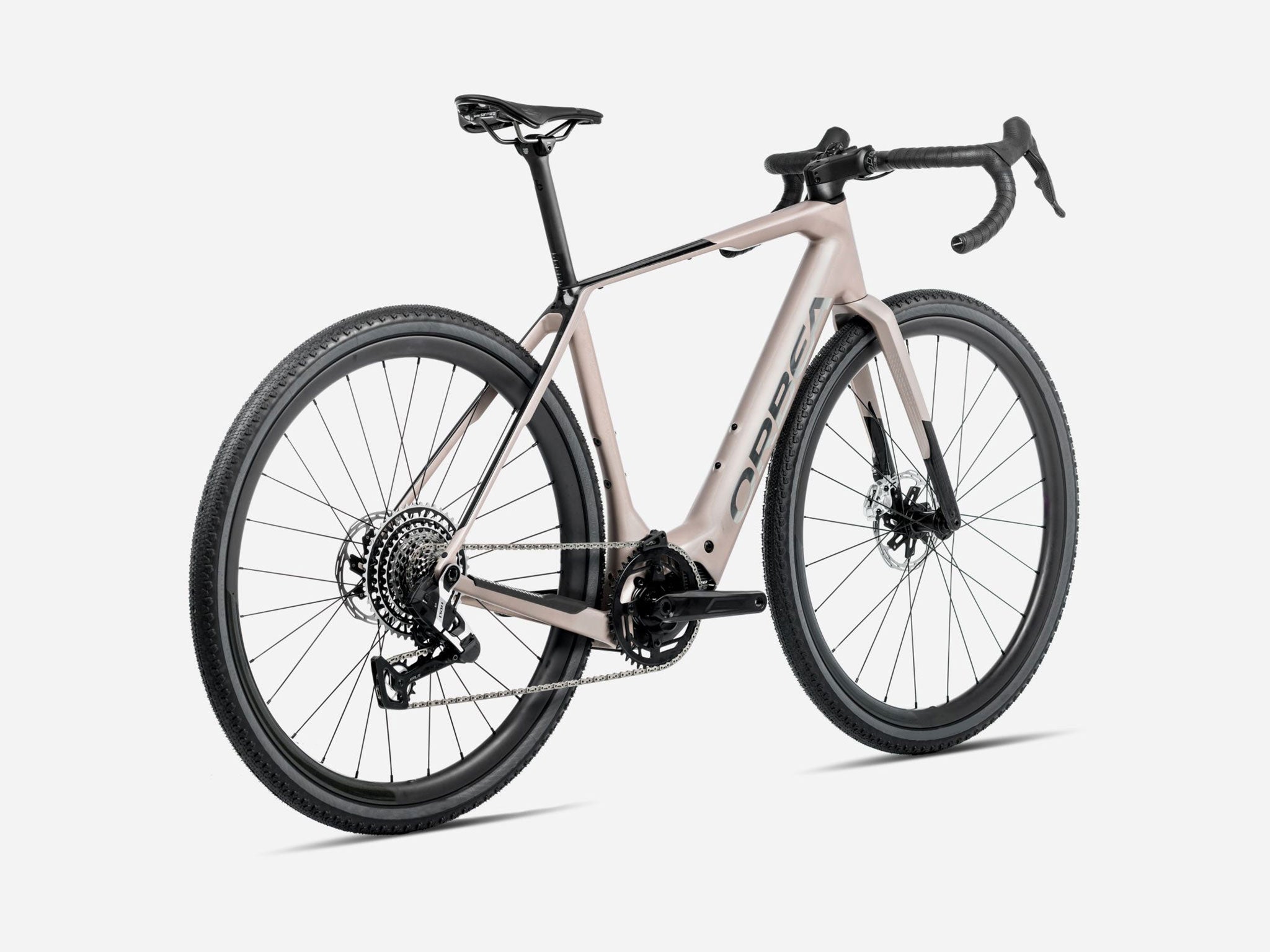

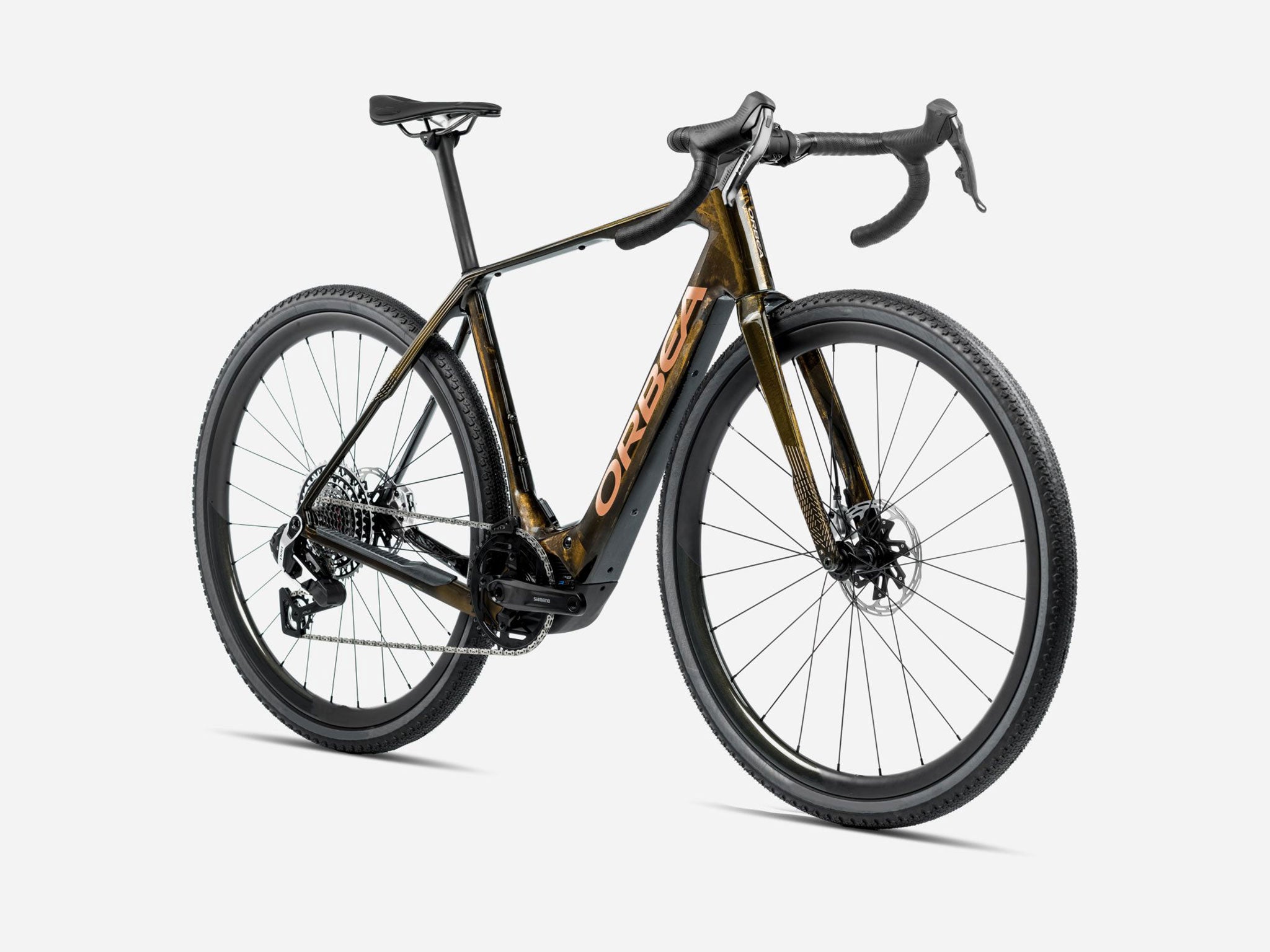

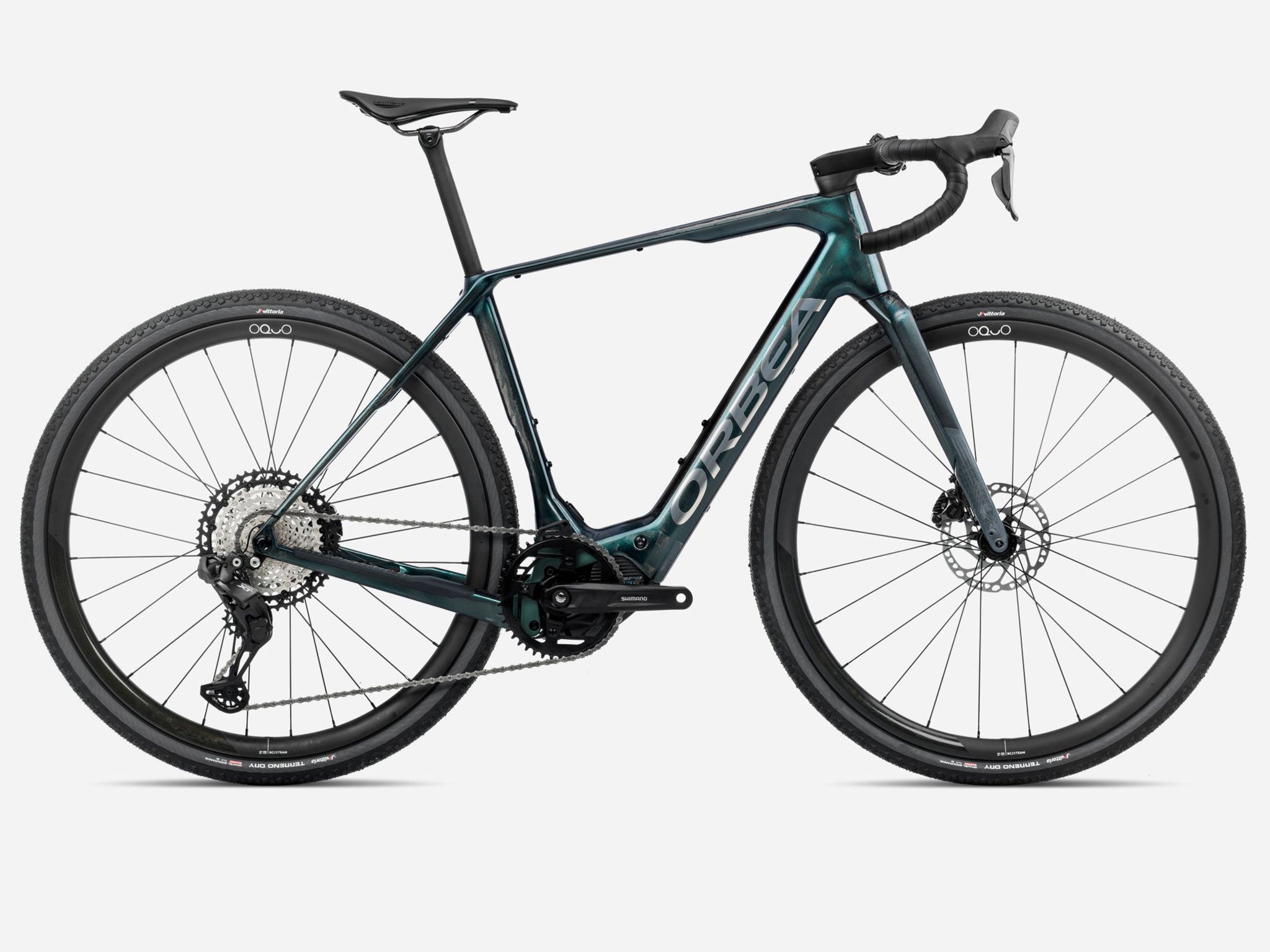

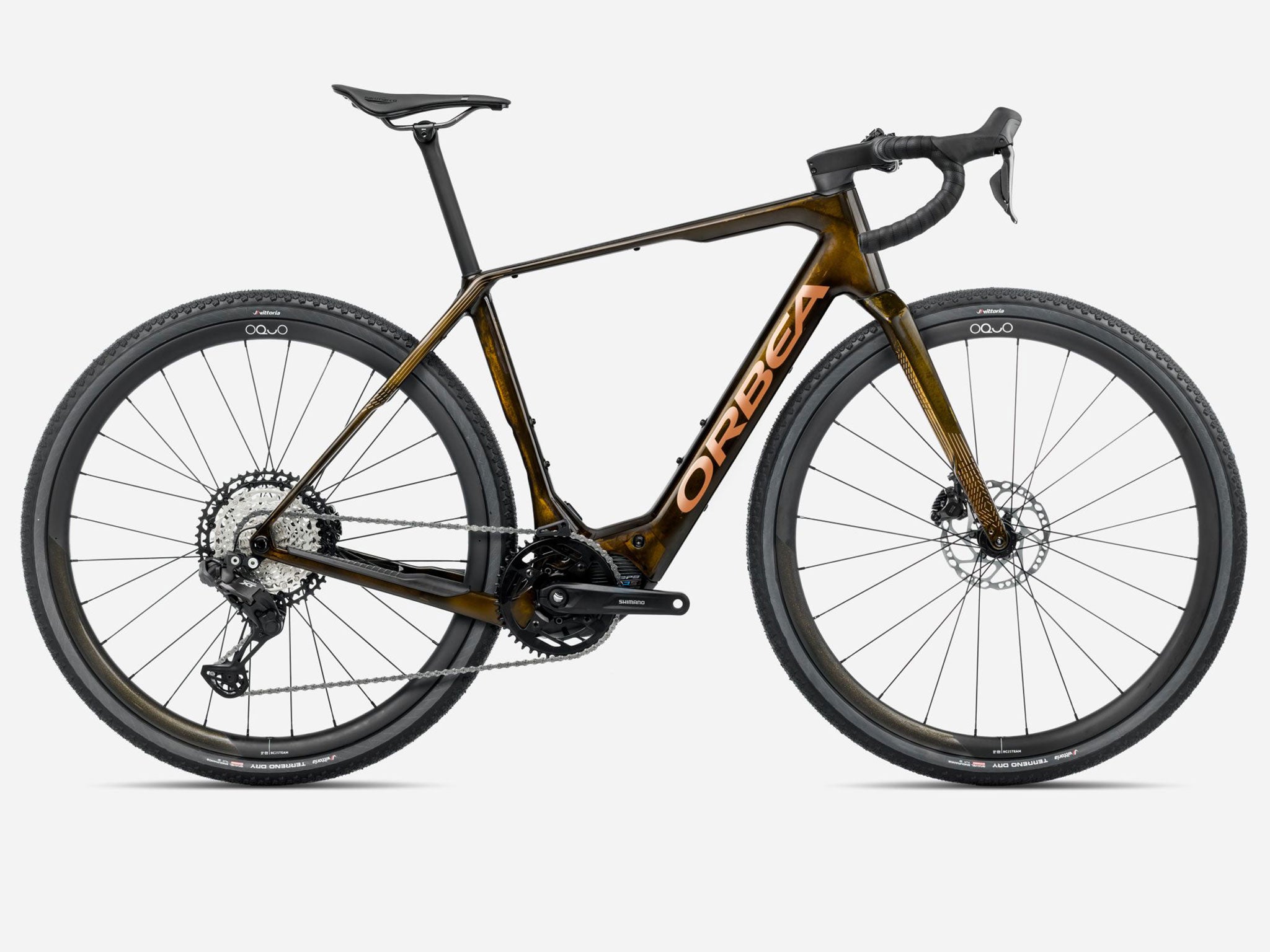

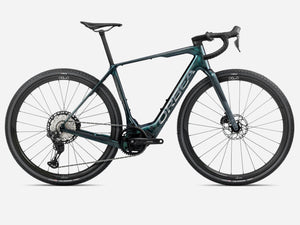

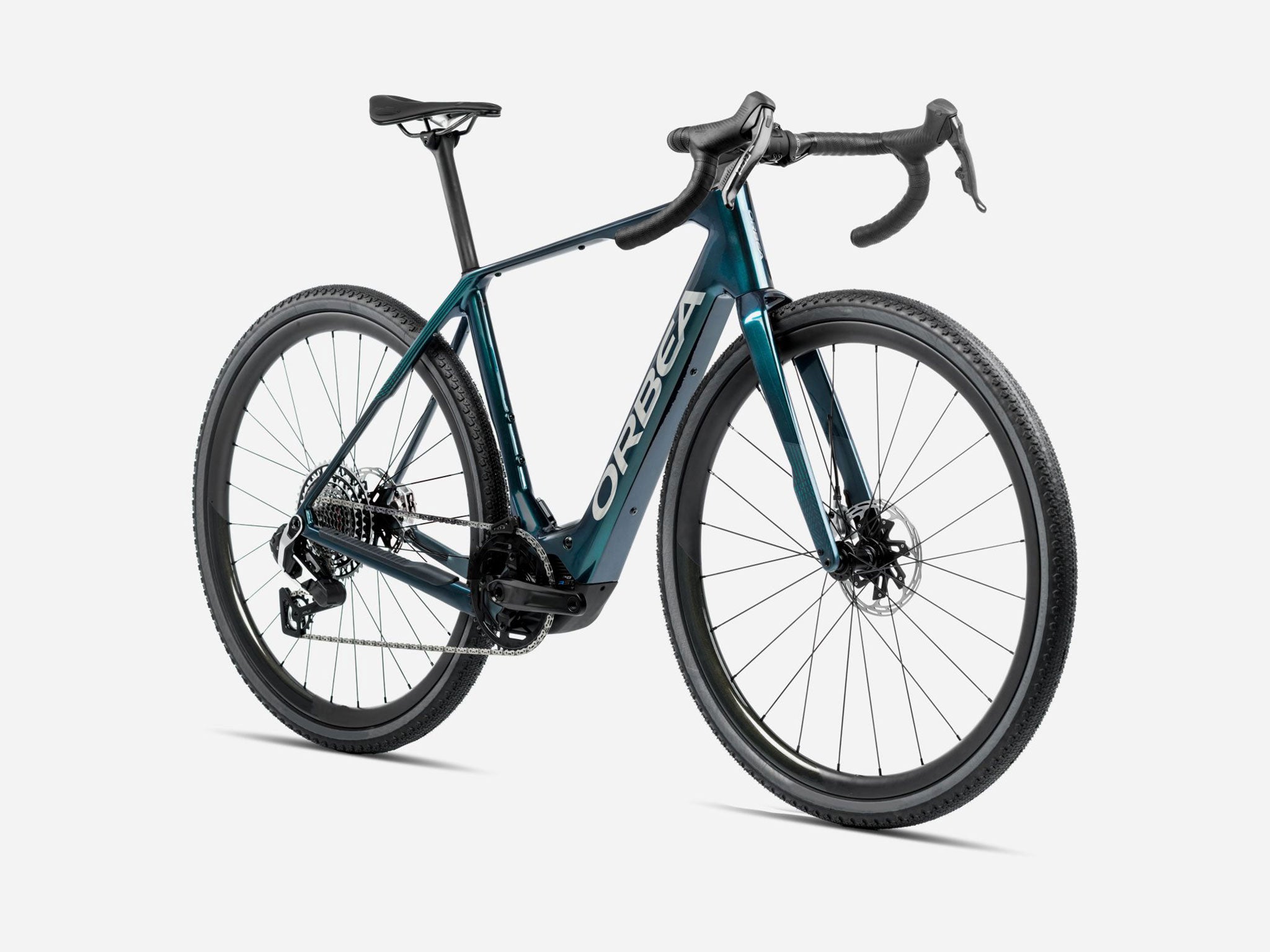

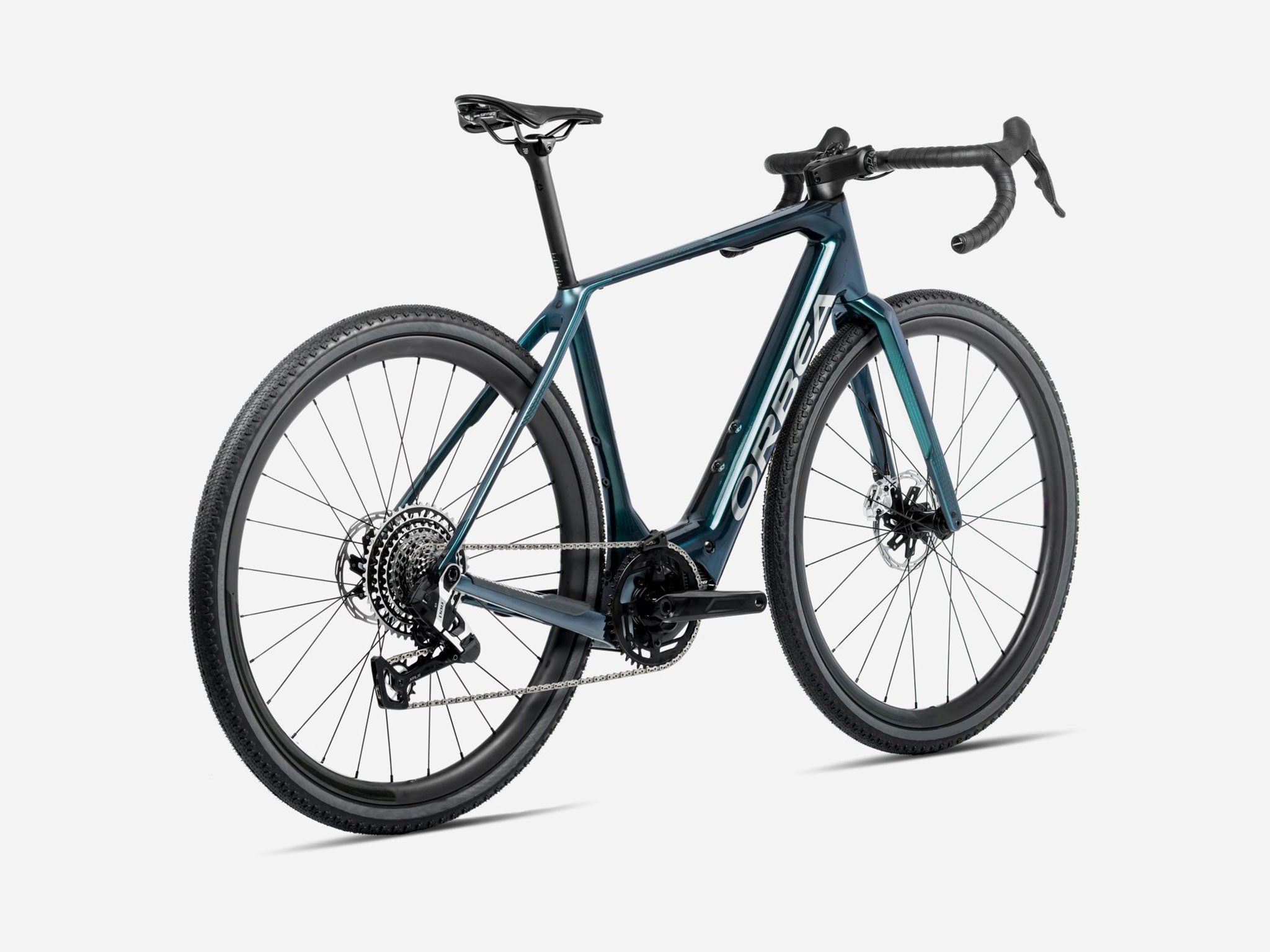

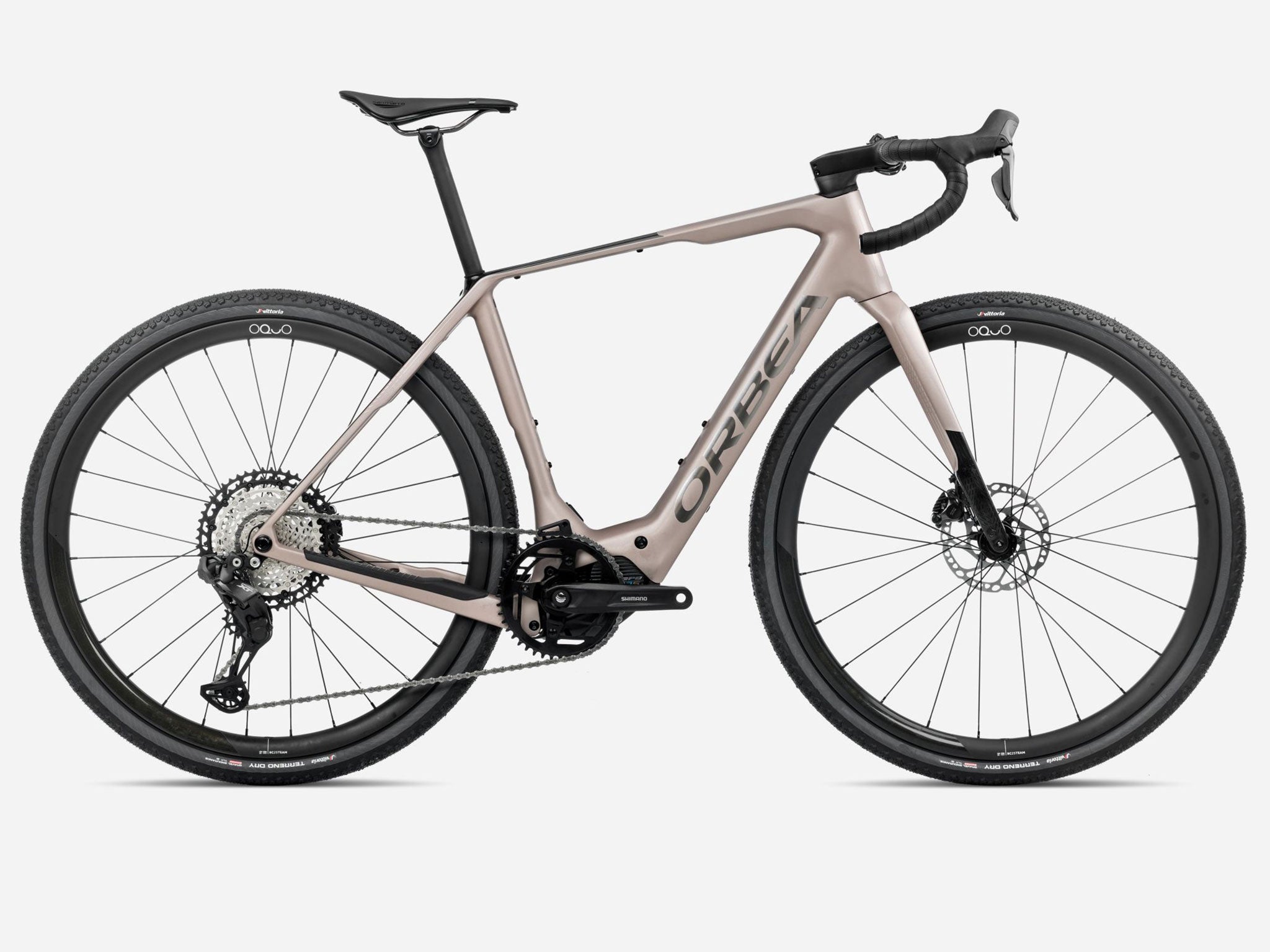

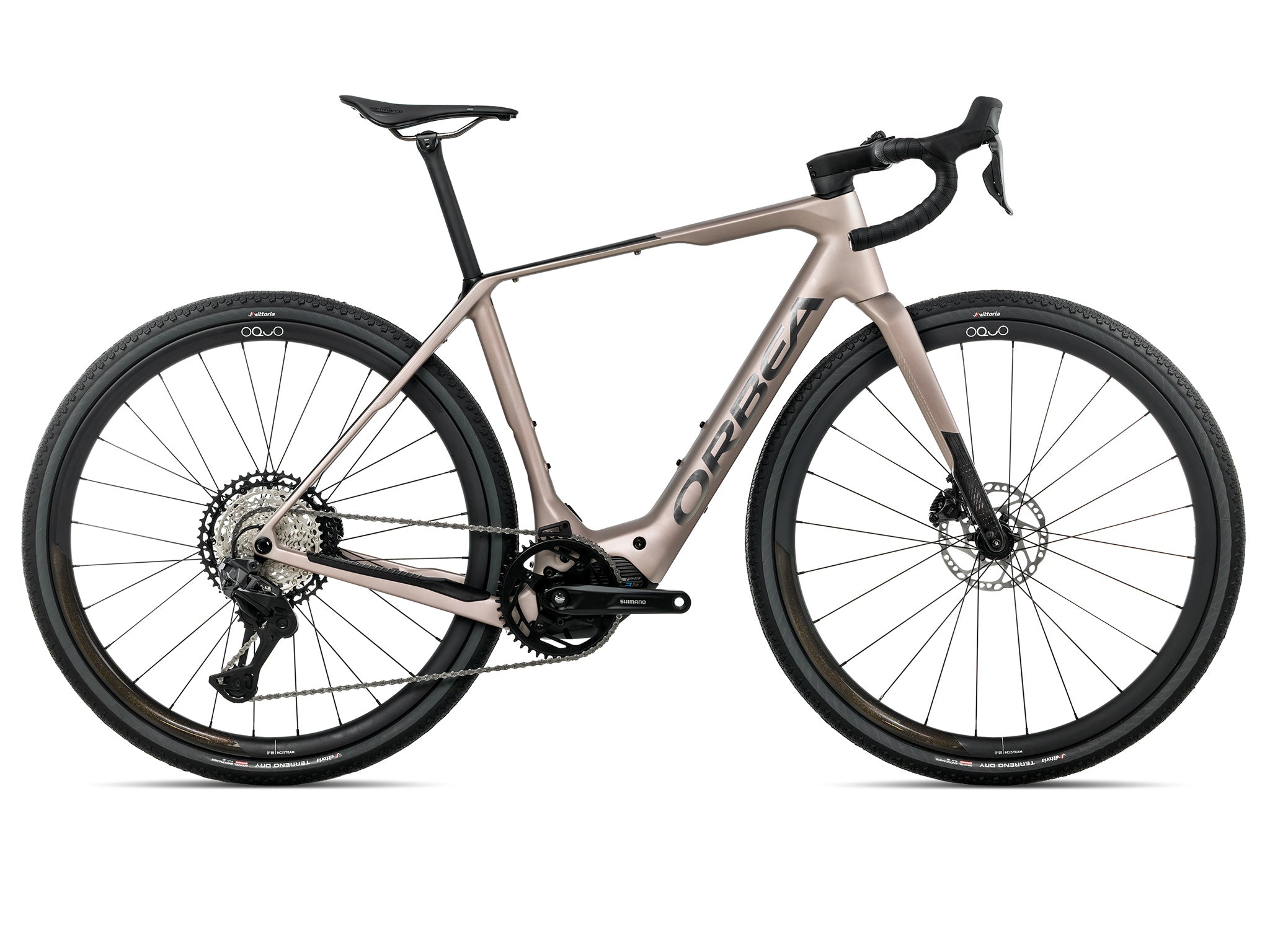

Denna M20i

The Orbea Denna M20i is all about removing limits. Gravel-tuned assistance offers power for the steepest climbs, and range for the longest rides. Wide tire clearance and a frame designed for a smooth ride make big days in the saddle a pleasure.

Frameset
Frame
Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.

Fork
Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Ebike
Battery
Orbea Internal 420Wh

RANGE EXTENDER
N/A

Motor
Shimano EP801

Display
N/A

CHARGER
Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote
EN600-L

Drivetrain
Chainring
Alloy EP8 44t

Crank
Shimano Steps EM600

Shifters
Shimano ST-8170

Cassette
Shimano CS-M8100 10-51t 12-Speed

Rear derailleur
Shimano XT M8260 SGS

Chain
Shimano M6100

Chainguide
Orbea eBike chainguide

Cockpit
Handlebar
OC Gravel GR10 Carbon, Reach 70, Drop 110

Stem
OC Road Performance RP10, -8º

Brakes
Brakes
Shimano R8170 Hydraulic Disc

Brakes Configuration
N/A

Wheels
Wheels
Oquo Road Control RC30TEAM

Tyres
Vittoria Terreno Dry Gravel G2.0 TLR 700x45c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Components
Seatpost
OC Performance XP10 Carbon, 27.2mm, Setback 0

Saddle
Selle San Marco Shortfit 2.0 Start Up Off Road Xilite

Accessories
Mudguard
N/A

Handlebar Tape
Orbea Anti-Slippery/Shock Proof

Storage
N/A

We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
