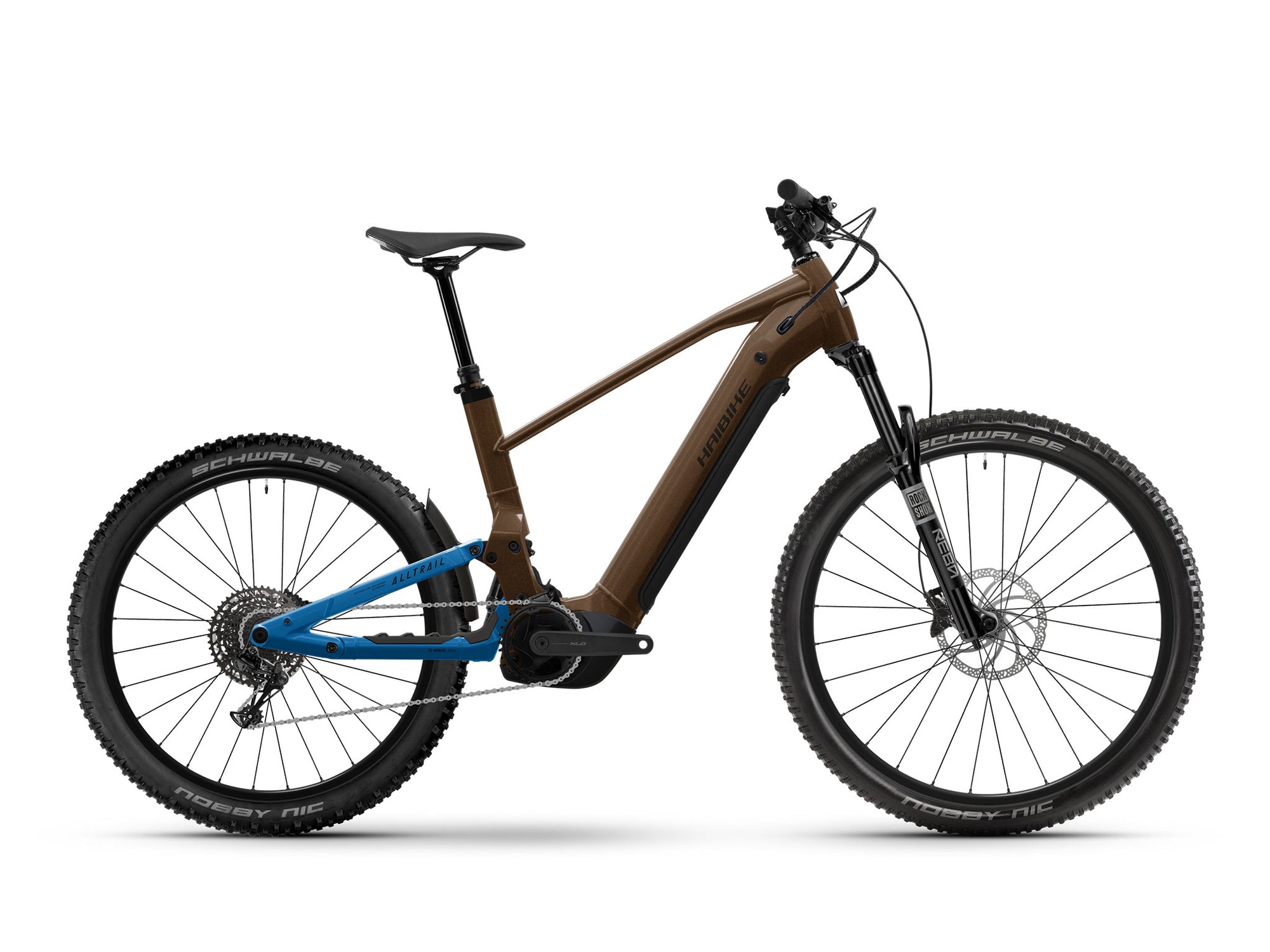

Alltrail 6

More performance. More trail. More you. If you’re after more than just entry-level, our new HAIBIKE ALLTRAIL 6 is your trail buddy. Based on the ALLTRAIL 4, this eFully goes a step further: the quality RockShox suspension with 130mm travel front and rear offers more reserves and finer tuning options – perfect if you like to dial in your own setup. The Bosch Performance Line CX motor and 800Wh battery deliver maximum range and solid support – uphill and down. The aluminium frame, rated up to 150kg, features an integrated dropper post and a balanced mullet tyre setup – 29" at the front, 27.5" at the rear – for more comfort, smoothness and agility. With the grippy four-piston disc brakes, you’re always in control. In short: this eMTB is the next step for anyone wanting more on the trail – especially more performance.

E-bike components
Battery Capacity:
800 Wh
Battery Location:
Powertube
Motor Torque [nm]:
85 Nm (120Nm customer option via app)
Motor Location:
Center
Battery Description:
Bosch, InTube 800 Wh
Charger Description:
Bosch, Charger 4A 220-240V
Display Description:
Bosch, Purion 200, Purion 200
Motor Description:
Bosch, Performance Line CX, Performance Line CX

Drivetrain
Cassette Teeth:
11-50T
Crank Arm length:
165
Crankset Teeth:
36T
Crankset Type:
single
Pedal Inclusive:
Yes
Cassette Description:
Sram, PG-1210 Eagle, HG
Chain Description:
Sram, Chain, NX Eagle 12s
Chain Guide Description:
Winning, WI-38L-95 Chainguide
Crankset Description:
XLC, CR-E18 Crankarms + SRAM CR T-Type Bosch DU38, DM
Derailleur Hanger Description:
Glory Wheel, UDH
Derailleur Rear Description:
Sram, NX Eagle 12s
Gear Description:
Sram, Derailleur
Pedal Description:
XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
Shifter Right Description:
Sram, Triggershift, SX Eagle Single Click Trigger

Brake system
Brake Front Mount:
Post Mount
Brake Rear Mount:
Post Mount
Brake Front Description:
Tektro, Hydraulic Disc brake, HD-M535 4 pistons, resin pad, 203 mm
Brake Rear Description:
Tektro, Hydraulic Disc brake, HD-M535 4 pistons, resin pad, 203 mm
Brake Lever Description:
Tektro, HD-M535-BL
Brake Rotor Description:
Tektro, TR203-53 203 mm, 6 bolt Disc

Handlebar and Saddle
Handlebar Diameter:
31.8 mm
Handlebar Material:
Aluminium
Handlebar Rise:
20
Handlebar Width:
780 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
· 100 mm
· 125 mm
· 150 mm
Stem Length:
40 mm
Handgrip Description:
XLC, MTB Grip Set VLG-1751D2
Handlebar Description:
XLC, Riser Bar, HB-M32, Dia. 31.8 mm, Rise: 20 mm, backsweep 9°
Headset Description:
Acros, Semi-integrated, BlockLock 135° AZX-220-R4 ZS44/ZS56
Saddle Description:
XLC, SA-S10 143 mm Sport
Seatpost Description:
XLC, Dropperpost, Dropper SP-T21, Dia. 34.9 mm, Travel: 100 mm, 395 mm
Stem Description:
XLC, ST-M50, Dia. 31.8 mm, L: 40 mm, A-Head

Wheels and wheel components
Hub Front Description:
XLC, HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
Hub Rear Description:
XLC, HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
Rim Description:
XLC, WR-M39 Disc 30/622 32H 6,5 mm Valve
Rim Rear Description:
XLC, WR-M37 Disc 30/584 32H 6,5 mm Valve
Spoke Description:
Sapim, Race Dia. 2.0, J-Bend
Tyre Description:
Schwalbe, Nobby Nic Performance, Folding, ADDIX, 67EPI, 62-622
Tyre Rear Description:
Schwalbe, Nobby Nic Performance, Folding, ADDIX, 67EPI
Wheelsize Description:
29, 27.5
