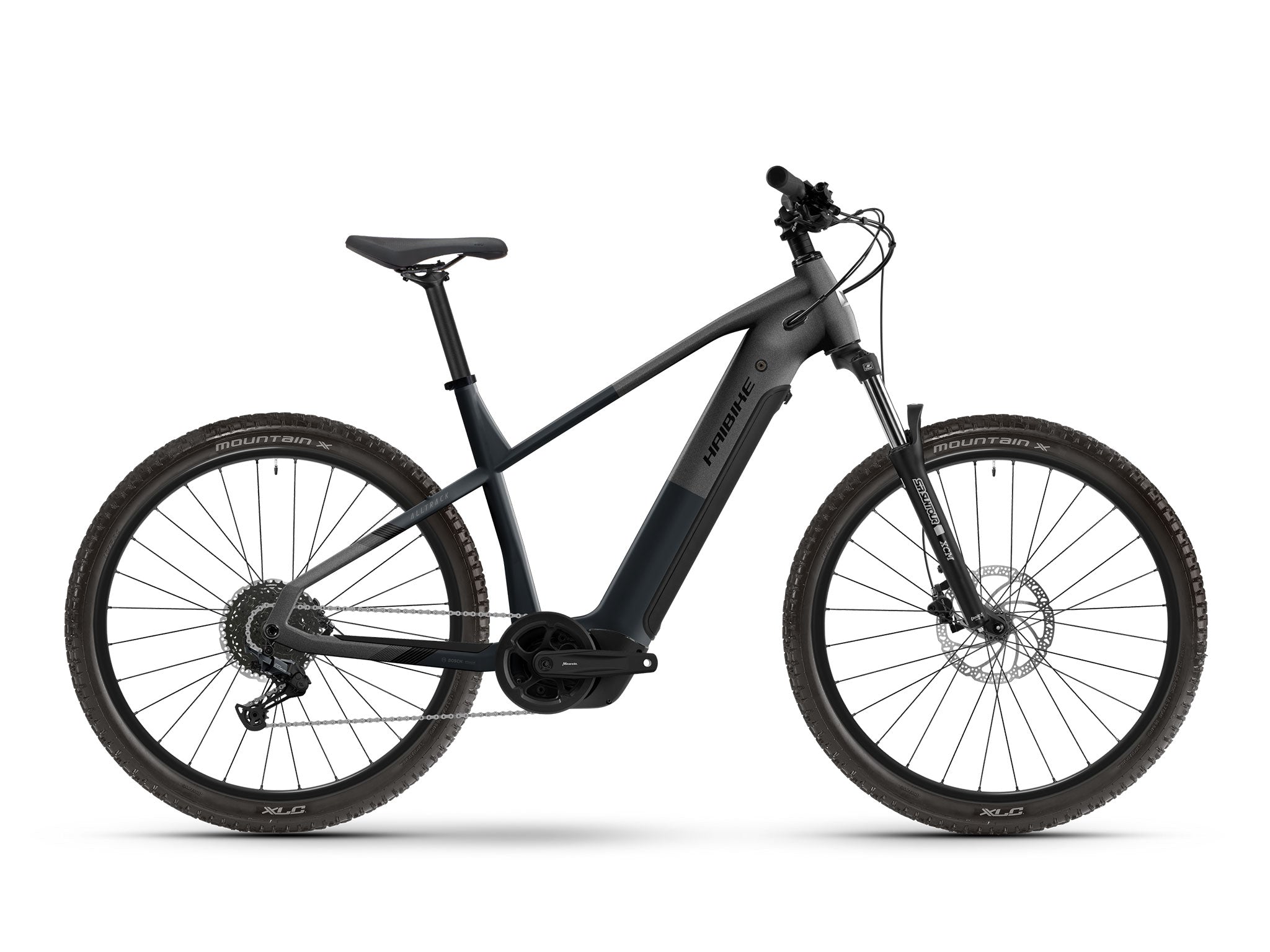

Alltrack 4

Fun off-road, fun on-road. The HAIBIKE ALLTRACK 4 is the ideal introduction to the world of e-hardtails. Its strong component mix makes sure of that: the powerful Bosch Performance Line PX motor supports you across all terrains. Reliable Shimano shifting and strong disc brakes keep your ride safe and smooth. The 600Wh battery gives you endurance for tours that go well beyond your usual routes. Versatile: the wide XLC knobbly tyres roll smoothly on gravel and tarmac alike – for maximum riding enjoyment on any terrain.

Alloy Frame
Suntour XCM34 120mm Fork
Bosch Performance Line PX 90Nm
600Wh Powertube Battery
Shimano CUES 9 Speed Gearing

E-bike components
Battery Capacity:
600 Wh
Battery Location:
Powertube
Motor Torque [nm]:
85 Nm
Motor Location:
Center
Battery Description:
Bosch, InTube 600Wh
Charger Description:
Bosch, Charger 2A 220-240V
Display Description:
Bosch, Led Remote, LED Remote
Motor Description:
Bosch, Performance Line PX (90Nm)

Brake system
Brake Front Mount:
Post Mount
Brake Rear Mount:
Post Mount
Brake Front Description:
Tektro, Hydraulic Disc brake, HD-M280, 2 pistons, 180 mm
Brake Rear Description:
Tektro, Hydraulic Disc brake, HD-M280, 2 pistons, 180 mm
Brake Lever Description:
Tektro, HD-M280-BL
Brake Rotor Description:
Tektro, TR180-53 180 mm, 6 bolt Disc
Drivetrain
Cassette Teeth:
11-46T
Crank Arm length:
170
Crankset Teeth:
38T
Crankset Type:
single
Pedal Inclusive:
Yes
Cassette Description:
Shimano, CUES CS-LG300-9, HG
Chain Description:
KMC, Chain, eGlide with EPT Coating 9-11s
Crankset Description:
XLC, CR-E18 Crankset + CR-E15 Chainring Bosch BDU38
Derailleur Hanger Description:
Glory Wheel, UDH
Derailleur Rear Description:
Shimano, CUES RD-U4000 9s, Shadow
Gear Description:
Shimano, Derailleur, CUES
Pedal Description:
XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
Shifter Right Description:
Shimano, Triggershift, CUES SL-U4010-9R, Rapidfire+

Handlebar and Saddle
Handlebar Diameter:
31.8 mm
Handlebar Material:
Aluminium
Handlebar Rise:
20
Handlebar Width:
780 mm
Seatpost Material:
Aluminium
Stem Length:
50 mm
Handgrip Description:
XLC, MTB Grip Set VLG-1751D2
Handlebar Description:
XLC, Riser Bar, HB-M32, Dia. 31.8 mm, Rise: 20 mm, backsweep 9°
Headset Description:
Feimin, Semi-integrated, FP-H856U ZS44 + ACROS BlockLock ZS56
Saddle Description:
XLC, SA-S10 143 mm Sport
Seatpost Description:
XLC, Non Suspension, SP-R30, Dia. 34.9 mm, L: 300 mm, 300 mm
Stem Description:
XLC, ST-M34, Dia. 31.8 mm, L: 50 mm, +/-7°, A-Head

Wheels and wheel components
Hub Front Description:
XLC, HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
Hub Rear Description:
XLC, HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
Rim Description:
XLC, WR-M37 Disc 30/584 32H 6,5 mm Valve
Rim Rear Description:
XLC, WR-M37 Disc 30/584 32H 6,5 mm Valve
Spoke Description:
Sapim, Leader Dia. 2.0 mm
Tyre Description:
XLC, VT-M30 Cirrus, 66-584
Tyre Rear Description:
XLC, VT-M30 Cirrus

Brake system
Brake Front Mount:
Post Mount
Brake Rear Mount:
Post Mount
Brake Front Description:
Tektro, Hydraulic Disc brake, HD-M280, 2 pistons, 180 mm
Brake Rear Description:
Tektro, Hydraulic Disc brake, HD-M280, 2 pistons, 180 mm
Brake Lever Description:
Tektro, HD-M280-BL
Brake Rotor Description:
Tektro, TR180-53 180 mm, 6 bolt Disc

Bike Geometry
Bottom bracket drop [mm]:
· 60 mm
· 65 mm
Chain stay length [mm]:
· 465 mm
· 475 mm
Fork total length [mm]:
44 mm
Head tube angle:
· 68 degrees
· 67 degrees
Head tube length [mm]:
· 140 mm
· 150 mm
· 160 mm
Reach [mm]:
· 422 mm
· 432 mm
· 452 mm
· 472 mm
Stack [mm]:
· 656 mm
· 674 mm
· 683 mm
· 692 mm
Stand over height [mm]:
· 760 mm
· 790 mm
Seat tube angle:
74 degrees
Seat tube length [mm]:
· 400 mm
· 450 mm
· 500 mm
· 550 mm
Top tube length [mm]:
· 610 mm
· 625 mm
· 648 mm
· 670 mm
Wheelbase [mm]:
· 1171 mm
· 1216 mm
· 1240 mm
· 1264 mm

It’s an exciting day when you take delivery of your new electric bike. We do things a little bit differently at Spoke and Motor by personally delivering the bike to you ourselves and not using couriers.

We deliver your bike fully assembled and ready to ride then give you a personal handover; We show you around your new electric bike, answer all your questions, and leave you feeling confident and raring to go.
