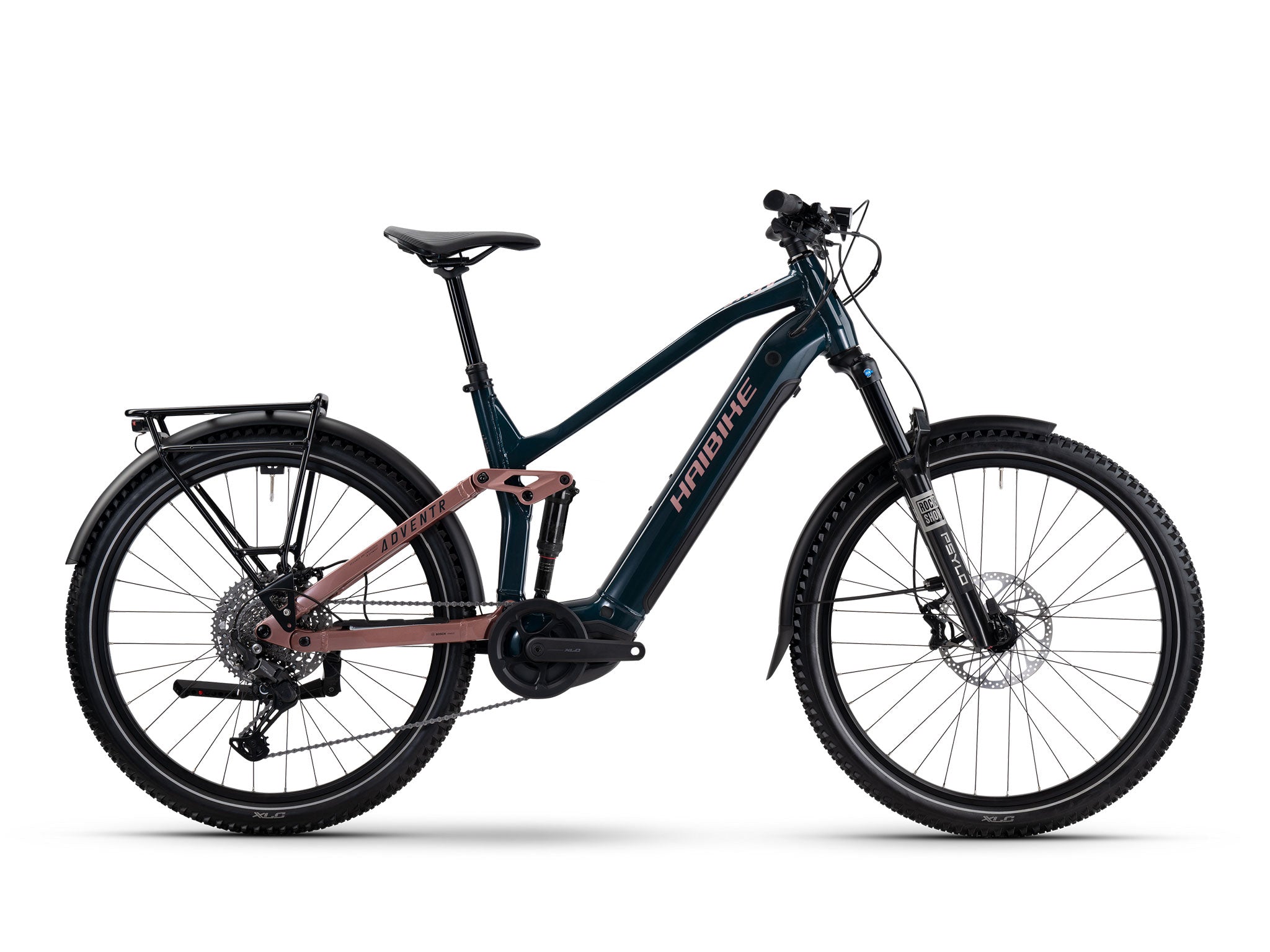

Adventr 8.5

From city life to wilderness and back again. The HAIBIKE ADVENTR 8.5 bridges the gap between reliable trekking eBike and comfortable full-suspension eMTB. Based on the same frame platform as our off-road ALLTRAIL models, this bike transforms even the dullest commute into a vibrant woodland adventure. The sporty spec helps too: the Bosch Performance Line CX motor powers you through headwinds, the 800Wh battery gives you maximum energy for daily rides, and with 140mm front and 130mm rear travel, this SUV eBike keeps you steady even on rough gravel tracks. Naturally, a sturdy rear rack is included. The perfect choice for urban adventures and spontaneous off-road escapes.

E-bike components
Battery Capacity: 800 Wh
Battery Location: Powertube
Motor Torque [nm]: 85 Nm (120Nm rider option)
Motor Location: Center
Battery Description: Bosch, InTube 800Wh
Charger Description: Bosch, Charger 2A 220-240V
Display Description: Bosch, Purion 200, Purion 200
Motor Description: Bosch, Performance Line CX,

Drivetrain
Cassette Teeth: 11-50T
Crank Arm length: 170
Crankset Teeth: 38T
Crankset Type: single
Pedal Inclusive: Yes
Cassette Description: Shimano, CUES CS-LG400-11, HG
Chain Description: KMC, Chain, eGlide with EPT Coating 9-11s
Chain Guide Description: Winning, WI-38L-95 Chainguide
Crankset Description: Samox, CR-E18 CRNKS + Chainring CR-E15 BDU38 + Bashring
Derailleur Hanger Description: Glory Wheel, UDH
Derailleur Rear Description: Shimano, CUES RD-U6000 10/11s, Shadow+
Gear Description: Shimano, Derailleur, CUES
Pedal Description: XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
Shifter Right Description: Shimano, Triggershift, CUES SL-U6000-11R, Rapidfire+

Wheels and wheel components
Hub Front Description: XLC, HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
Hub Rear Description: XLC, HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
Mudguard Front Description: Curana, Apollo 75, extra matte black
Mudguard Rear Description: Curana, Apollo 75, extra matte black
Rim Description: XLC, WR-M17 Disc 25/584 32H 6,5 mm Valve
Rim Rear Description: XLC, WR-M17 Disc 25/584 32H 6,5 mm Valve
Spoke Description: Sapim, Race Dia. 2.0, J-Bend
Tyre Description: XLC, VT-T45 Toorak, 60-584
Tyre Rear Description: XLC, VT-T45 Toorak
Wheelsize Description: 27.5, 27.5

Brake system
Brake Front Mount: Post Mount
Brake Rear Mount: Post Mount
Brake Front Description: Tektro, Hydraulic Disc brake, HD-M535, 4 pistons, resin pad, 203 mm
Brake Rear Description: Tektro, Hydraulic Disc brake, HD-M535, 4 pistons, resin pad, 203 mm
Brake Lever Description: Tektro, HD-M535-BL
Brake Rotor Description: Tektro, TRP RS01E 203 mm, 6 bolt Disc

Carrier
Max Weight Carrier Rear: 15 kg
Carrier Rear Description: Easylife, MIK, System luggage carrier

Handlebar and Saddle
Handlebar Diameter: 31.8 mm
Handlebar Material: Aluminium
Handlebar Rise: 25
Handlebar Width: 740 mm
Seatpost Material: Aluminium
Seatpost Travel (mm):
· 125 mm
· 150 mm
· 170 mm
Stem Length: 70 mm
Handgrip Description: XLC, MTB Grip Set VLG-1751D2
Handlebar Description: XLC, Riser Bar, HB-C32, Dia. 31.8 mm, Rise: 25 mm, backsweep 15°
Headset Description: Acros, Semi-integrated, Blocklock 135° AZX-220-R4 ZS44/ZS56
Saddle Description: XLC, Sport Comfort SA-S11 Steel Rail 155 mm
Seatpost Description: XLC, Dropperpost, Dropper SP-T21, Dia. 34.9 mm, Travel: 125 mm, 399 mm
Stem Description: XLC, ST-M36, Dia. 31.8 mm, L: 70 mm, A-Head

Bike Geometry
Bottom bracket drop [mm]: 25 mm
Chain stay length [mm]: 465 mm
Fork total length [mm]: 44 mm
Head tube angle: 66 degrees
Head tube length [mm]:
· 140 mm
· 155 mm
· 170 mm
· 185 mm
Reach [mm]:
· 421 mm
· 433 mm
· 449 mm
· 465 mm
Stack [mm]:
· 632 mm
· 645 mm
· 659 mm
· 673 mm
Stand over height [mm]:
750 mm
Seat tube angle:
75 degrees
Seat tube length [mm]:
· 405 mm
· 435 mm
· 465 mm
· 485 mm
Top tube length [mm]:
· 575 mm
· 590 mm
· 610 mm
· 630 mm
Wheelbase [mm]:
· 1204 mm
· 1221 mm
· 1244 mm
· 1266 mm
