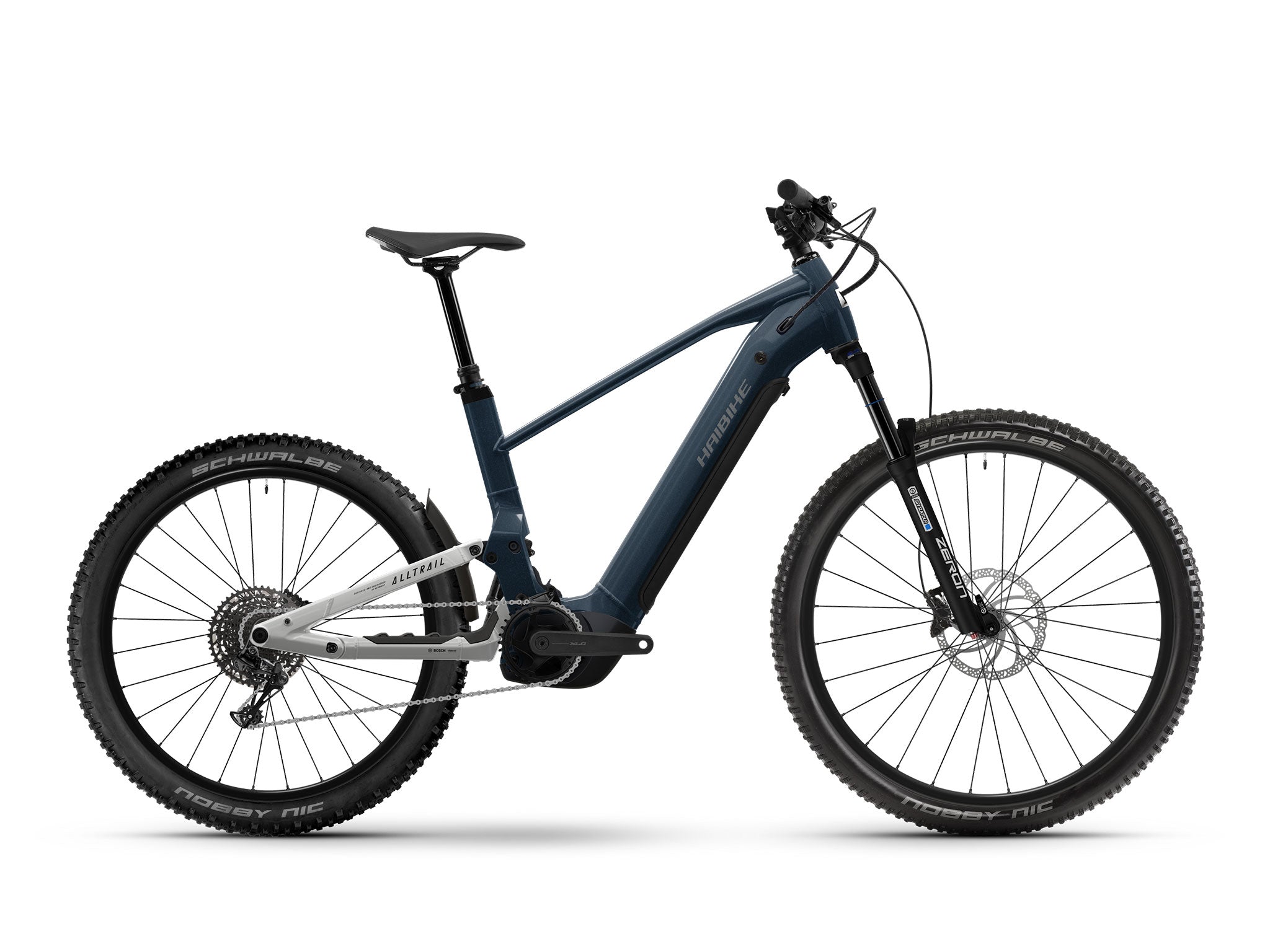

Alltrail 4

This Haibike Alltrail 4 bridges the gap between hardtail and full-suspension trail bike – perfect for anyone seeking comfort without going full enduro. With 130mm travel front and rear, the SR Suntour suspension offers just the right amount of control and riding fun. The latest Bosch Performance Line CX motor with 100Nm of torque and a 600Wh battery provide powerful, lasting support for your tours. The mullet wheel setup – 29" front, 27.5" rear – delivers smoothness and agility in one. A dropper seat post and reliable four-piston disc brakes complete the package.

E-bike components
Battery Capacity:
600 Wh
Battery Location:
Powertube
Motor Torque [nm]:
85 Nm
Motor Location:
Center
Battery Description:
Bosch, InTube 600 Wh
Charger Description:
Bosch, Charger 4A 220-240V
Display Description:
Bosch, Purion 200, Purion 200
Motor Description:
Bosch, Performance Line CX, Performance Line CX

Brake system
Brake Front Mount:
Post Mount
Brake Rear Mount:
Post Mount
Brake Front Description:
Tektro, Hydraulic Disc brake, HD-M535, 4 pistons, resin pad, 203 mm
Brake Rear Description:
Tektro, Hydraulic Disc brake, HD-M535, 4 pistons, resin pad, 203 mm
Brake Lever Description:
Tektro, HD-M535-BL
Brake Rotor Description:
Tektro, TR203-53 203 mm, 6 bolt Disc

Drivetrain
Cassette Teeth:
11-50T
Crank Arm length:
165
Crankset Teeth:
36T
Crankset Type:
single
Pedal Inclusive:
Yes
Cassette Description:
Sram, PG-1210 Eagle, HG
Chain Description:
Sram, Chain, NX Eagle 12s
Chain Guide Description:
Winning, WI-38L-95 Chainguide
Crankset Description:
XLC, CR-E18 Crankarms + SRAM CR T-Type Bosch DU38, DM
Derailleur Hanger Description:
Glory Wheel, UDH
Derailleur Rear Description:
Sram, NX Eagle 12s
Gear Description:
Sram, Derailleur
Pedal Description:
XLC, Flat Pedal PD-M29 w/ Reflector + integrated Pins
Shifter Right Description:
Sram, Triggershift, SX Eagle Single Click Trigger

Handlebar and Saddle
Handlebar Diameter:
31.8 mm
Handlebar Material:
Aluminium
Handlebar Rise:
20
Handlebar Width:
780 mm
Seatpost Material:
Aluminium
Seatpost Travel (mm):
· 100 mm
· 125 mm
· 150 mm
Stem Length:
40 mm
Handgrip Description:
XLC, MTB Grip Set VLG-1751D2
Handlebar Description:
XLC, Riser Bar, HB-M32, Dia. 31.8 mm, Rise: 20 mm, backsweep 9°
Headset Description:
Acros, Semi-integrated, BlockLock 135° AZX-220-R4 ZS44/ZS56
Saddle Description:
XLC, SA-S10 143 mm Sport
Seatpost Description:
XLC, Dropperpost, Dropper SP-T21, Dia. 34.9 mm, Travel: 100 mm, 395 mm
Stem Description:
XLC, ST-M50, Dia. 31.8 mm, L: 40 mm, A-Head

Wheels and wheel components
Hub Front Description:
XLC, HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
Hub Rear Description:
XLC, HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
Rim Description:
XLC, WR-M39 Disc 30/622 32H 6,5 mm Valve
Rim Rear Description:
XLC, WR-M37 Disc 30/584 32H 6,5 mm Valve
Spoke Description:
Sapim, Race Dia. 2.0, J-Bend
Tyre Description:
Schwalbe, Nobby Nic Performance, Folding, ADDIX, 67EPI, 62-622
Tyre Rear Description:
Schwalbe, Nobby Nic Performance, Folding, ADDIX, 67EPI
Wheelsize Description:
29, 27.5
