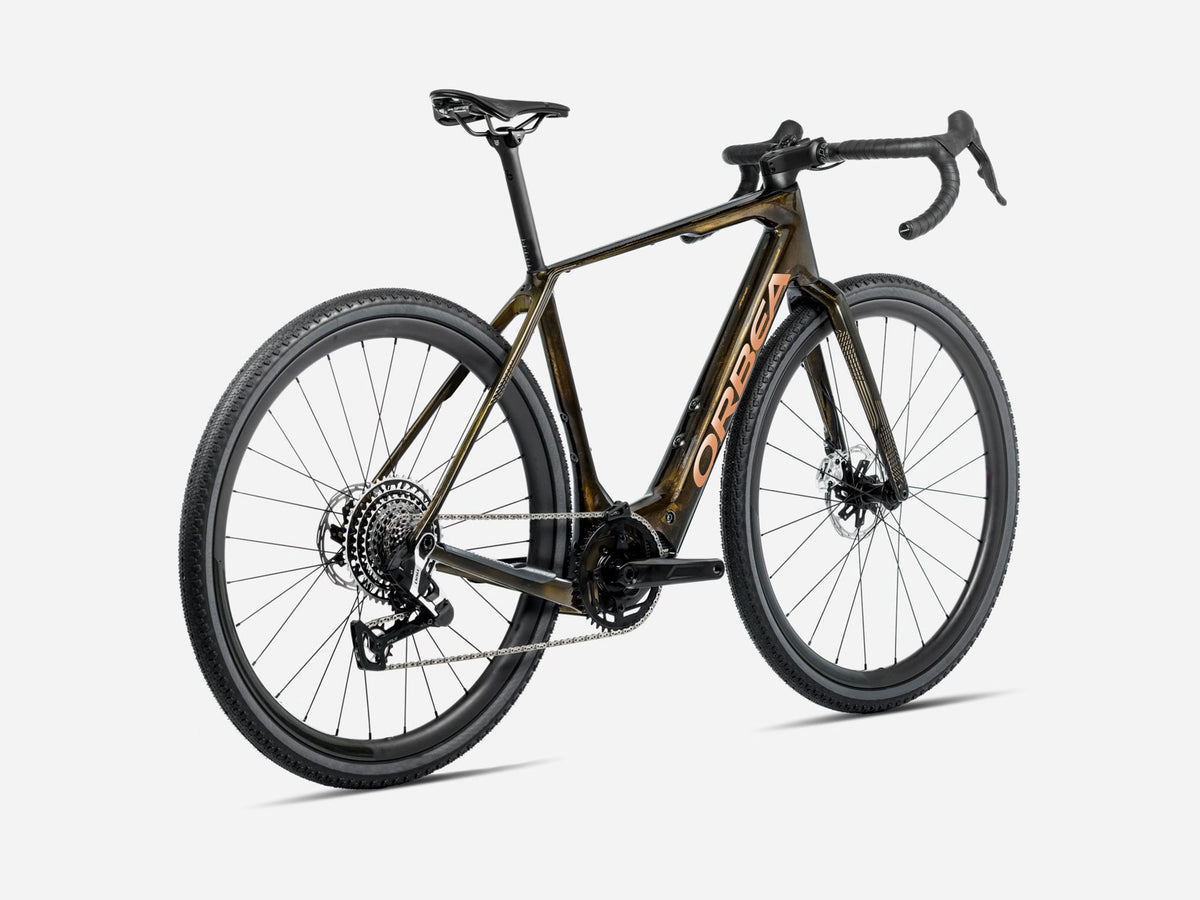

The Orbea Denna M31e is all about removing limits. Gravel-tuned assistance offers power for the steepest climbs, and range for the longest rides. Wide tire clearance and a frame designed for a smooth ride make big days in the saddle a pleasure.

SRAM Rival,1x12 drivetrain.

OQUO RC25 TEAM Wheelset.

Shimano EP801RS-Gravel motor with 420 Wh battery

Visit our Orbea electric bike showroom and we'll guide you through the various options, answer any questions, and let you test ride the bikes that interest you.

Our aim is to make buying your electric bike an enjoyable, memorable and rewarding and experience.

Frame
Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.

Fork
Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1

Steerer tube
FSA 1-1/2" Integrated Aluminium Cup

Battery
Orbea Internal 420Wh

Motor
Shimano EP801

Display
N/A

Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A

Remote
EN600-L

Chainring
Alloy EP8 42t

Crank
Shimano Steps EM600

Shifters
Sram Rival eTap AXS

Cassette
Sram XG-1251 XPLR 10-44t 12-Speed

Rear derailleur
Sram Rival XPLR eTAP AXS

Chain
Sram Rival 12-Speed

Orbea eBike chainguide

Handlebar
Easton EC90 AX Carbon, flare 16º, Di2 internal routing

Stem
OC Road Performance RP10, -8º

Brakes
Sram Rival eTap AXS

Brakes Configuration
N/A

Wheels
Oquo Road Control RC25TEAM

Tyres
Vittoria Terreno Dry Gravel G2.0 TLR 700x45c

Front Wheel Axle
Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Wheel Axle
Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Seatpost
OC Performance XP10 Carbon, 27.2mm, Setback 0

Saddle
Selle San Marco Shortfit 2.0 Start Up Off Road Xilite

Mudguard
N/A

Handlebar Tape
Orbea Anti-Slippery/Shock Proof
